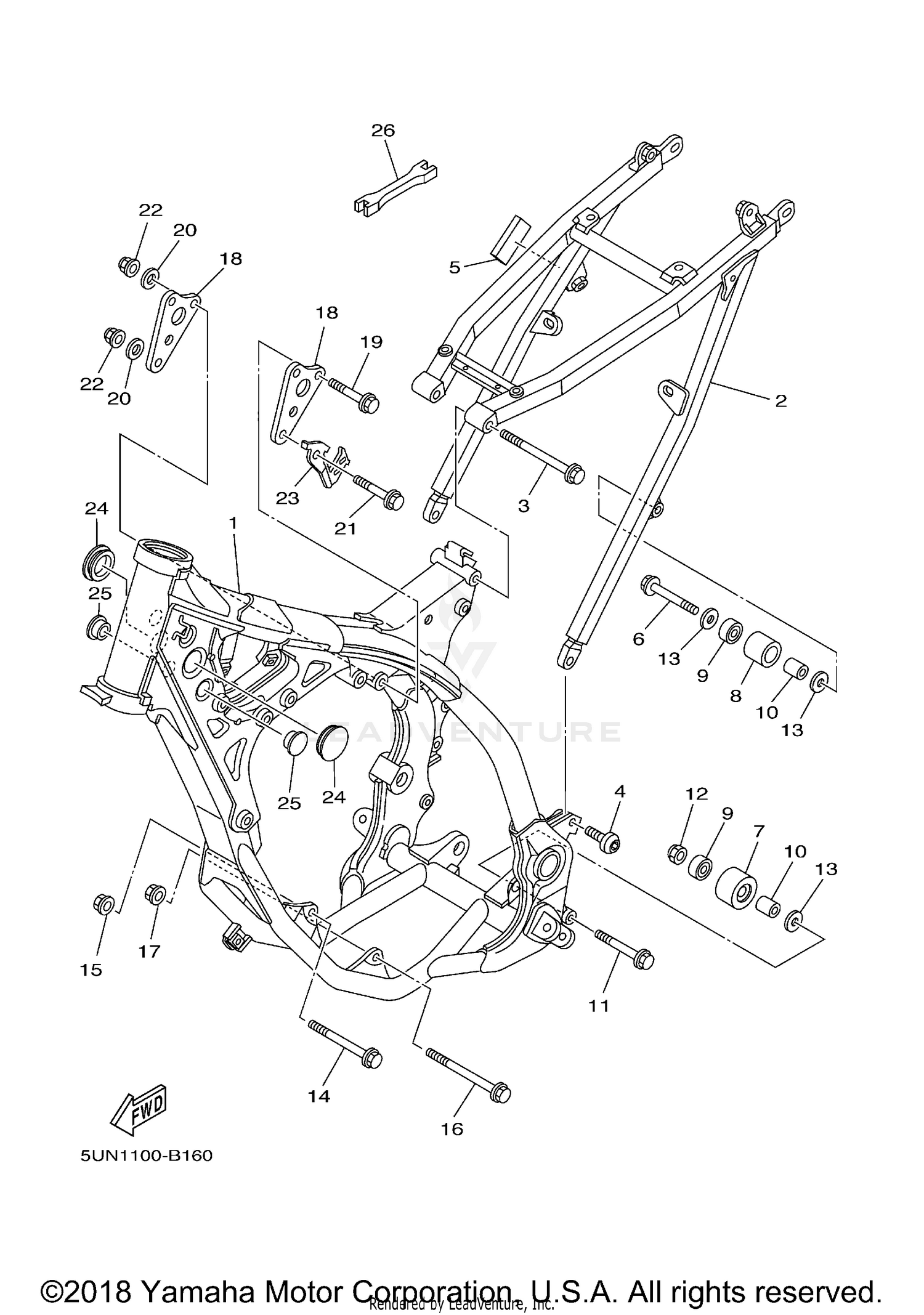

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
5UN-21101-00-00
|
$1,378.99 | ||
|
Unavailable |
|||
|
#2
REAR FRAME COMP.
5UN-21190-00-00
Superseded by 5XE-21190-00-00
|
$477.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WASHER BASED (90105-08022
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-08096-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
5GJ-21717-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95027-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
TENSIONER
3JD-22178-10-00
Superseded by 3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TENSIONER
4EW-22178-00-00
Superseded by 4EW-22178-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-08055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCKING
90185-08055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95817-10090-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-10002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-10733-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
90185-10002-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
BRACKET, REAR UPPER 1
5NY-21425-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95817-08050-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WASHER BASED
90105-08494-00
Superseded by 90105-08225-00
|
$1.55 | ||
|
Unavailable |
|||
|
#22
NUT, SELF-LOCKING
90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, C.D.I. UNIT
5UN-21274-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#24
PLUG
90338-30256-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG
90338-21145-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WRENCH, HEXAGON
5ET-28166-00-00
Superseded by 5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
