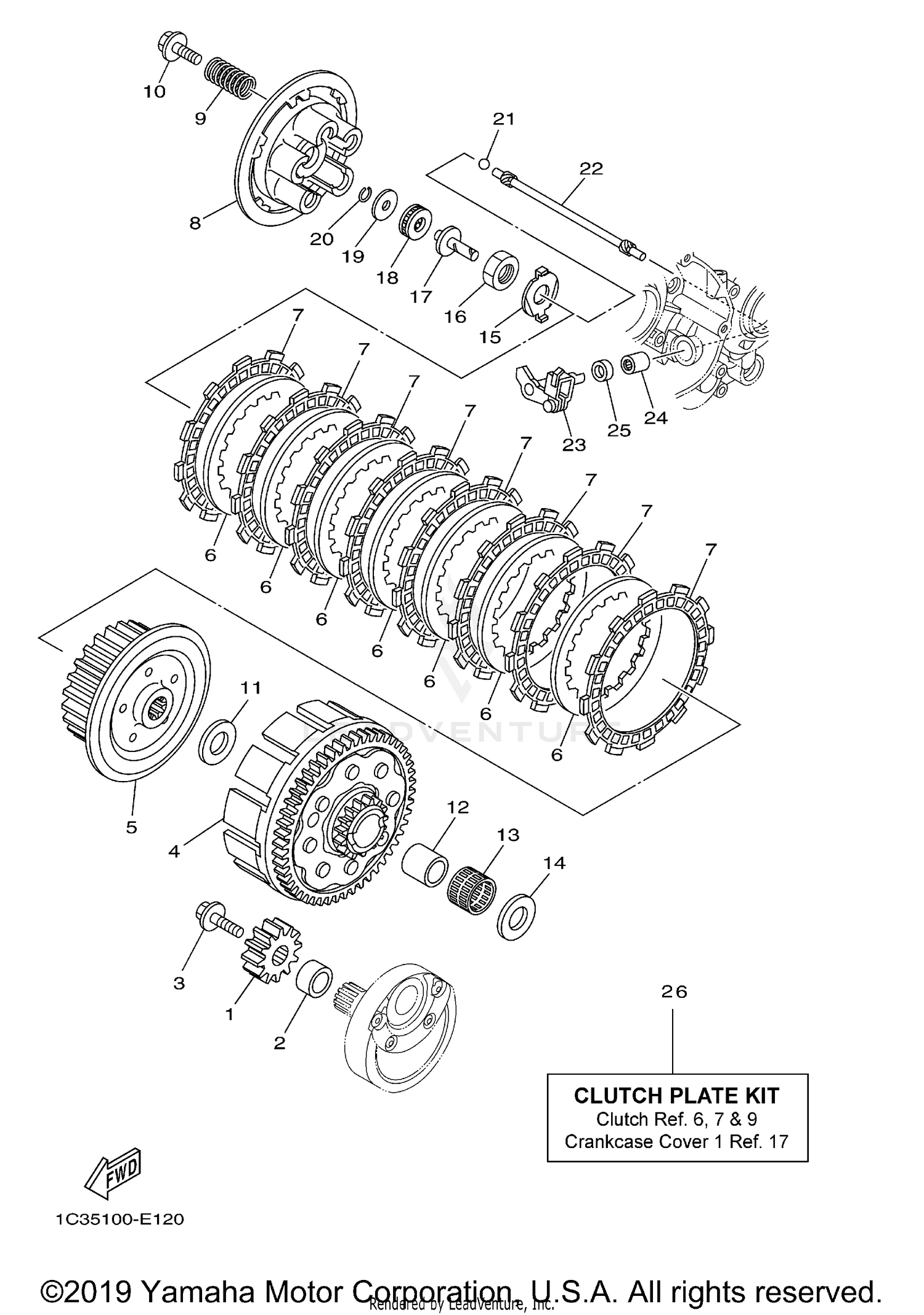

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
1C3-16111-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-172K2-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-08071-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRIMARY DRIVEN GEAR COMP.
1C3-16150-00-00
|
$307.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOSS, CLUTCH
5NY-16371-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH 1
3XJ-16324-01-00
Superseded by 3XJ-16324-10-00
|
$13.49 | ||
|
Unavailable |
|||
|
#7
PLATE, FRICTION
3XJ-16321-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, PRESSURE 1
5HD-16351-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-23598-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, WITH WASHER
90159-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-20611-00
Superseded by 90201-204K8-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER 1
1C3-16181-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93310-22539-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-20611-00
Superseded by 90201-204K8-00
|
$9.99 | ||
|
Unavailable |
|||
|
#15
WASHER, LOCK
90215-16289-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-16326-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 1
5NL-16356-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93340-21008-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-080H1-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93440-07182-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
93511-32027-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD, PUSH 2
1C3-16357-10-00
Superseded by 1C3-16357-11-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PUSH LEVER ASSY
1C3-16380-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93315-11040-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-10008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLUTCH PLATE KIT
1C3-W001G-00-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
