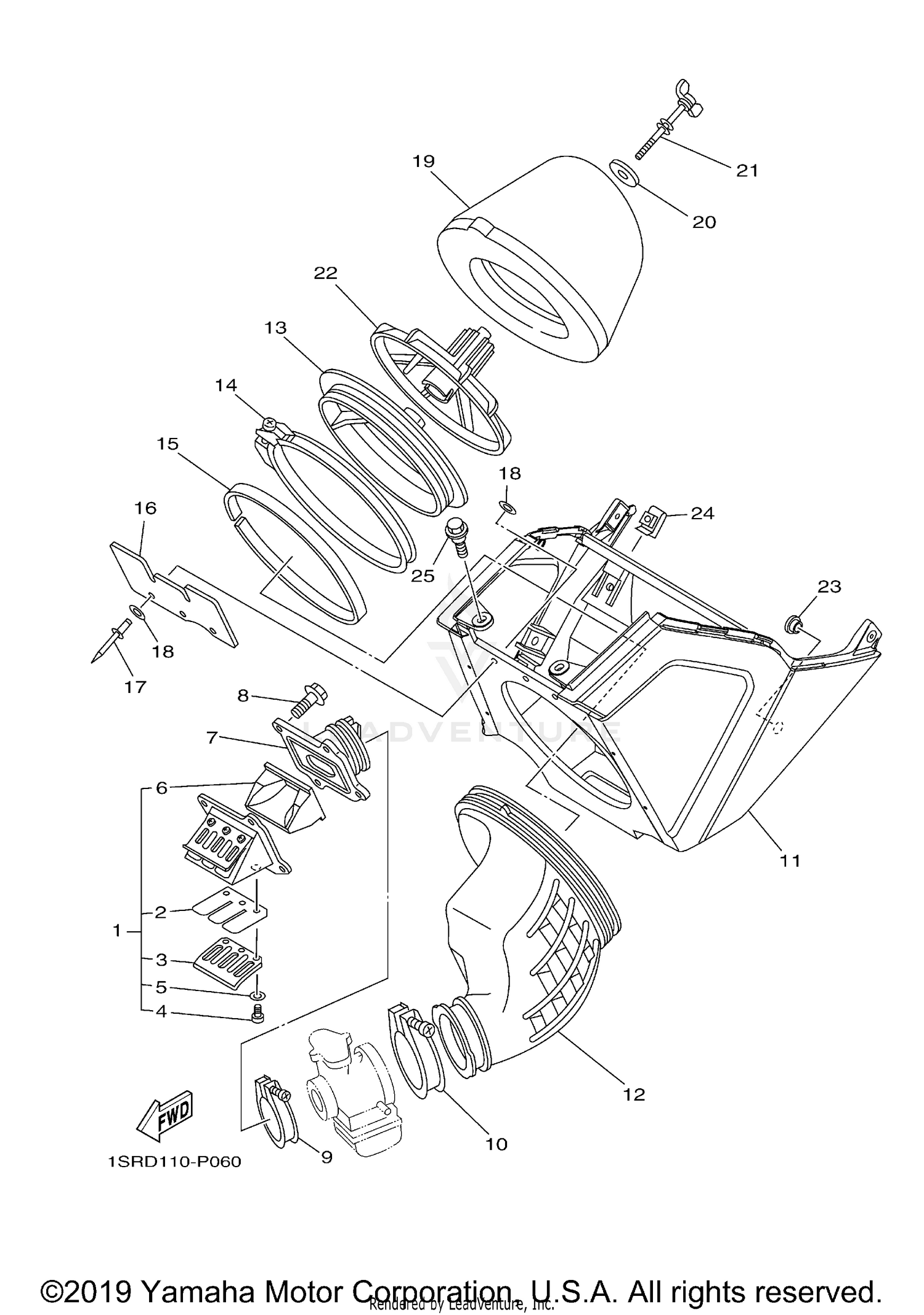

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSY
1C3-13610-20-00
|
$315.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
5UN-13613-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
5MV-13616-10-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98502-03006-00
Superseded by 98580-03006-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92902-03100-00
Superseded by 92990-03100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, REED VALVE
1C3-13625-10-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, CARBURETOR
1C3-13565-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95022-06020-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE CLAMP ASSY
90450-54007-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-70002-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AIR CLEANER CASE ASSY
1SS-14401-00-00
|
$195.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, AIR CLEANER 1
1C3-14453-10-00
Superseded by 1C3-14453-11-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, GUIDE
5NY-14459-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND
5NY-14455-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
5NY-14442-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER 1
5NY-14417-00-00
Superseded by 5NY-14417-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIVET, BLIND
90267-32070-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-03313-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ELEMENT, AIR CLEANER
4XM-14451-00-00
Superseded by 4XM-14451-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
90209-06096-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WING
90122-06005-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE
3JD-14458-01-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-10M28-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, SPRING
90183-06023-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-06170-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
