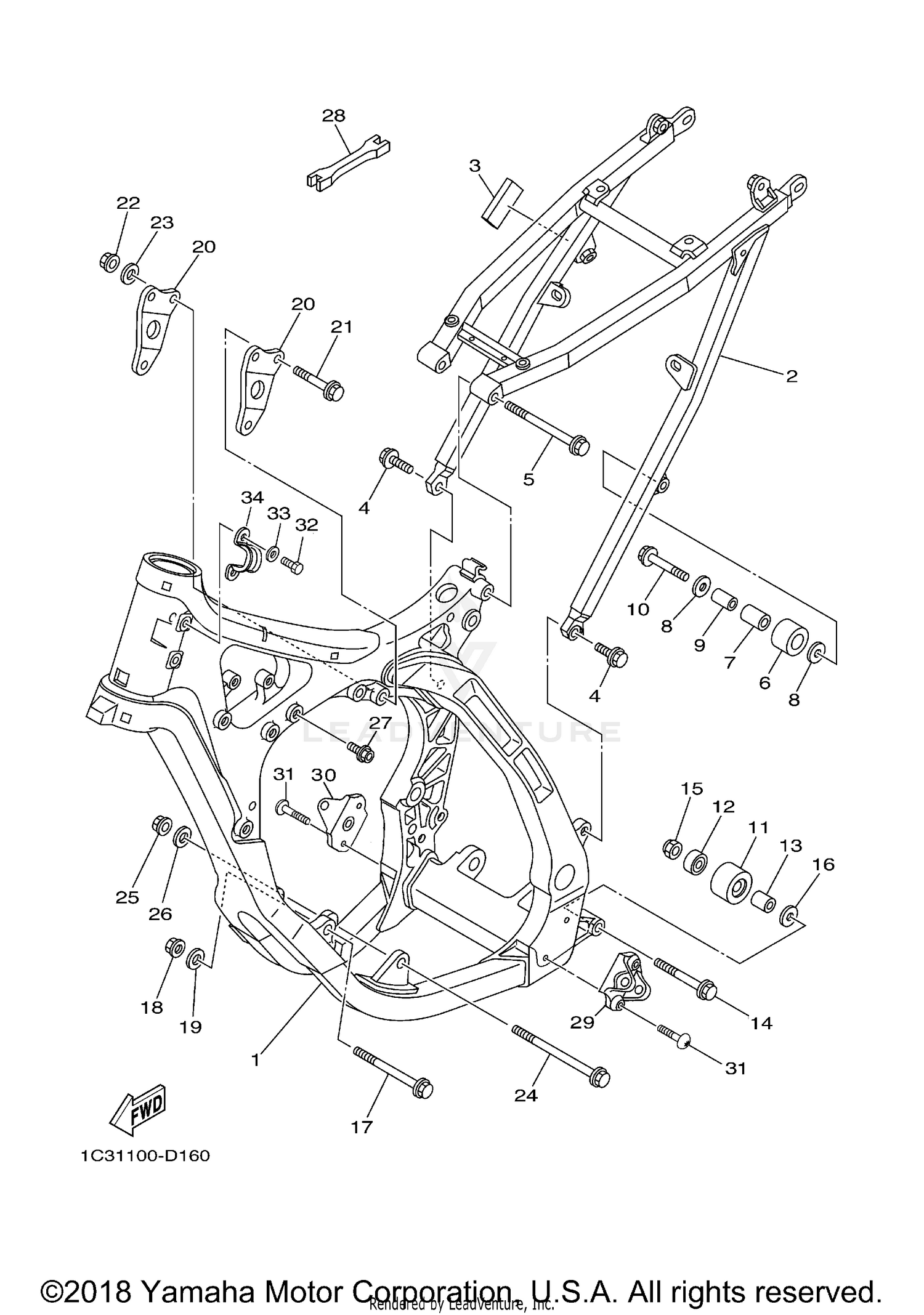

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
1C3-21101-00-00
|
$2,381.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR FRAME COMP.
1C3-21190-00-00
Superseded by 1C3-21190-90-00
|
$806.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER
5GJ-21717-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-08057-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WASHER BASED (90105-08022
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08039-00
Superseded by 90201-08045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-08027-00
Superseded by 90387-08041-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95027-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TENSIONER
3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95027-08055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-08055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-10080-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, REAR UPPER 1
1C3-21425-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-08059-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-08674-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-10072-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Unavailable |
|||
|
#27
NUT
1C3-21244-00-00
Superseded by 1C3-21244-20-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WRENCH, HEXAGON
5ET-28166-00-00
Superseded by 5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, FOOTREST
1C3-21447-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET, FOOTREST 2
1C3-21448-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
90149-10022-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEXAGON
97017-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
92904-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP, WIRE HARNESS 2
1C3-21336-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
