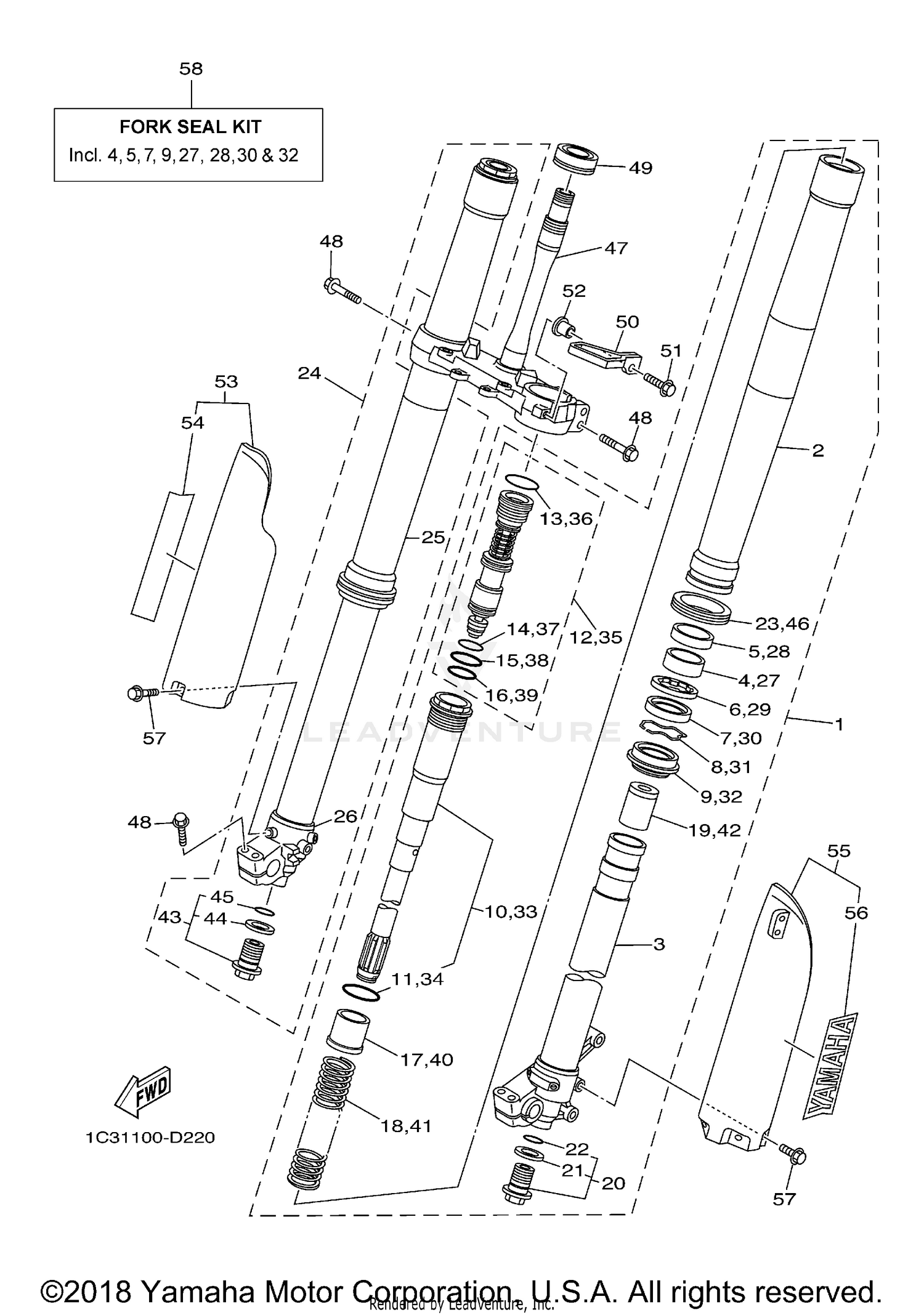

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
1C3-23102-00-00
|
$1,116.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER
1C3-23136-L0-00
|
$759.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP. 2
1C3-23120-L0-00
|
$450.99 | ||
|
Unavailable |
|||
|
#4
PISTON, FRONT FORK
5XE-23171-L0-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
5XE-23125-L0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
5XE-23146-L0-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
1C3-23145-L0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
5XE-23153-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5XE-23144-L0-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
1C3-23170-L0-00
|
$784.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.35 | ||
|
Unavailable |
|||
|
#12
VALVE COMP.
1C3-2316A-L0-00
|
$463.99 | ||
|
Unavailable |
|||
|
#13
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$2.40 | ||
|
Unavailable |
|||
|
#14
O-RING
5UX-23188-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
43F-23188-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
1C3-23188-M0-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER
1C3-23118-L0-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, FRONT FORK (K=4.1N/
1C3-23141-L0-00
|
$113.99 | ||
|
Unavailable |
|||
|
#19
SPACER
1C3-2316E-L0-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, CAP
1C3-23111-L0-00
Superseded by 1C3-23111-L1-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
2HH-23158-L0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTER GUIDE COMP., 1
1C3-2314F-L0-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FRONT FORK ASSY (R.H)
1C3-23103-00-00
|
$1,187.99 | ||
|
Unavailable |
|||
|
#25
TUBE, OUTER
1C3-23136-L0-00
|
$759.99 | ||
|
Unavailable |
|||
|
#26
INNER TUBE COMP. 1
1C3-23110-L0-00
|
$403.99 | ||
|
Unavailable |
|||
|
#27
PISTON, FRONT FORK
5XE-23171-L0-00
|
$25.99 | ||
|
Unavailable |
|||
|
#28
METAL, SLIDE 1
5XE-23125-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#29
WASHER, OIL SEAL
5XE-23146-L0-00
|
$12.99 | ||
|
Unavailable |
|||
|
#30
OIL SEAL
1C3-23145-L0-00
|
$30.99 | ||
|
Unavailable |
|||
|
#31
RING, SNAP
5XE-23153-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
SEAL, DUST
5XE-23144-L0-00
|
$21.99 | ||
|
Unavailable |
|||
|
#33
CYLINDER COMP., FRONT FORK
1C3-23170-L0-00
|
$784.99 | ||
|
Unavailable |
|||
|
#34
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.35 | ||
|
Unavailable |
|||
|
#35
VALVE COMP.
1C3-2316A-L0-00
|
$463.99 | ||
|
Unavailable |
|||
|
#36
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$2.40 | ||
|
Unavailable |
|||
|
#37
O-RING
5UX-23188-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
O-RING
43F-23188-10-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
O-RING
1C3-23188-M0-00
|
$5.99 | ||
|
Unavailable |
|||
|
#40
SPACER
1C3-23118-L0-00
|
$38.99 | ||
|
Unavailable |
|||
|
#41
SPRING, FRONT FORK (K=4.1N/
1C3-23141-L0-00
|
$113.99 | ||
|
Unavailable |
|||
|
#42
SPACER
1C3-2316E-L0-00
|
$23.99 | ||
|
Unavailable |
|||
|
#43
BOLT, CAP
1C3-23111-L0-00
Superseded by 1C3-23111-L1-00
|
$128.99 | ||
|
Unavailable |
|||
|
#44
GASKET
2HH-23158-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#45
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.10 | ||
|
Unavailable |
|||
|
#46
PROTECTER GUIDE COMP., 1
1C3-2314F-L0-00
|
$41.99 | ||
|
Unavailable |
|||
|
#47
UNDER BRACKET COMP.
1C3-23340-L0-00
|
$479.99 | ||
|
Unavailable |
|||
|
#48
BOLT 1
5NY-23346-L0-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#49
BEARING
93332-00081-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
GUIDE, CABLE
5XE-23389-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
COLLAR
5XE-23113-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
PROTECTER COMP., 2
1C3-2314J-00-00
Superseded by 1C3-2314J-10-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
Protecter Comp. 1
1C3-2314H-00-00
Superseded by 1C3-2314H-11-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.49 | ||
|
Unavailable |
|||
|
#57
BOLT 2
3SP-23356-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
FORK SEAL KIT
1C3-W003B-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
