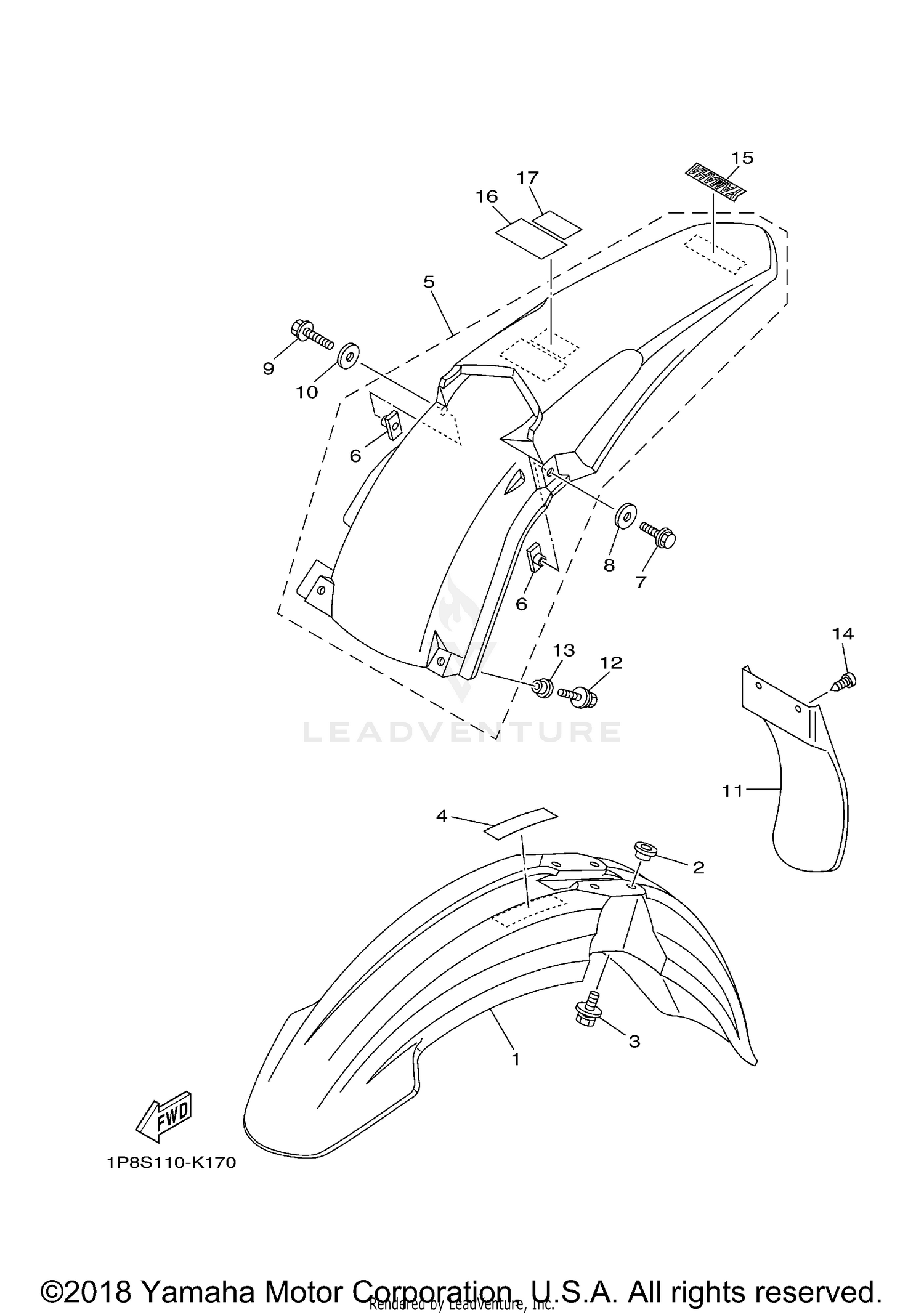

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1C3-21511-51-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06090-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06147-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
LABEL, CAUTION
3XJ-2415E-A1-00
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR FENDER COMP.
5XE-21610-10-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, REAR FENDER
5XE-21635-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06099-00
Superseded by 90105-06100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06032-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06101-00
Superseded by 90105-06102-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06033-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, FLAP
5TA-21642-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-06149-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06009-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97702-60016-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#15
EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
LABEL, CAUTION
5PA-2118K-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, COMPETITION USA
17D-2812P-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
