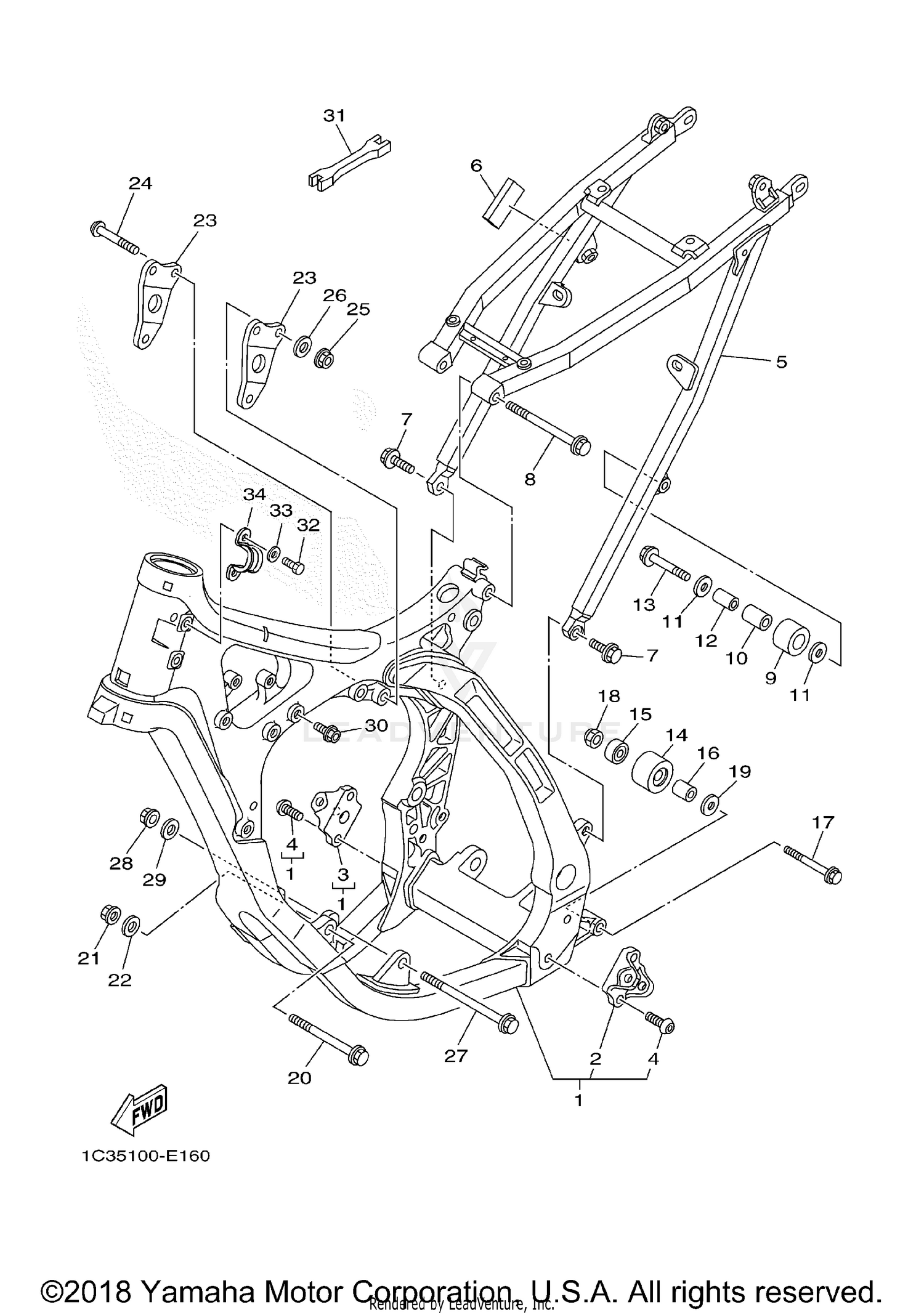

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
1C3-21101-50-00
|
$2,096.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FOOTREST
1C3-21447-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FOOTREST
1C3-21448-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-10031-00
Superseded by 90149-10033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#5
REAR FRAME COMP.
1C3-21190-50-00
Superseded by 1C3-21190-90-00
|
$806.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER
5GJ-21717-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-08085-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WASHER BASED (90105-08022
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-08045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-08041-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
TENSIONER
3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93300-60839-00
Superseded by 93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (SMALL HEAD)
95024-08055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U
90185-08009-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08043-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
90105-10080-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, REAR UPPER 1
1C3-21425-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. SOCKET BUTTON
90111-08028-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90179-08674-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-08055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
90105-10072-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Unavailable |
|||
|
#30
NUT
1C3-21244-10-00
Superseded by 1C3-21244-20-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WRENCH, HEXAGON
5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEXAGON
97017-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
92904-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP, WIRE HARNESS 2
1C3-21336-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
