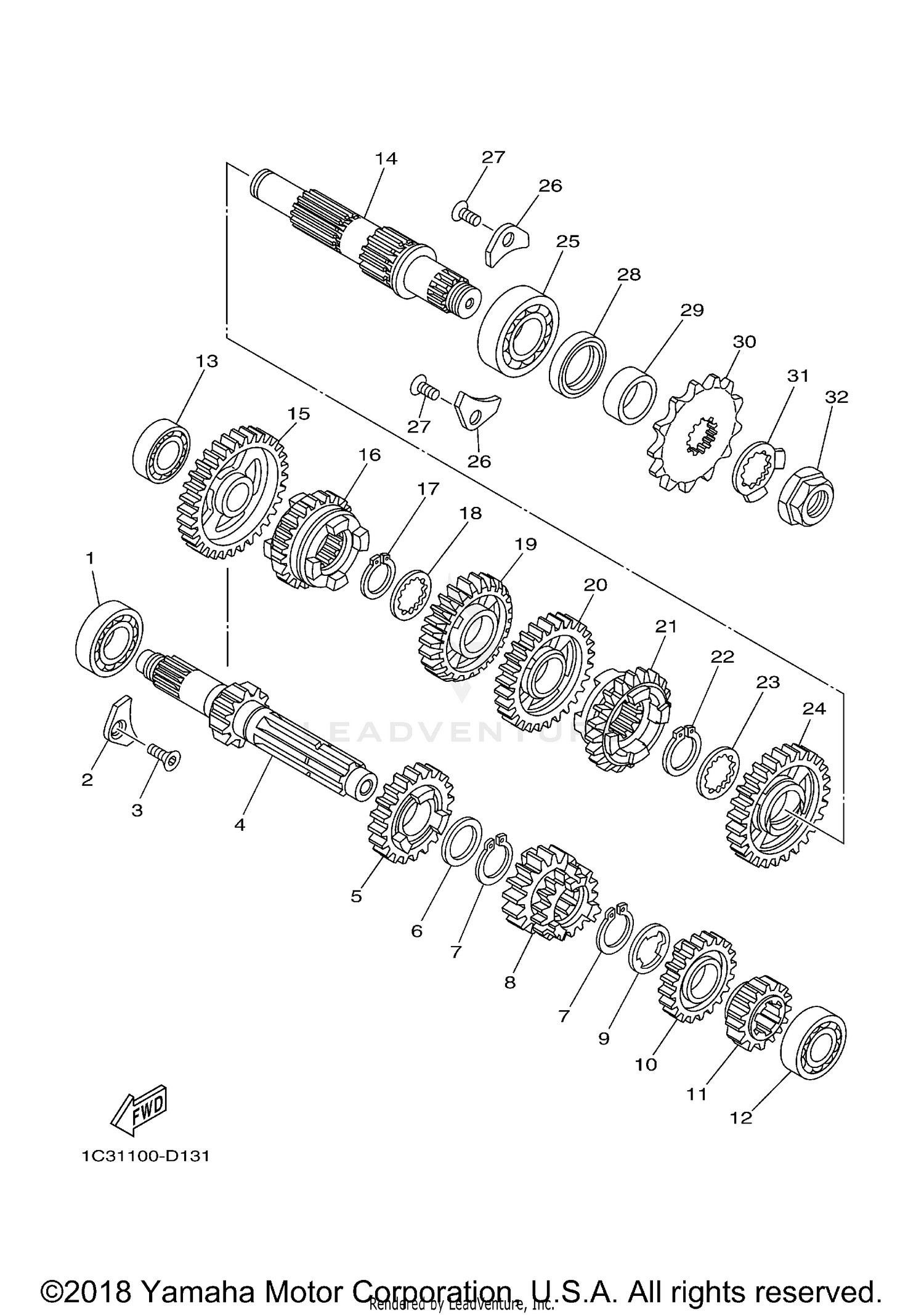

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93306-00442-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, BEARING COVER
4JT-15381-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
90149-06326-00
Superseded by 90151-06052-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
AXLE, MAIN (13T)
1C3-17411-10-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 6TH PINION (21T)
1C3-17161-10-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 3RD PINION (17T/17T)
1C3-17131-10-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
90209-18135-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 5TH PINION (20T)
1C3-17151-10-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, 2ND PINION (15T)
1C3-17121-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-20351-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-00326-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
AXLE, DRIVE
1C3-17421-00-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 1ST WHEEL (31T)
1C3-17211-10-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 6TH WHEEL (23T)
1C3-17261-10-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
WASHER
90209-20008-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 4TH WHEEL (23T)
1C3-17241-10-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 3RD WHEEL (27T)
1C3-17231-20-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 5TH WHEEL (24T)
1C3-17251-10-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP
93410-26067-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
90209-23012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 2ND WHEEL (29T)
1C3-17221-10-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93306-20447-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, BEARING COVER
4JT-15381-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#27
SCREW
90149-06326-00
Superseded by 90151-06052-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
OIL SEAL
93102-28012-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-22004-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPROCKET, DRIVE (13T)
9383B-13218-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, LOCK
90215-20003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
90179-18001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
