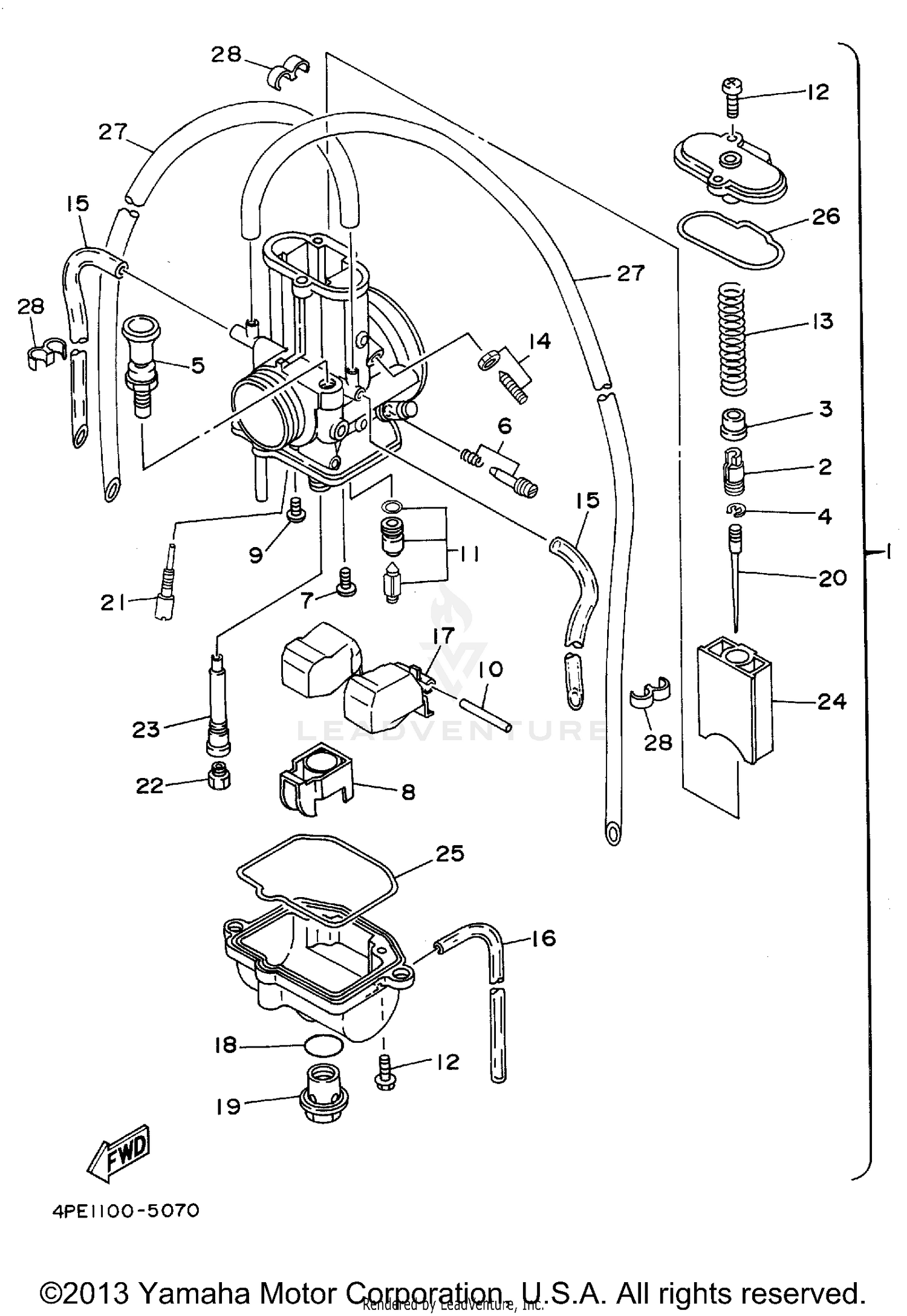

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARB ASY
4PE-14101-00-00
Superseded by 4PE-14101-01-00
|
$609.99 | ||
|
Unavailable |
|||
|
#2
HOLDER
4PE-14261-00-00
Superseded by 4PE-14261-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING
4PE-14194-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP
256-14919-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUNGER, STARTER
3JE-14171-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
AIR SCREW SET
3JD-14104-00-00
Superseded by 4GL-14104-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
1FN-14565-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
4PE-14243-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98507-04008-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, FLOAT
353-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE VALVE SET
4PE-14107-38-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW,PANHEAD
98507-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, THROTTLE VALVE
4PE-14131-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
THROTTLE SCREW SET
4PE-14103-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE
2HH-14197-00-00
Superseded by 2J2-14196-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE
3X3-14197-00-00
Superseded by 3XV-14348-20-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLOAT
4PE-14185-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#18
O-RING
3JE-14561-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG,SCREW
3XK-14115-00-00
Superseded by 4DP-14115-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE (6EG36-63)
3JD-14116-H0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#
NEEDLE (6EG36-61)
3JD-14116-H1-00
|
$13.99 | ||
|
Unavailable |
|||
|
#
NEEDLE (6EG36-62)
3JD-14116-H2-00
|
$11.49 | ||
|
Unavailable |
|||
|
#
NEEDLE (6EG36-64)
3JD-14116-H3-00
|
$13.99 | ||
|
Unavailable |
|||
|
#
NEEDLE (6EG36-65)
3JD-14116-H4-00
|
$12.49 | ||
|
Unavailable |
|||
|
#21
JET, PILOT (# 55)
4KM-14142-55-00
|
$6.49 | ||
|
Unavailable |
|||
|
#
JET, PILOT (#50)
4KM-14142-50-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT (#45)
4KM-14142-45-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT (# 60)
4KM-14142-60-00
|
$6.49 | ||
|
Unavailable |
|||
|
#
JET, PILOT (# 65)
4KM-14142-65-00
|
$5.99 | ||
|
Unavailable |
|||
|
#22
JET, MAIN (#330)
137-14143-66-A1
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (350)
137-14143-70-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (360)
137-14143-72-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (370)
137-14143-74-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#340)
137-14143-68-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (380)
137-14143-76-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#390)
137-14143-78-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NOZZLE, MAIN (Q-9)
3TC-14141-59-00
|
$16.49 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN (R-0)
3TC-14141-R0-00
|
$16.49 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN (Q-7)
3TC-14141-57-00
|
$25.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN (Q-8)
3TC-14141-58-00
|
$17.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN (R-1)
3TC-14141-R1-00
|
$40.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN (R-2)
3TC-14141-R2-00
|
$33.99 | ||
|
Unavailable |
|||
|
#24
VALVE,THROTTLE
4PE-14112-40-00
Superseded by 4PE-1411F-40-00
|
$289.99 | ||
|
Unavailable |
|||
|
#
VALVE,THROTTLE 3.5
4PE-14112-35-00
Superseded by 4PE-1411F-35-00
|
$198.99 | ||
|
Unavailable |
|||
|
#
VALVE,THROTTLE 4.5
4PE-14112-45-00
Superseded by 4PE-1411F-45-00
|
$189.99 | ||
|
Unavailable |
|||
|
#25
O-RING
4PE-1416A-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
4PE-14147-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#27
PIPE, AIR VENT
4PE-14197-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#28
CLIP
87M-14137-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
