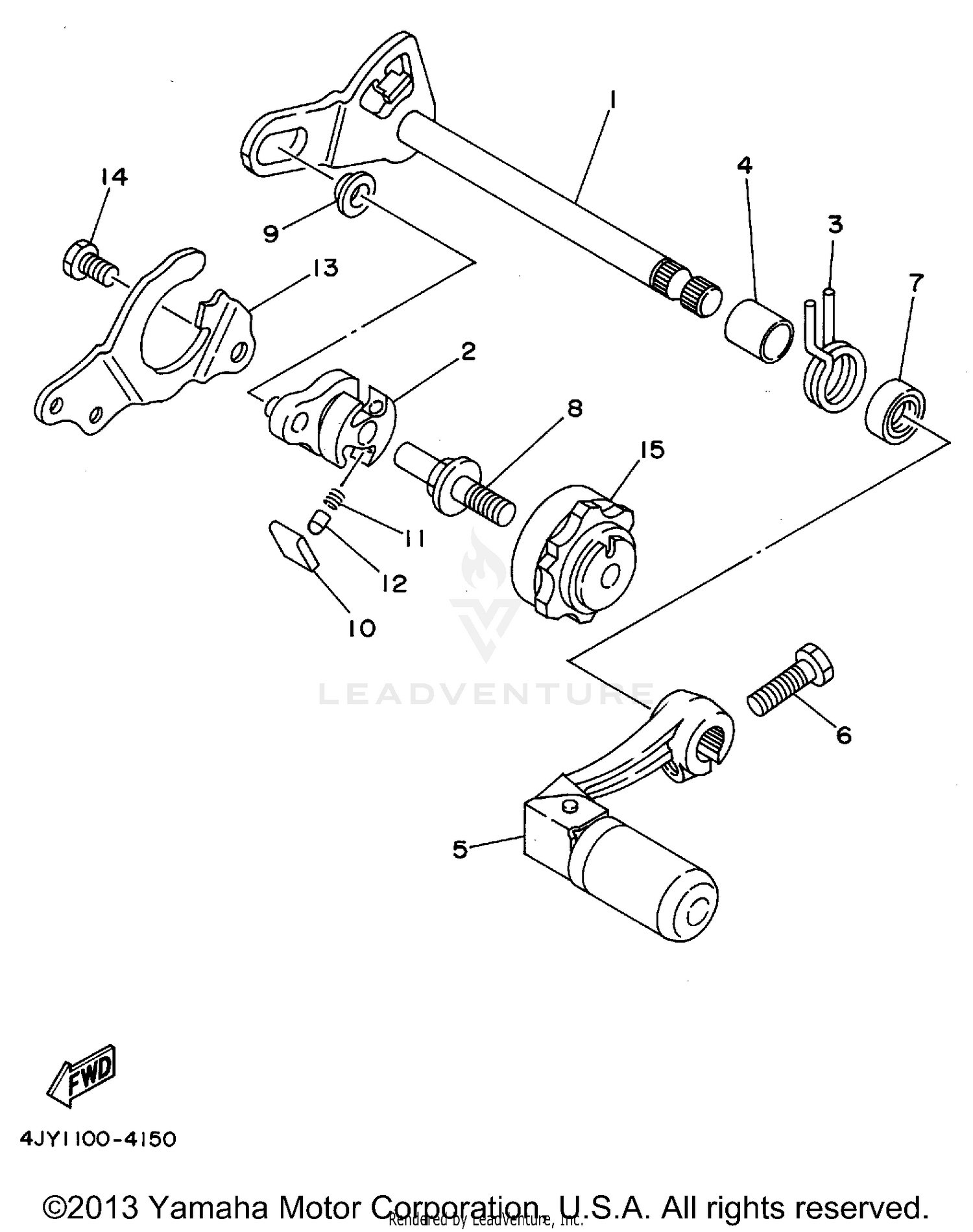

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT ASSEMBLY
4JY-18101-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#2
LEVER, SHIFT 2
3XJ-18122-00-00
Superseded by 5MV-18122-01-00
|
$63.99 | ||
|
Unavailable |
|||
|
#3
SPRING, TORSION
90508-295A7-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER
90560-12280-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIFT PEDAL ASSEMBLY
1LX-18110-02-00
|
$62.99 | ||
|
Unavailable |
|||
|
#6
BOLT
97027-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93109-12012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, SHIFT
3XJ-18173-00-00
Superseded by 3XJ-18173-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROLLER, SHIFT LEVER
3XJ-18178-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAWL, SHIFTER
3XJ-18182-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-052G5-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, PAWL
3XJ-18184-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, SHIFT
4JY-18172-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90101-06664-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEGMENT
4EW-18185-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
