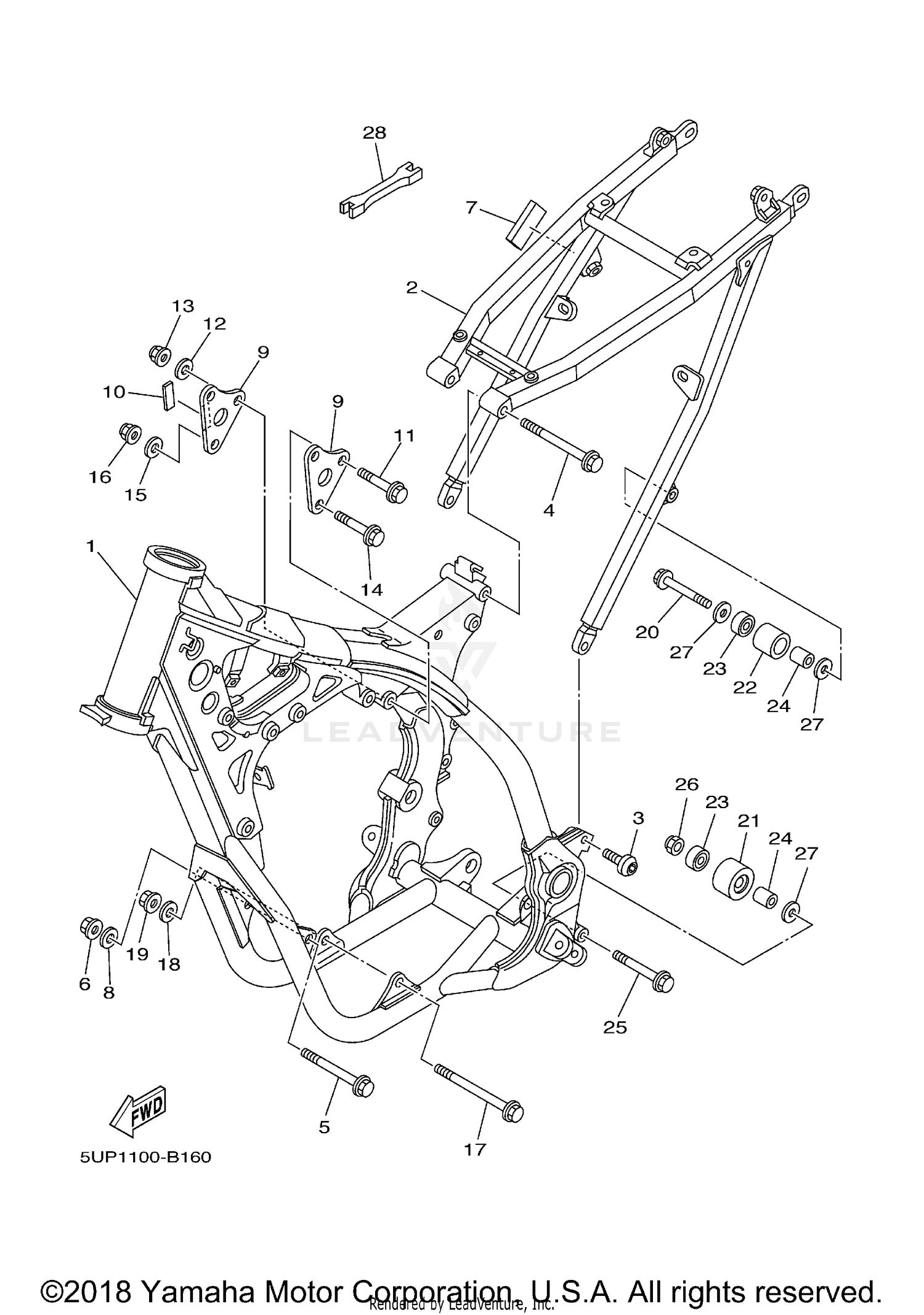

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
5XF-21101-00-00
|
$1,542.99 | ||
|
Unavailable |
|||
|
#2
REAR FRAME COMP.
5XE-21190-00-00
|
$477.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEX. SOCKET BUTTON
90111-08010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WASHER BASED (90105-08022
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-10075-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
5GJ-21717-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, REAR UPPER 1
5NX-21425-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
4GG-21488-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
90105-08059-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-08674-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-10074-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Unavailable |
|||
|
#16
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
90105-10072-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Unavailable |
|||
|
#19
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95027-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
TENSIONER
3JD-22178-10-00
Superseded by 3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
TENSIONER
4EW-22178-00-00
Superseded by 4EW-22178-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95027-08055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SELF-LOCKING
90185-08055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#28
WRENCH, HEXAGON
5ET-28166-00-00
Superseded by 5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
