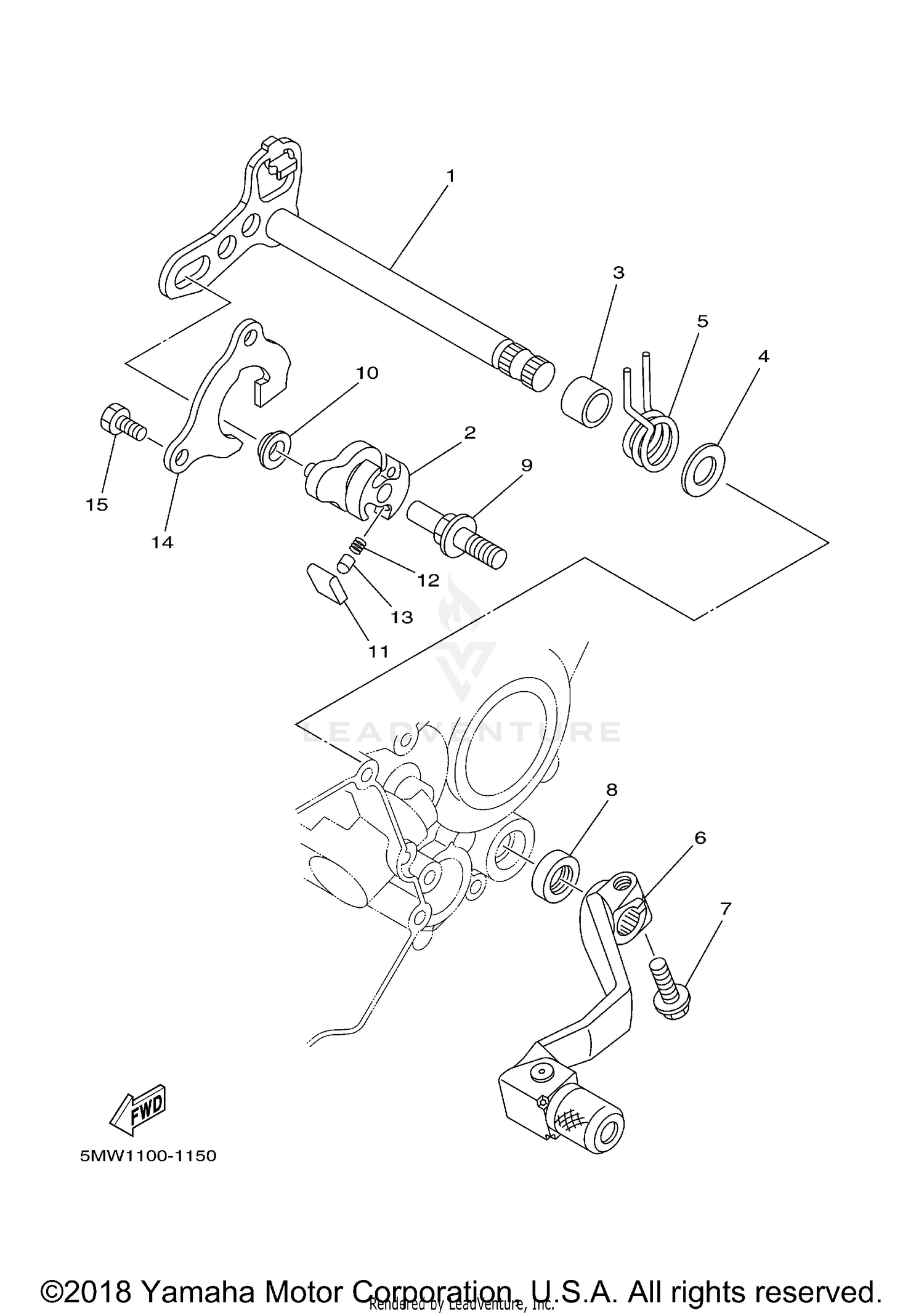

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT ASSY
5CU-18101-10-00
Superseded by 5CU-18101-11-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER, SHIFT 2
5MW-18122-00-00
Superseded by 5MW-18122-01-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-124F4-00
Superseded by 90387-12033-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-12575-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-291A8-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIFT PEDAL ASSY
5CU-18110-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93102-12224-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, SHIFT
3XJ-18173-00-00
Superseded by 3XJ-18173-10-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROLLER, SHIFT LEVER
3XJ-18178-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PAWL, SHIFTER
3XJ-18182-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
90501-052G5-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, PAWL
3XJ-18184-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, SHIFT
5CU-18172-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90109-065G4-00
Superseded by 90105-06109-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
