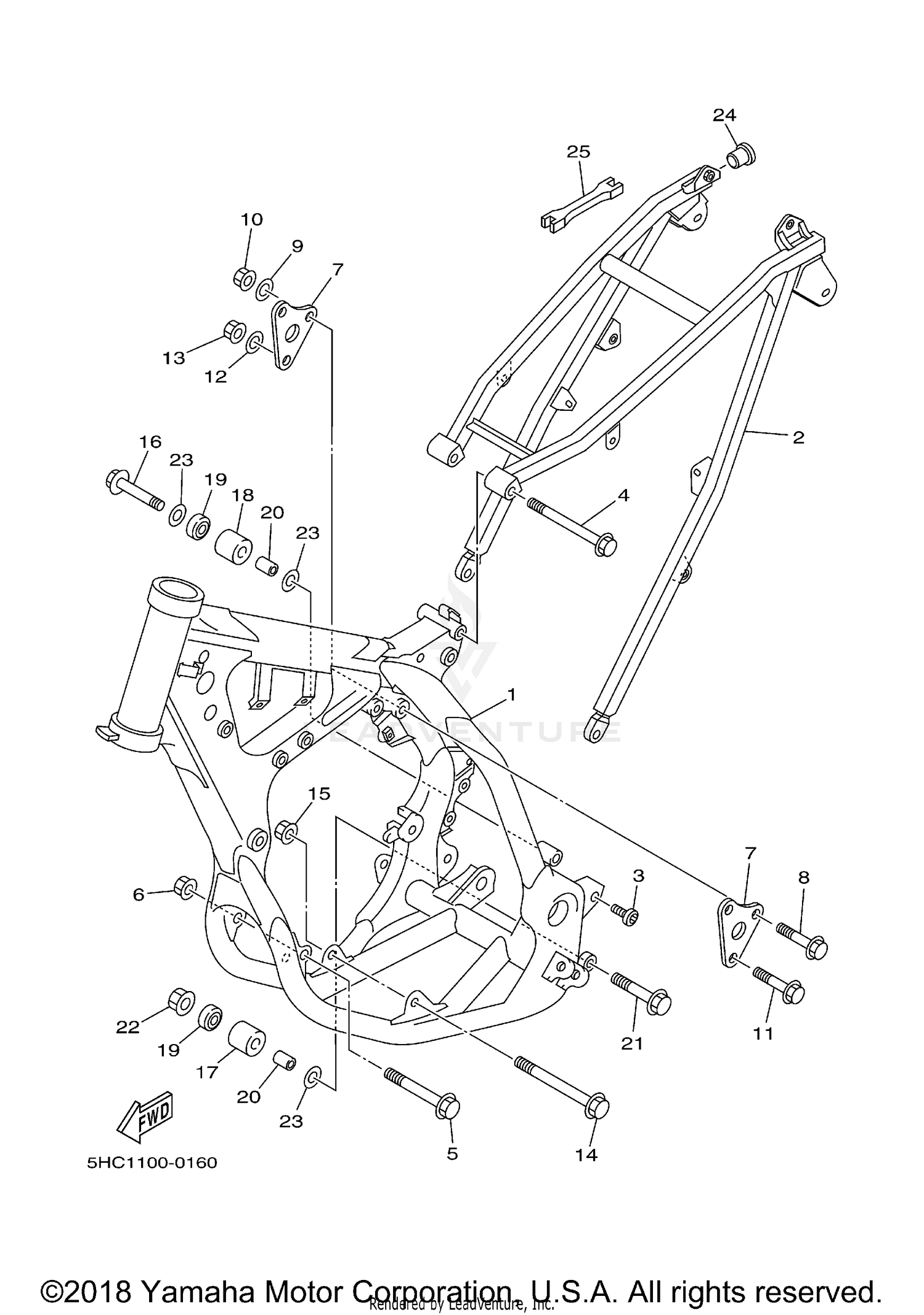

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
5MW-21101-00-P0
|
$1,573.99 | ||
|
Unavailable |
|||
|
#2
REAR FRAME COMP.
5HC-21190-00-P0
|
$574.99 | ||
|
Unavailable |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-08096-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WASHER BASED
90105-08099-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95817-10110-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, REAR UPPER 1
5CU-21425-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95817-08050-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95817-10050-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Unavailable |
|||
|
#14
BOLT,WASHER BASED
90105-10119-00
Superseded by 90109-101A0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95027-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
TENSIONER
3JD-22178-10-00
Superseded by 3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TENSIONER
4EW-22178-00-00
Superseded by 4EW-22178-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95027-08065-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG
90338-16148-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WRENCH, HEXAGON
5ET-28166-00-00
Superseded by 5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
