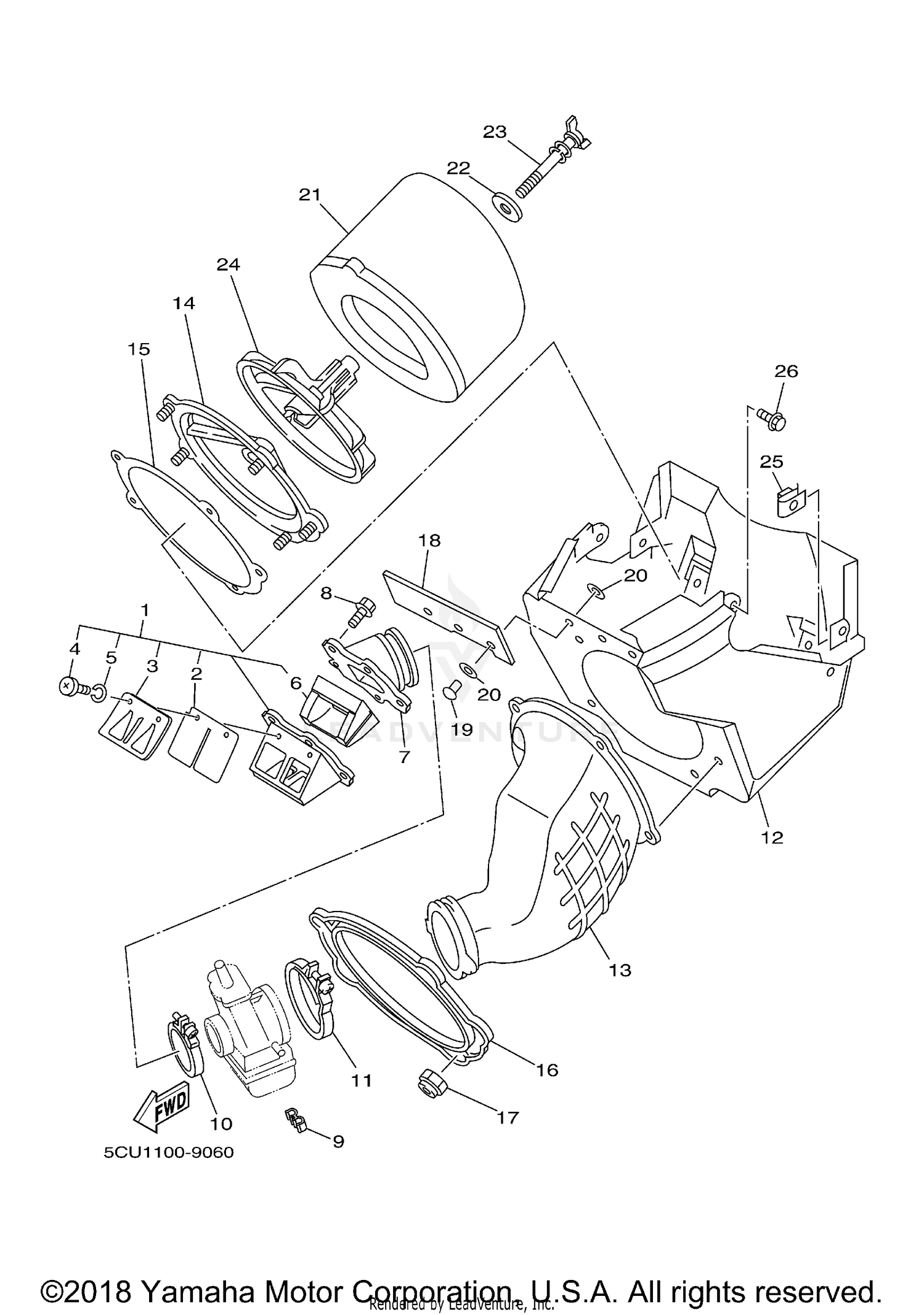

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSY
4XL-13610-00-00
|
$187.99 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
4XL-13613-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
4XL-13616-00-00
Superseded by 4XL-13616-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92907-03100-00
Superseded by 92990-03100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, REED VALVE
4XL-13625-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, CARBURETOR
5HC-13565-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-06214-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-51070-00
Superseded by 90450-51001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE CLAMP ASSY
90450-70072-00
Superseded by 90450-70002-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
AIR CLEANER CASE ASSEMBLY
4SS-14401-10-00
Superseded by 4SS-14401-02-00
|
$149.99 | ||
|
Unavailable |
|||
|
#13
JOINT, AIR CLEANER 1
5HC-14453-00-00
|
$91.75 | ||
|
Unavailable |
|||
|
#14
HOLDER, GUIDE
3JD-14459-01-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL
3JD-14462-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE
5MV-14477-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#17
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER 1
4SS-14417-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#19
RIVET, BLIND
90267-32070-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-03313-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ELEMENT, AIR CLEANER
4XM-14451-00-00
Superseded by 4XM-14451-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-06096-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, WING
90122-06035-00
Superseded by 90122-06005-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE
3JD-14458-01-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SPRING
90183-06023-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WITH WASHER
90119-06203-00
Superseded by 90119-06117-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
