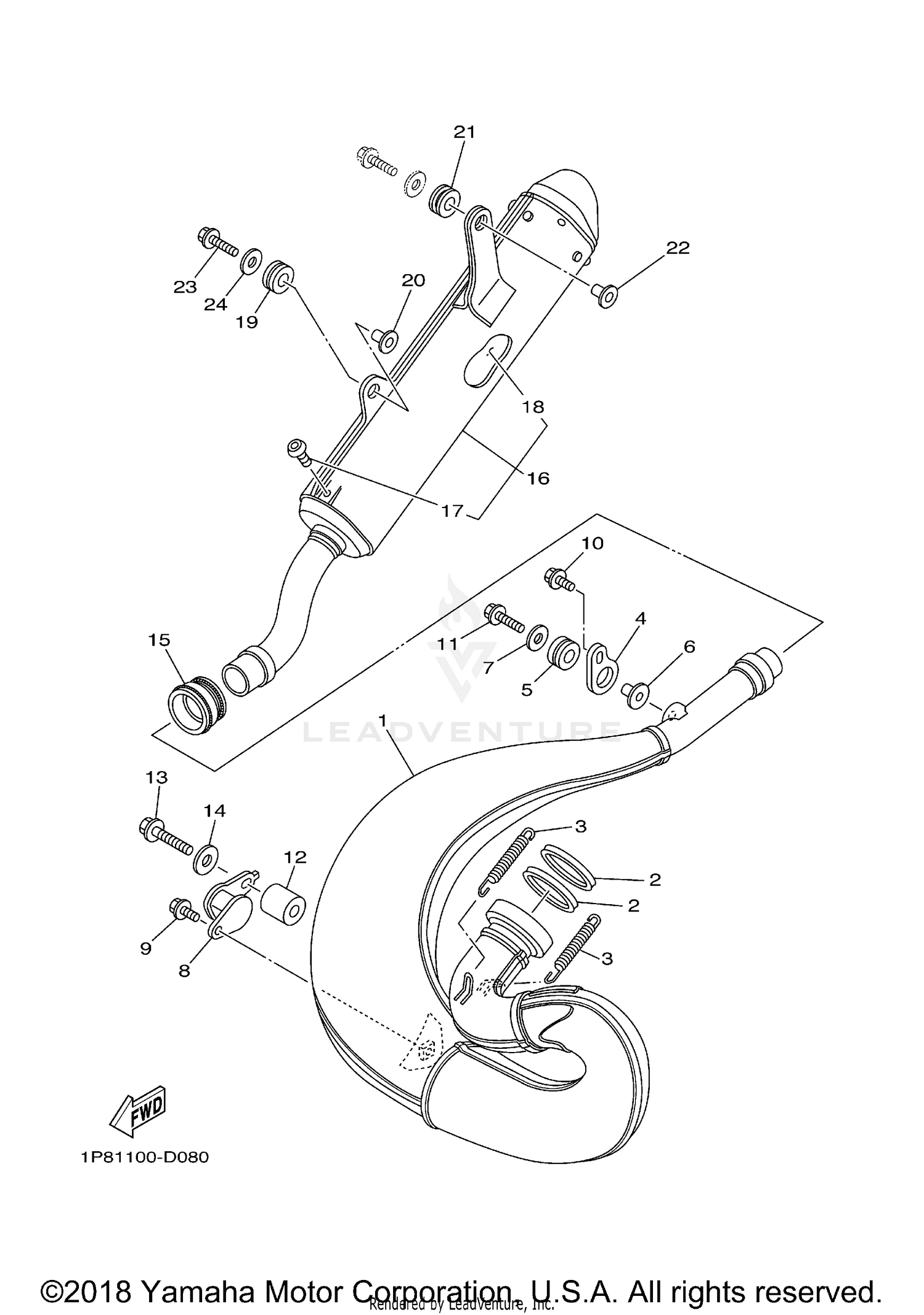

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
1P8-14610-00-00
|
$475.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, EXHAUST
5MW-14642-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TENSION
90507-20052-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, MUFFLER 1
5CU-14771-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-16561-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-063G3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, MUFFLER 2
5XF-14781-00-00
Superseded by 5XF-14781-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#9
BOLT, WITH WASHER
90119-06192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06192-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-08030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-08035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, EXHAUST 1
3JE-14615-01-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SILENCER, EXHAUST
5NX-14753-11-00
Superseded by 5NX-14753-20-00
|
$342.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92017-06010-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
FIBER
5HC-1469A-10-00
|
$154.01 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-16561-00
|
$15.49 | ||
|
Unavailable |
|||
|
#20
COLLAR
90387-063G3-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
GROMMET
90480-16404-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-06039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Unavailable |
|||
