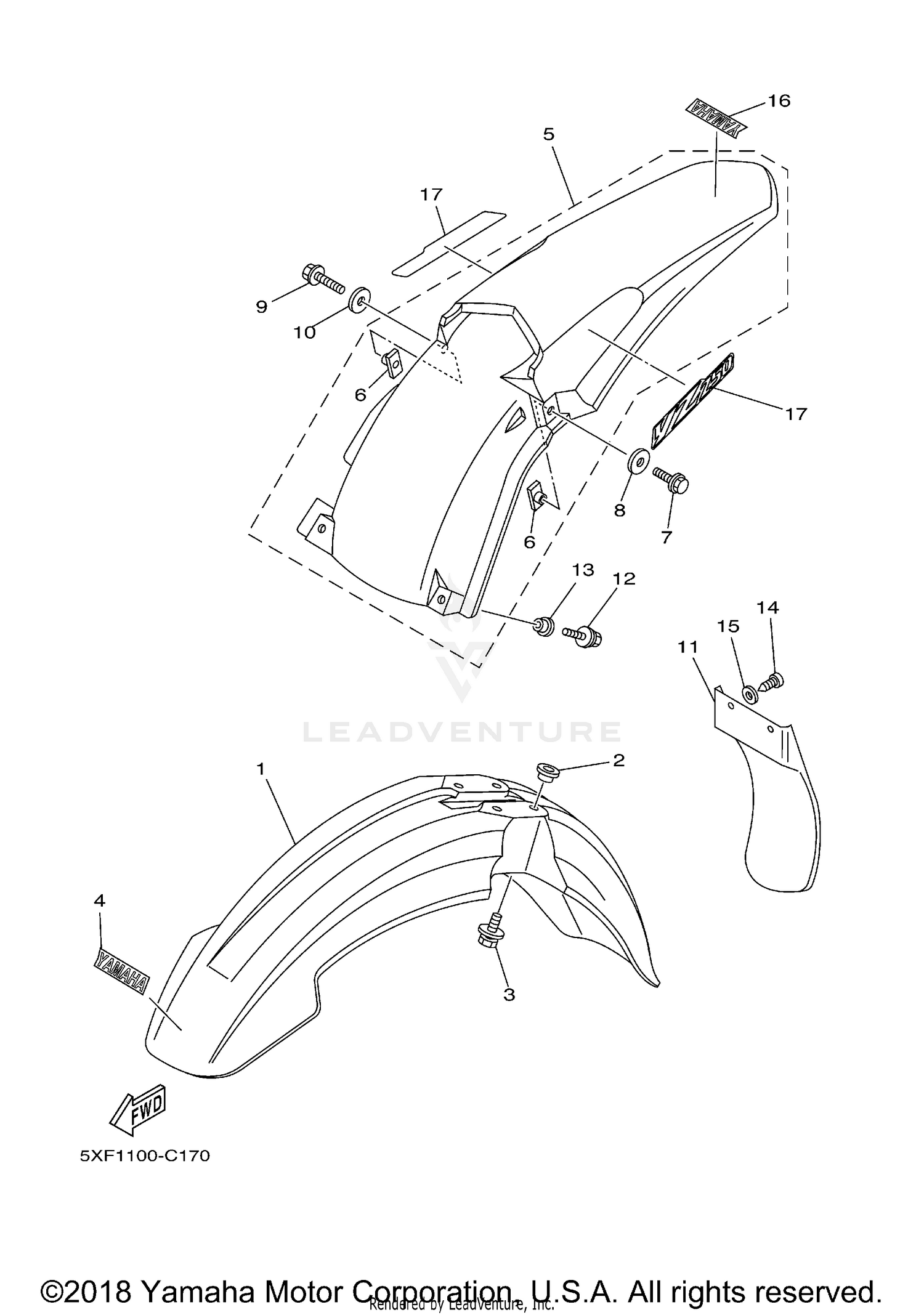

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5HD-21511-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
REAR FENDER COMP.
5XE-21610-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, REAR FENDER
5XE-21635-00-00
Superseded by 5XE-21635-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06045-00
Superseded by 90105-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-062A8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06046-00
Superseded by 90105-06091-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, FLAP
5UN-21642-00-00
Superseded by 5UN-21642-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-06225-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97707-60016-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06557-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
EMBLEM YAMAHA
4ES-2153E-01-00
Superseded by 4ES-2153E-02-00
|
$13.99 | ||
|
Unavailable |
|||
|
#17
EMBLEM 1
5XF-2163G-00-00
|
$6.99 | ||
|
Unavailable |
|||
