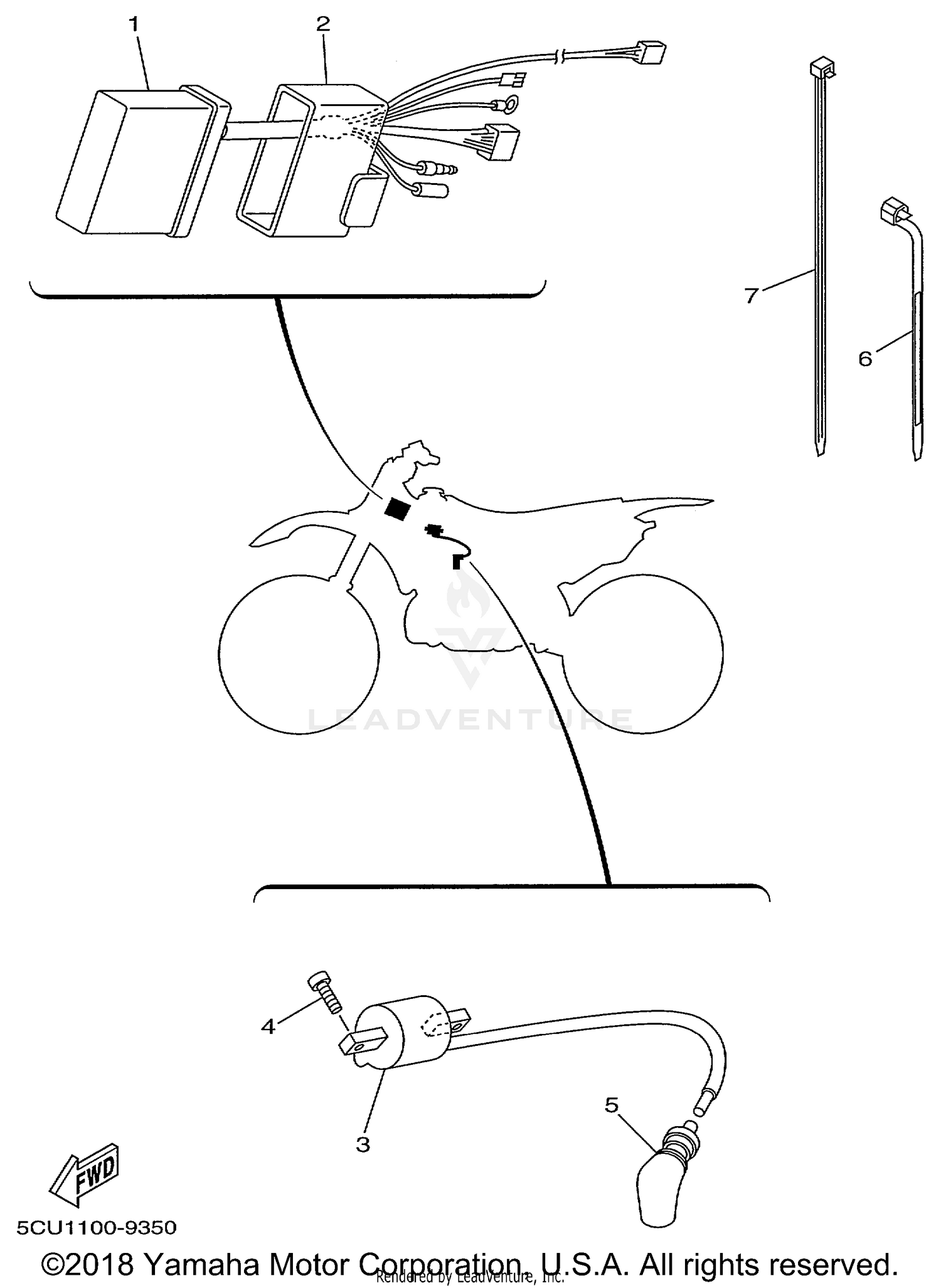

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSEMBLY
5CU-85540-00-00
|
$376.10 | ||
|
Unavailable |
|||
|
#2
BAND
5CU-85546-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
5BE-82310-00-00
Superseded by 4MX-82310-02-00
|
$74.99 | ||
|
Unavailable |
|||
|
#4
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSY
4PE-82370-10-00
Superseded by 8DG-82370-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
TIE-WRAP
90464-50255-00
Superseded by 90464-76001-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
