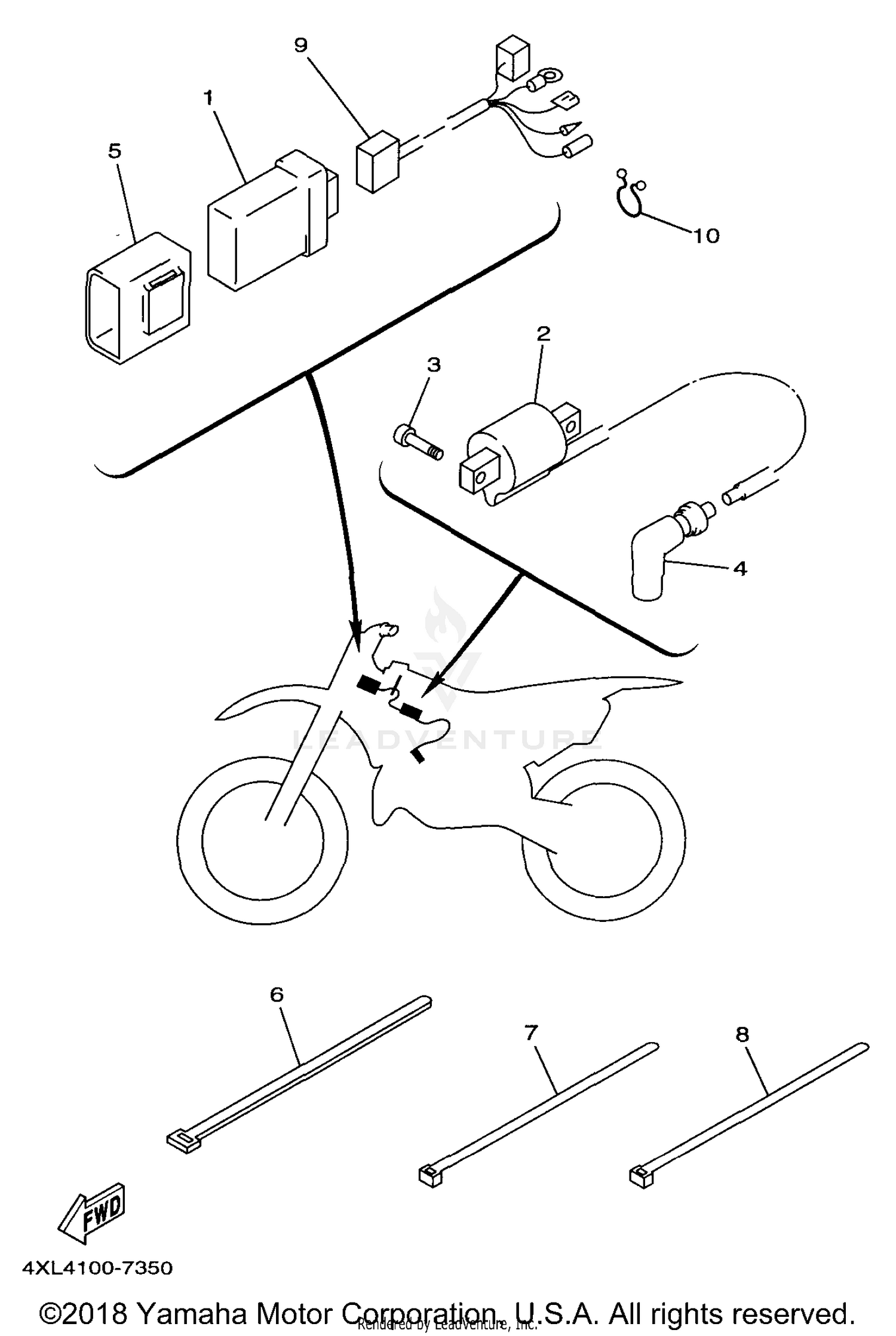

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
5DJ-85540-00-00
Superseded by 5DJ-85540-01-00
|
$201.99 | ||
|
Unavailable |
|||
|
#2
IGNITION COIL ASSY
4SR-82310-00-00
Superseded by 4MX-82310-02-00
|
$74.99 | ||
|
Unavailable |
|||
|
#3
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG CAP ASSY
4PE-82370-00-00
Superseded by 8DG-82370-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND
4SS-85546-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TIE-WRAP
90464-50255-00
Superseded by 90464-76001-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WIRE, SUB LEAD
4SS-82509-00-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-16039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
