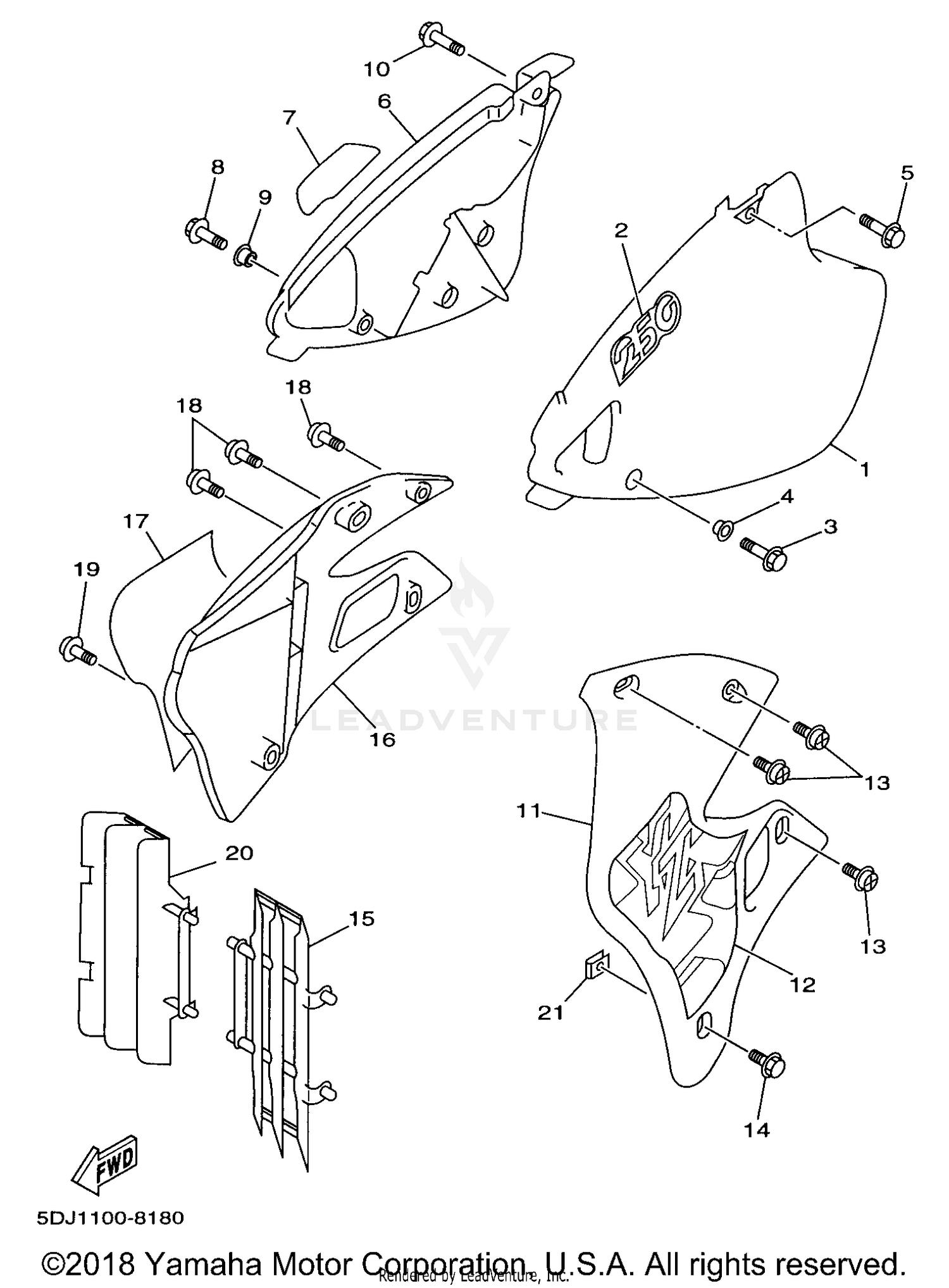

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
4SS-21711-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM 1
5DJ-21781-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-0600F-00
Superseded by 90387-06009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#6
COVER, SIDE 2
4SS-21721-00-00
|
$45.35 | ||
|
Unavailable |
|||
|
#7
EMBLEM 1
5DJ-21781-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#9
COLLAR
90387-0600F-00
Superseded by 90387-06009-00
|
$9.49 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
95827-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#11
SIDE COVER ASSY 3
4SS-21731-10-00
Superseded by 99999-04074-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GRAPHIC 1
5DH-2173E-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#13
SCREW, WITH WASHER
90159-06182-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, WITH WASHER
90159-06078-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PANEL 1
4EW-2172A-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SIDE COVER ASSY 4
4SS-21741-10-00
Superseded by 99999-04076-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GRAPHIC 2
5DH-2173F-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#18
SCREW, WITH WASHER
90159-06182-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
SCREW, WITH WASHER
90159-06078-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
PANEL 1
4EW-2172A-10-00
|
$28.99 | ||
|
Unavailable |
|||
|
#21
NUT, SPRING
90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
