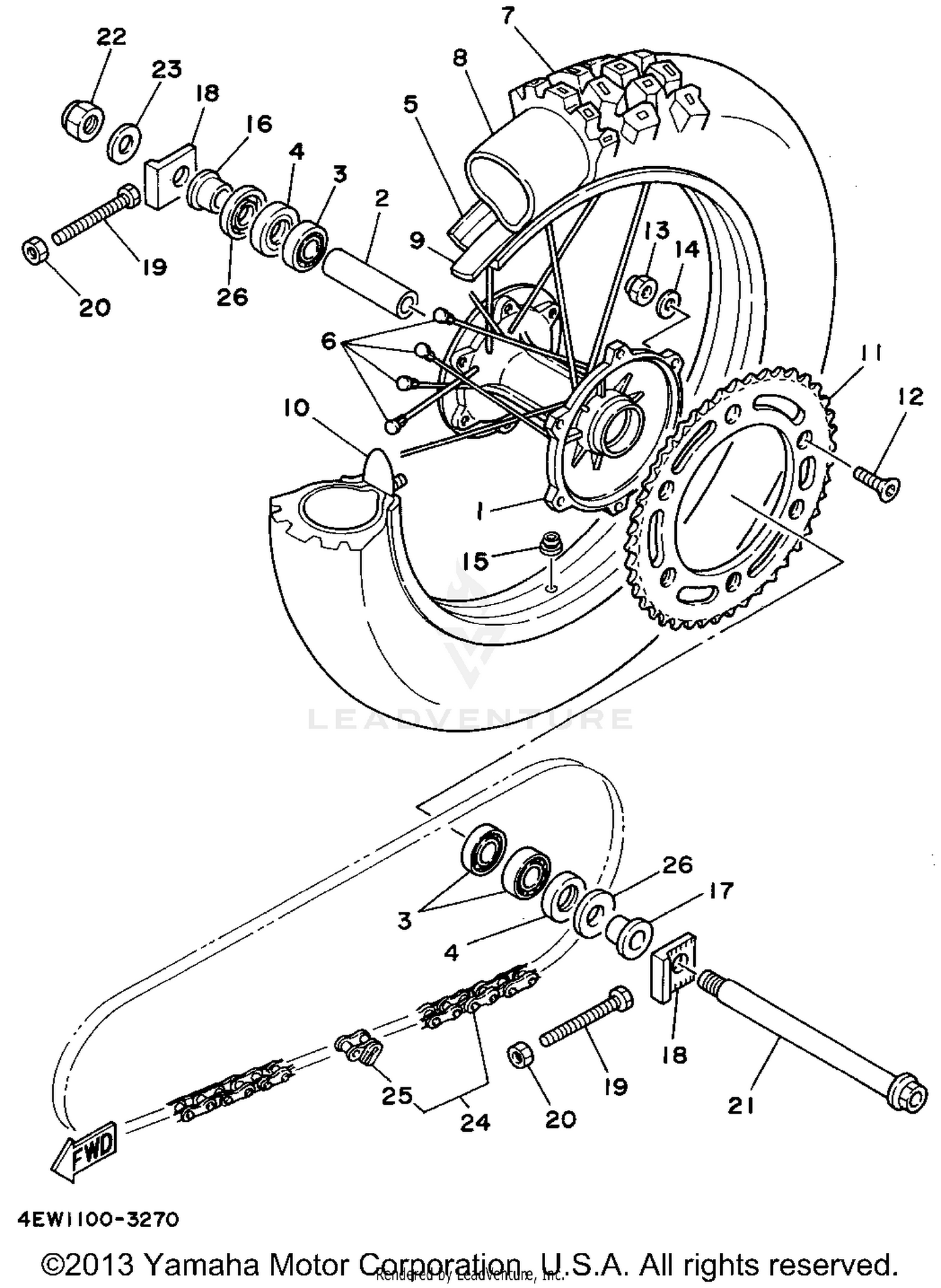

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
4EW-25311-00-00
|
$232.99 | ||
|
Unavailable |
|||
|
#2
SPACER
4EW-25317-00-00
Superseded by 90560-20278-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-00418-00
Superseded by 93306-00444-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-28023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM (2.15-19)
94421-19484-00
|
$367.99 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, REAR
4JX-25304-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#7
110/90-19 BRIDGESTON
94111-1902Y-00
Superseded by 94111-19011-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE (110/90 110/100-19TR4)
94211-19273-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, RIM (110/90 110/100-19)
94311-19155-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, BEAD
3JE-25394-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, DRIVEN (51T)
3JD-25451-01-00
|
$247.24 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVN 44T
3R4-25444-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (45T) (39W-254
3R4-25445-01-XX
|
$70.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 46T
3R4-25446-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 48T
3R4-25448-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (49T) (2HH-254
3R4-25449-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 50T
3R4-25450-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 52T
3R4-25452-01-XX
|
$51.99 | ||
|
Unavailable |
|||
|
#12
BOLT
90109-08792-00
Superseded by 90109-081G1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-2000B-00
|
$16.49 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-2000C-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PULLER, CHAIN 1
4JX-25388-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#19
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
AXLE, WHEEL
3JD-25381-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#22
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
92990-18600-00
Superseded by 92995-18600-00
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
CHAIN (DID520DMA2 SDH 114LL)
94581-44114-00
Superseded by 9Y581-92113-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT,CHAIN (DID 520DM-RJ)
94681-44001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, HUB DUST
4V4-25367-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
