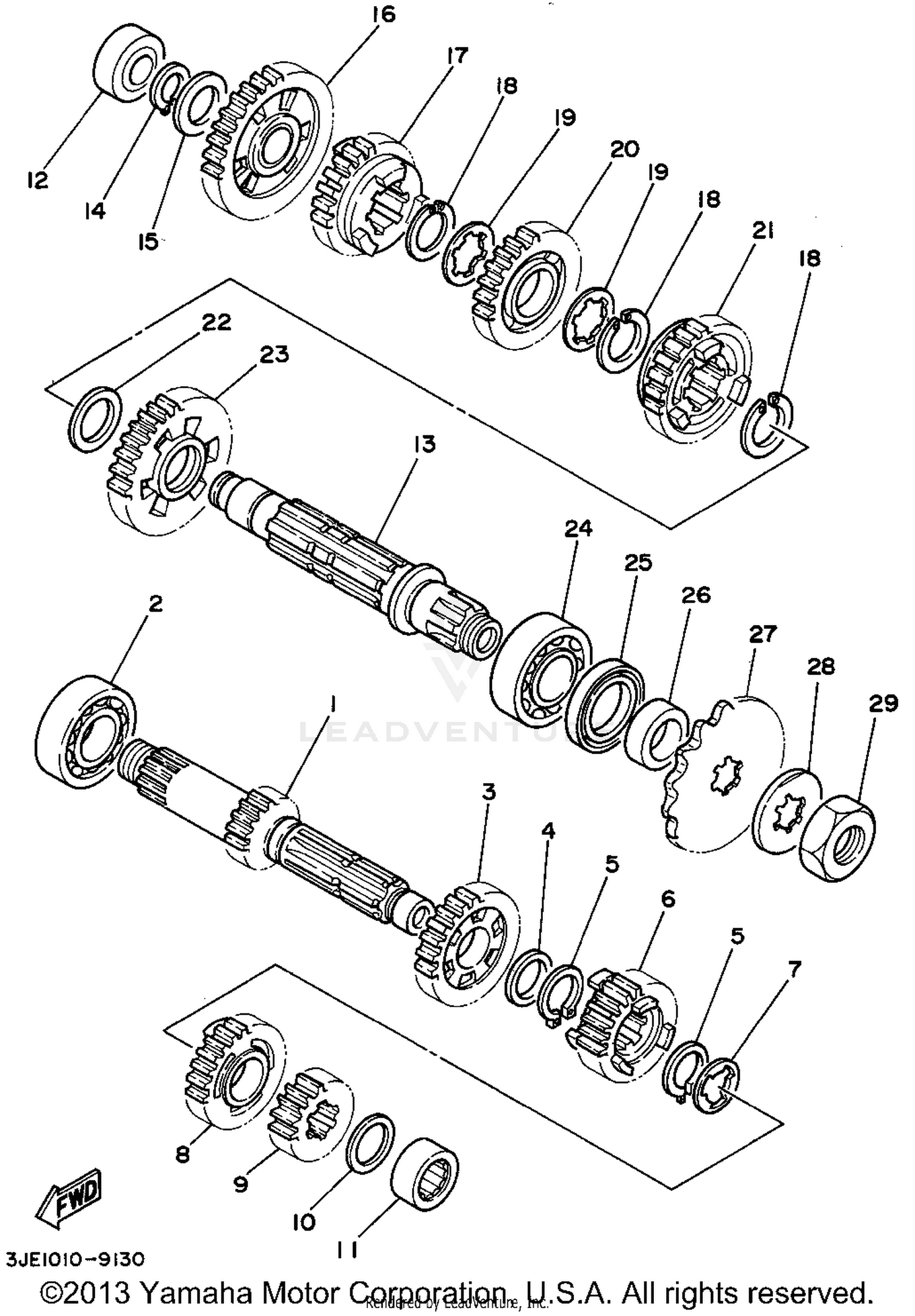

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
4JX-17411-00-00
|
$216.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20540-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (21T)
4JX-17151-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-22555-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (18T)
4JX-17131-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#7
WASHER
90209-18135-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 4TH PINION (22T)
3RB-17141-00-00
|
$132.99 | ||
|
Unavailable |
|||
|
#9
GEAR, 2ND PINION
4JX-17121-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPEC''L SHAP
90209-17311-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CYL.#11
93311-41734-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, CYLINDRICAL
93311-62035-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
AXLE, DRIVE
2VM-17421-00-00
Superseded by 2VM-17421-01-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 1ST WHEEL
4JX-17211-00-00
Superseded by 4MX-17211-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#17
GEAR, 5TH WHEEL (20T)
4JX-17251-00-00
|
$91.95 | ||
|
Unavailable |
|||
|
#18
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (0.5T)
90209-22082-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 3RD WHEEL (23T)
4JX-17231-00-00
|
$87.47 | ||
|
Unavailable |
|||
|
#21
GEAR, 4TH WHEEL (24T)
3RB-17241-00-00
|
$85.99 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 2ND WHEEL (25T)
4JX-17221-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#24
BEARING
93306-20562-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-32M07-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-25663-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPROCKET,DRIVE 13T
93834-13030-00
Superseded by 93834-13206-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE 14T (23X1746140
93834-14049-00
Superseded by 93834-14050-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
93834-15075-00
Superseded by 93834-15078-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, LOCK
90215-21239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
90179-20255-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
