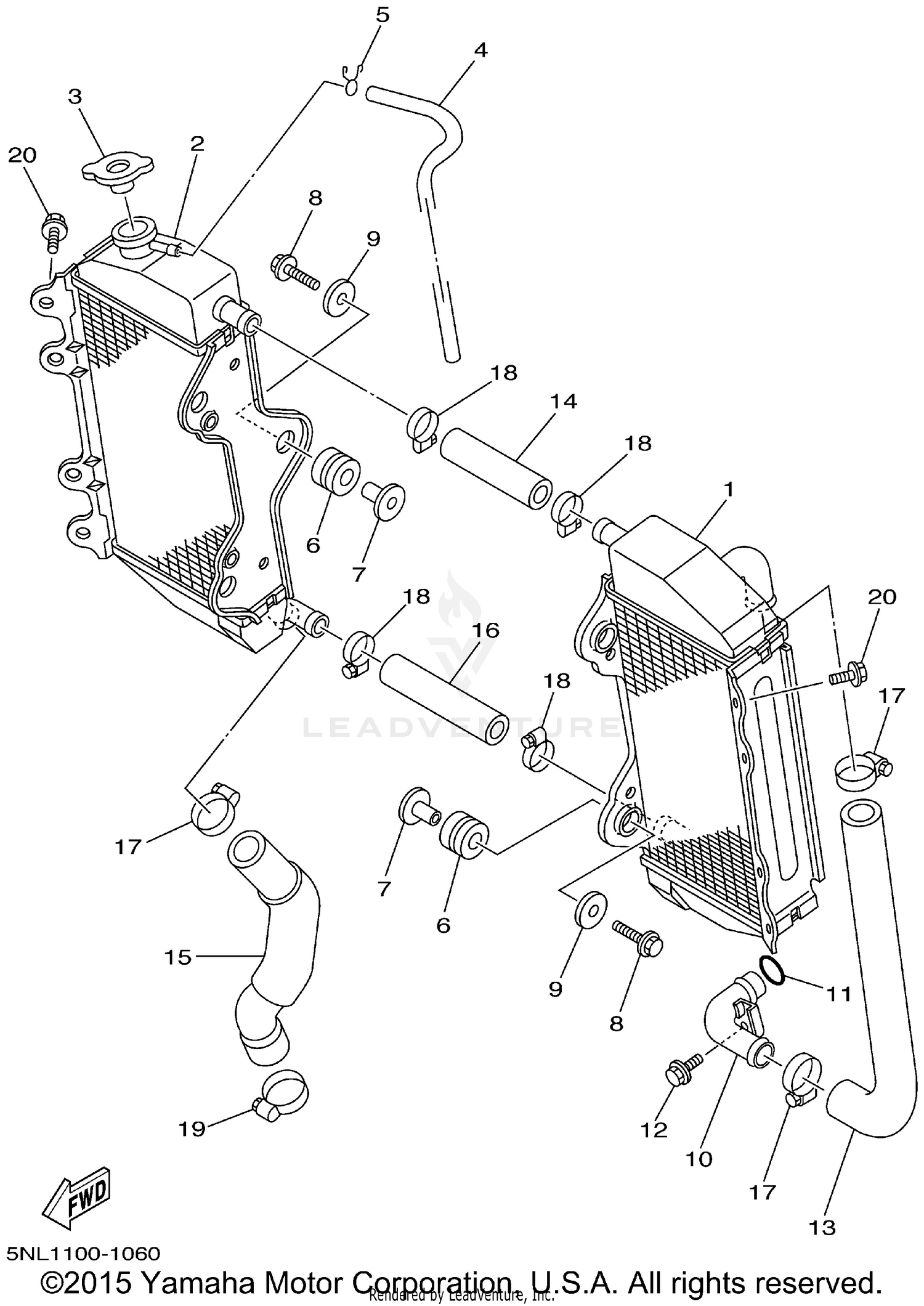

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
5NL-1240A-00-00
Superseded by 5NL-1240A-10-00
|
$426.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR ASSY
5NL-12461-00-00
Superseded by 5NL-12461-10-00
|
$464.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RADIATOR
5HD-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FLEXIBLE VINYL
91A20-05065-00
Superseded by 91A20-05080-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-15528-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-0614M-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE 1
5NL-12481-00-00
Superseded by 5NL-12481-10-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-15414-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE 1
5NL-12576-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#14
HOSE 2
5NL-12577-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#15
HOSE 3
5NL-12578-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE 4
5NL-12579-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#17
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Unavailable |
|||
|
#19
HOSE CLAMP ASSY
90450-32015-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
