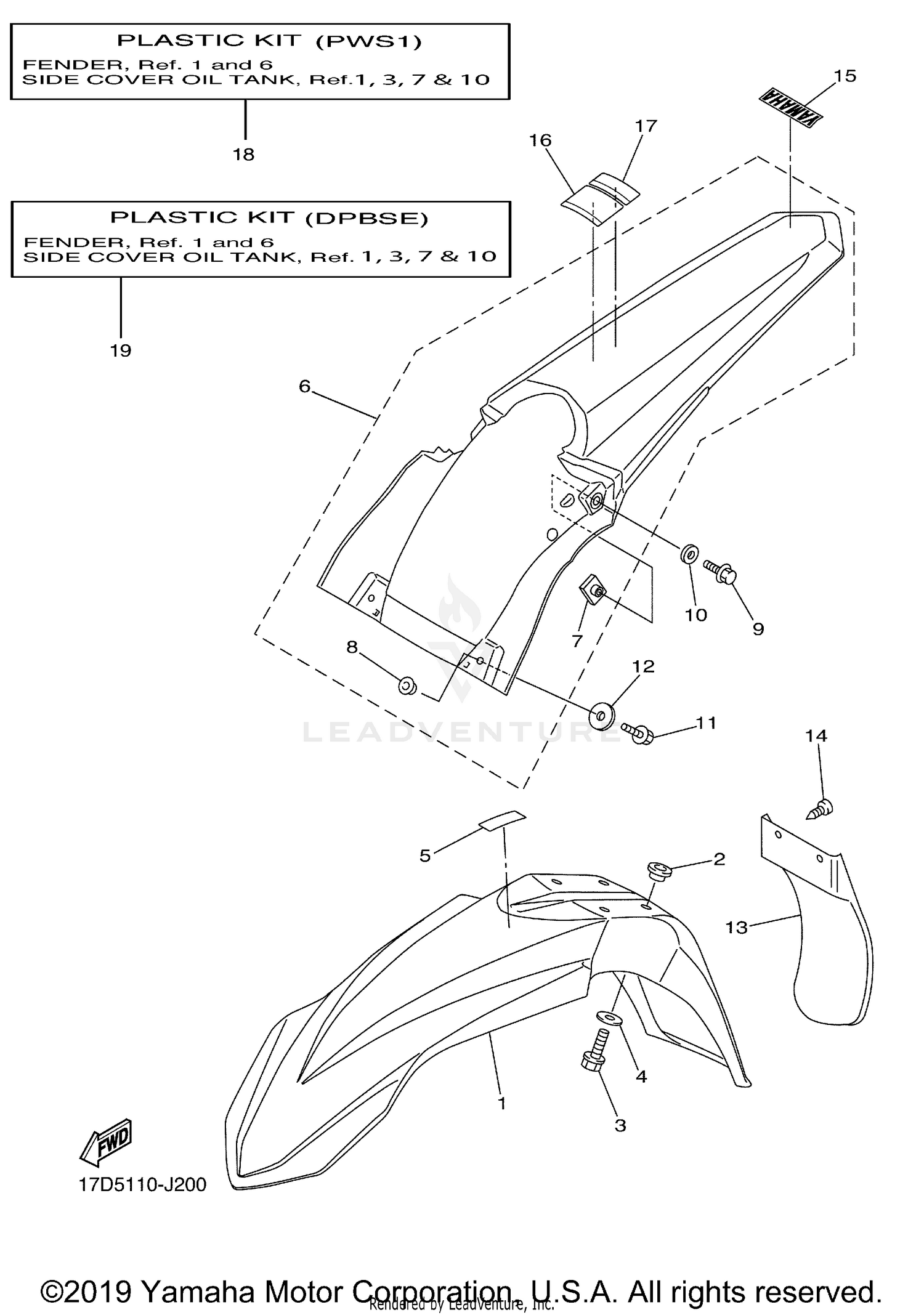

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
17D-21511-60-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT
17D-21511-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06259-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06127-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06108-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, CAUTION
3FB-2415E-02-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
17D-21610-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
REAR FENDER COMP.
17D-21610-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, REAR FENDER
5XE-21635-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-064X4-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-06100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06104-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-06106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06085-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUARD, FLAP
17D-21642-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
97702-60016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
EMBLEM, YAMAHA
3WF-2153E-10-00
Superseded by 3WF-2153E-11-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
EMBLEM, YAMAHA
3WF-2153E-70-00
Superseded by 3WF-2153E-71-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
LABEL, CAUTION
5PA-2118K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
LABEL 5
3XJ-2151H-A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLASTIC KIT
17D-W003A-10-00
|
$221.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLASTIC KIT
17D-W003A-00-00
|
$227.99 | ||
|
Available to order. Add to View Price |
|||
