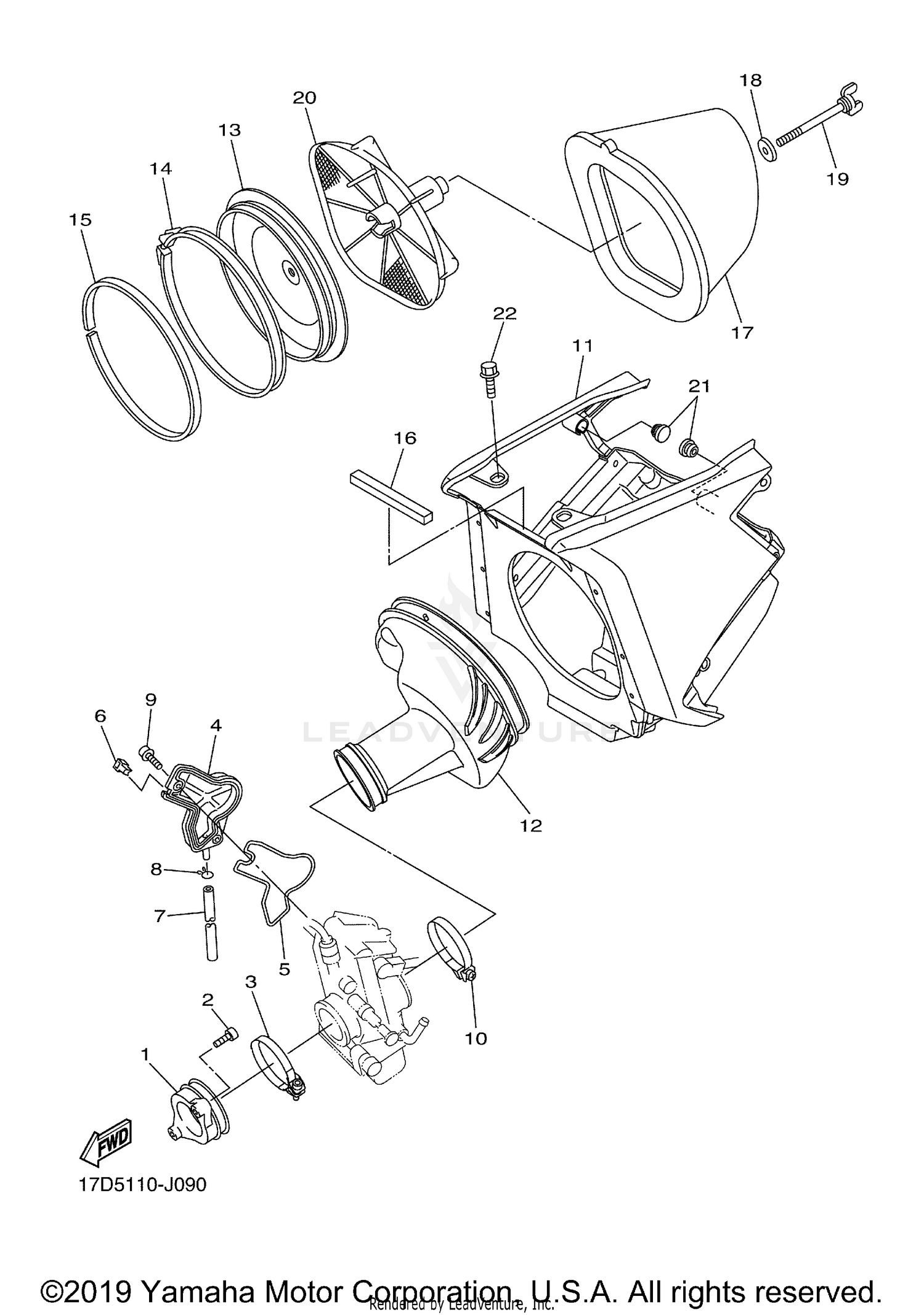

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 3
5XC-13597-30-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-58006-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER 1
5TA-14293-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
5TA-14227-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL
5TA-14239-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE
5TA-14987-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
3TJ-14137-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-05038-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE CLAMP ASSY
90450-61002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AIR CLEANER CASE ASSY
17D-14401-00-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, AIR CLEANER 1
17D-14453-50-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, GUIDE
5NY-14459-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND
5NY-14455-20-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
5NY-14442-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL
17D-14452-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
ELEMENT, AIR CLEANER
4XM-14451-00-00
Superseded by 4XM-14451-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
90209-06096-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WING
90122-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE
5BE-14458-10-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-06170-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
