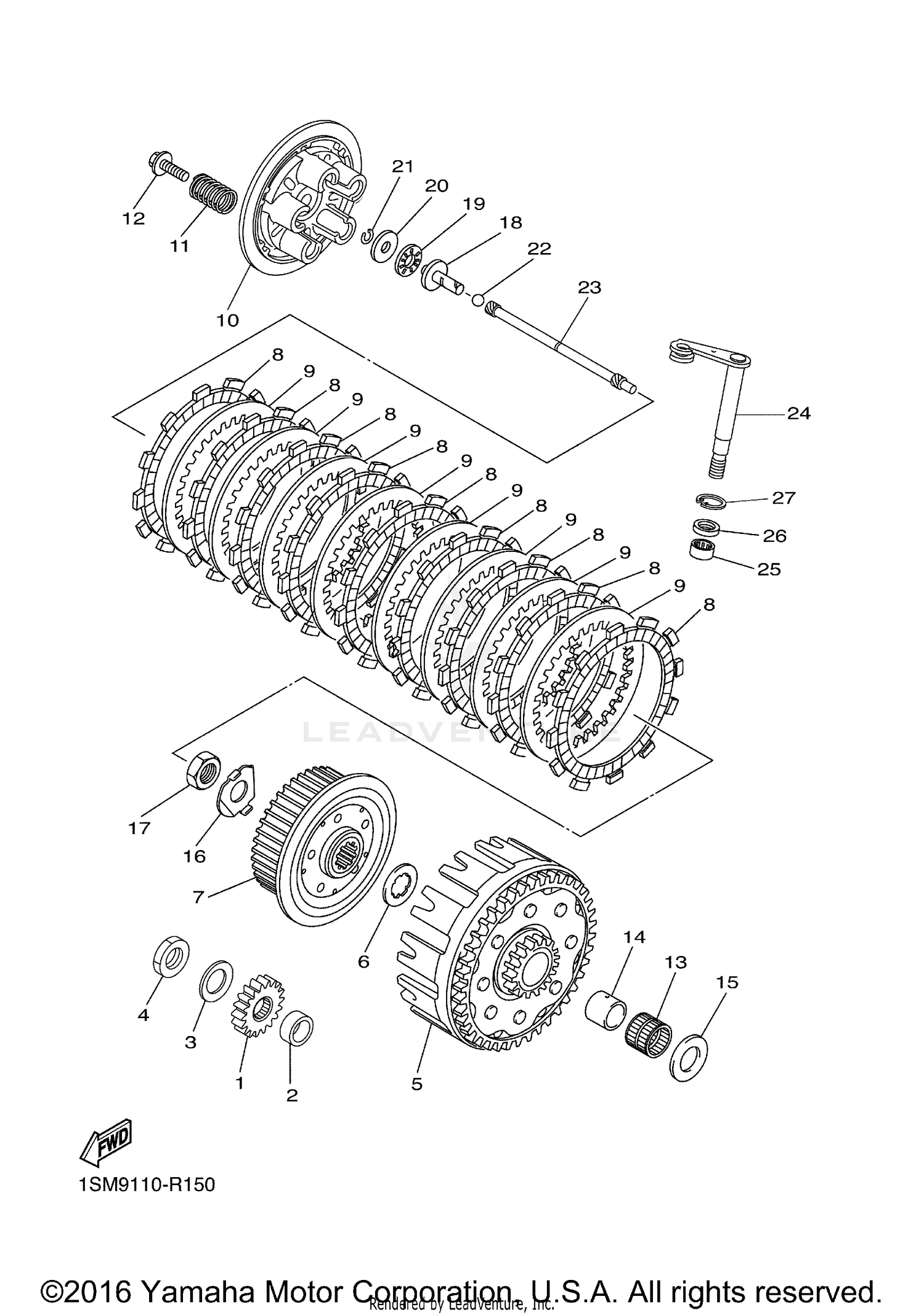

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
1SM-16111-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-19008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, CONICAL SPRING
90208-16019-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90170-16003-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PRIMARY DRIVEN GEAR COMP.
1SM-16150-00-00
|
$475.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, THRUST 1
1SM-16154-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOSS, CLUTCH
5NL-16371-50-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, FRICTION
5XC-16321-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH 2
5NL-16325-00-00
Superseded by 5NL-16325-20-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
PLATE, PRESSURE 1
1SM-16351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-230A6-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, WITH WASHER
90159-06029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93310-225N0-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER 1
1SM-16181-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-20611-00
Superseded by 90201-204K8-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, LOCK
90215-16289-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90170-16326-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
ROD, PUSH 1
1SM-16356-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93340-21008-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-080H1-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
93440-07182-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROD, PUSH 2
1SM-16357-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PUSH LEVER COMP.
1SM-16381-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93317-11096-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-10008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
99009-18500-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
