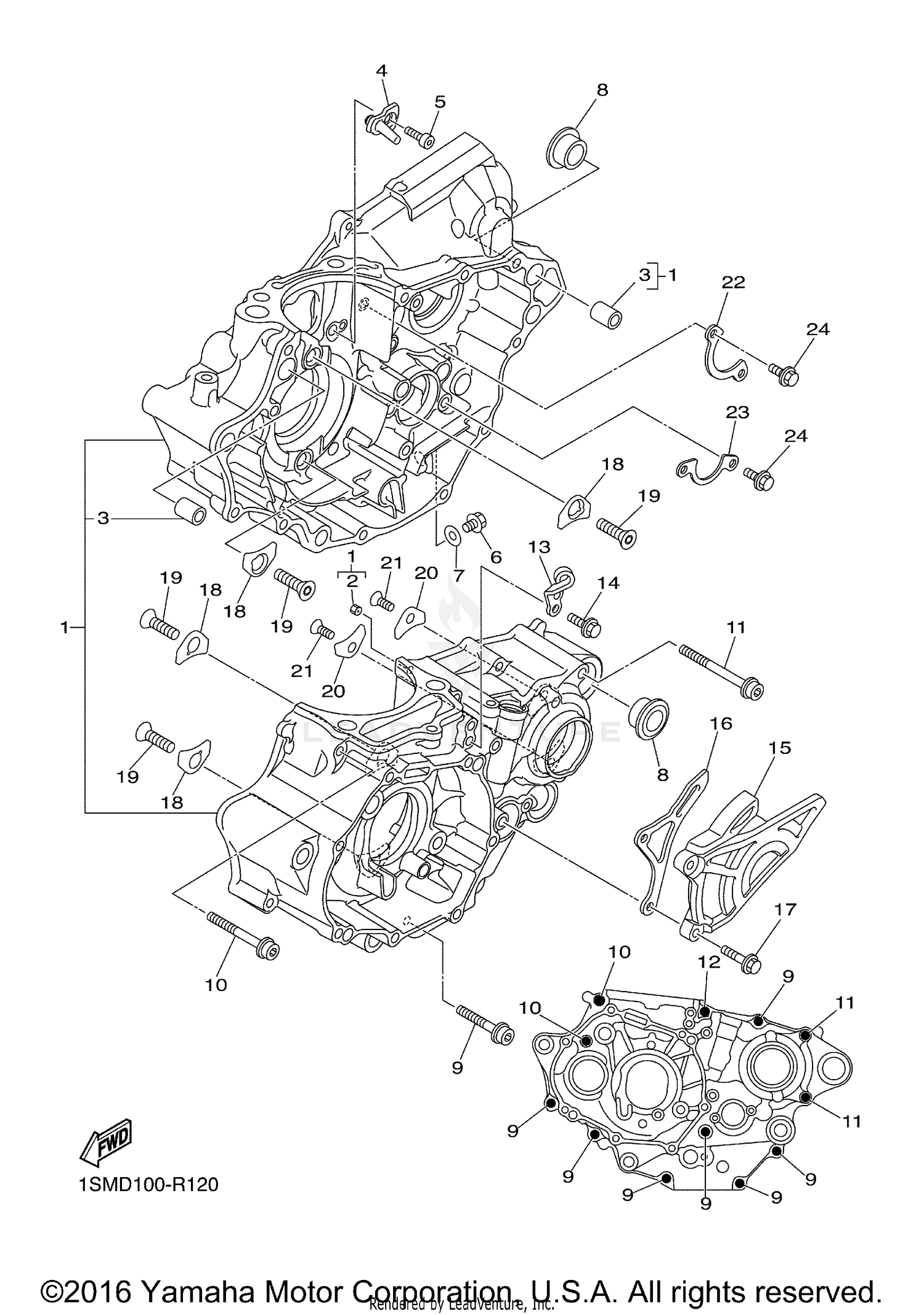

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
1SM-15100-08-00
Superseded by 1SM-15100-29-00
|
$1,409.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NOZZLE 1
1SM-15138-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
NOZZLE 3
1SM-15155-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90110-05032-00
Superseded by 91317-05012-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95022-10016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-10188-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-17015-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-06391-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06363-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-06392-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91317-06075-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, CLUTCH CABLE
1SL-15441-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-06099-00
Superseded by 90105-06100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, CRANKCASE 2
1SL-15421-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE, CHAIN
1SL-17466-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-06189-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, BEARING COVER
18P-15383-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, COUNTERSUNK
90151-08007-00
Superseded by 90151-08008-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, BEARING COVER
4JT-15381-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-06074-00
Superseded by 90151-06052-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, BEARING COVER
1SM-15388-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, STOPPER 2
1SL-18562-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-06081-00
Superseded by 95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
