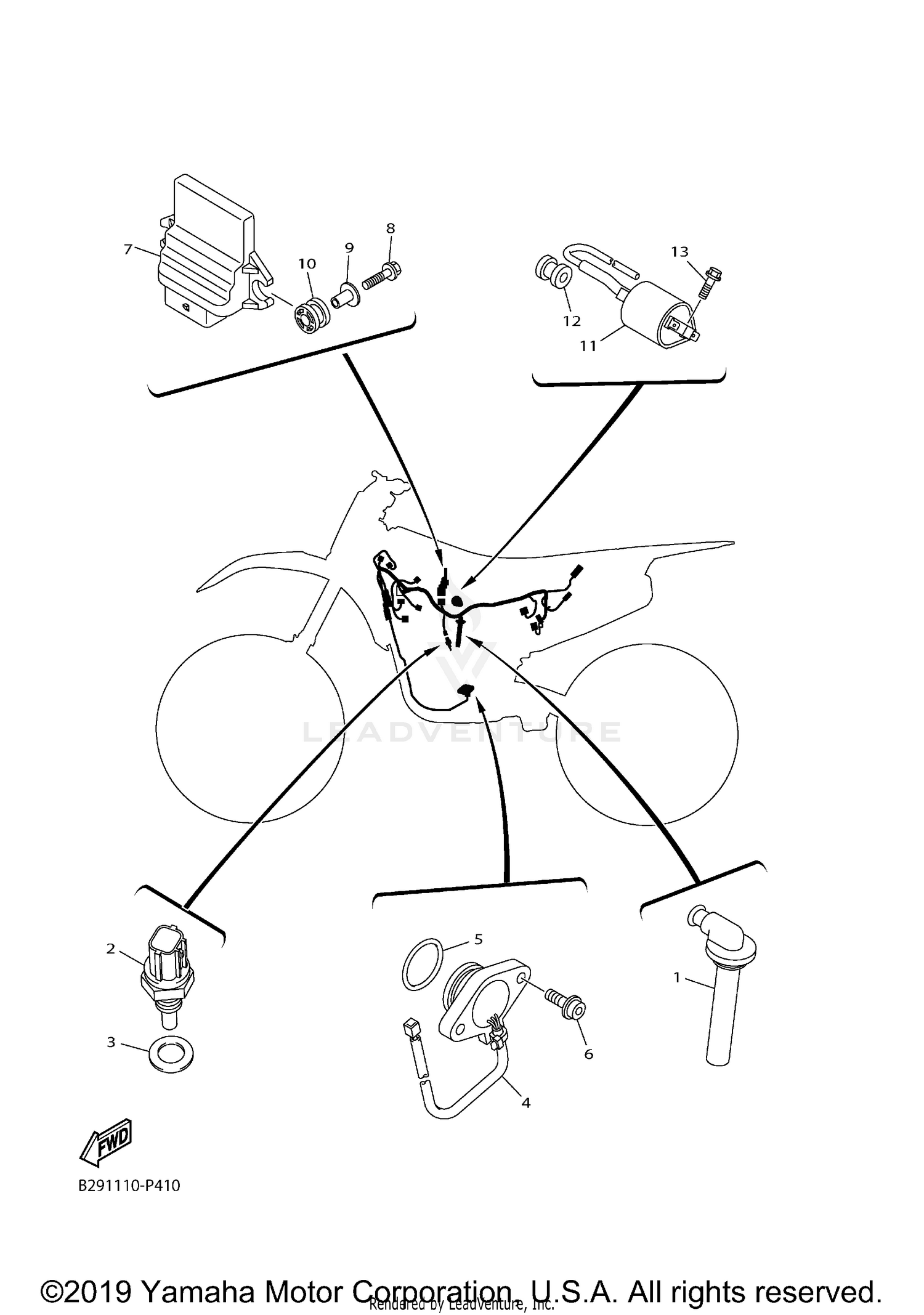

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLUG CAP ASSY
1SM-82370-00-00
Superseded by 1SM-82370-01-00
|
$91.99 | ||
|
Unavailable |
|||
|
#2
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
90430-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEUTRAL SWITCH ASSY
2GB-82540-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-21001-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-05062-00
Superseded by 90110-05028-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
ENGINE CONTROL UNIT ASSY
B29-8591A-20-00
Superseded by B29-8591A-21-00
|
$394.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
90105-05005-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-05048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-13029-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
IGNITION COIL ASSY
1SM-82310-00-00
Superseded by 1SM-82310-03-00
|
$50.99 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-11015-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
