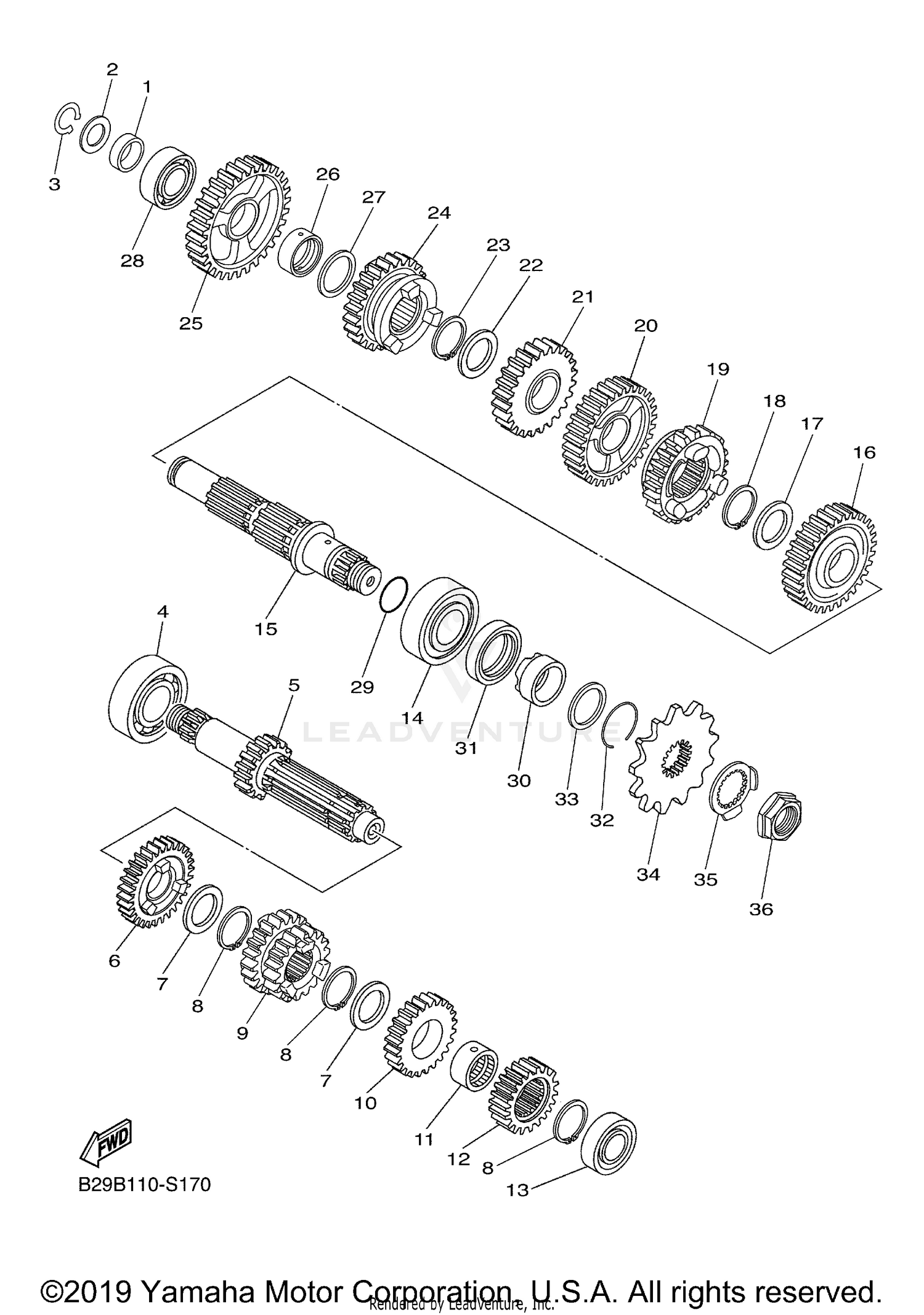

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR
90387-175R2-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-00426-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE, MAIN
2GB-17411-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 6TH PINION (27T)
2GB-17161-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-20008-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 3RD PINION (18T/21T)
B29-17131-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 5TH PINION (23T)
2GB-17151-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-20006-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, 2ND PINION (16T)
B29-17121-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-20336-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-27209-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DRIVE AXLE ASSY., 2
2GB-1742A-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, 2ND WHEEL (29T)
B29-17221-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
90209-23012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93410-26067-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 5TH WHEEL (22T)
2GB-17251-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 3RD WHEEL (26T)
B29-17231-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 4TH WHEEL (24T)
B29-17241-00-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-20008-00
|
$10.49 | ||
|
Unavailable |
|||
|
#23
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
GEAR, 6TH WHEEL (22T)
2GB-17261-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 1ST WHEEL (31T)
2GB-17211-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-17012-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-177G4-00
|
$8.49 | ||
|
Unavailable |
|||
|
#28
BEARING
93306-20351-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-196A4-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-22033-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93102-28012-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
93450-40N50-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-29M00-00
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPROCKET, DRIVE (13T)
9383B-13218-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, LOCK
90215-20003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
90179-18001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
