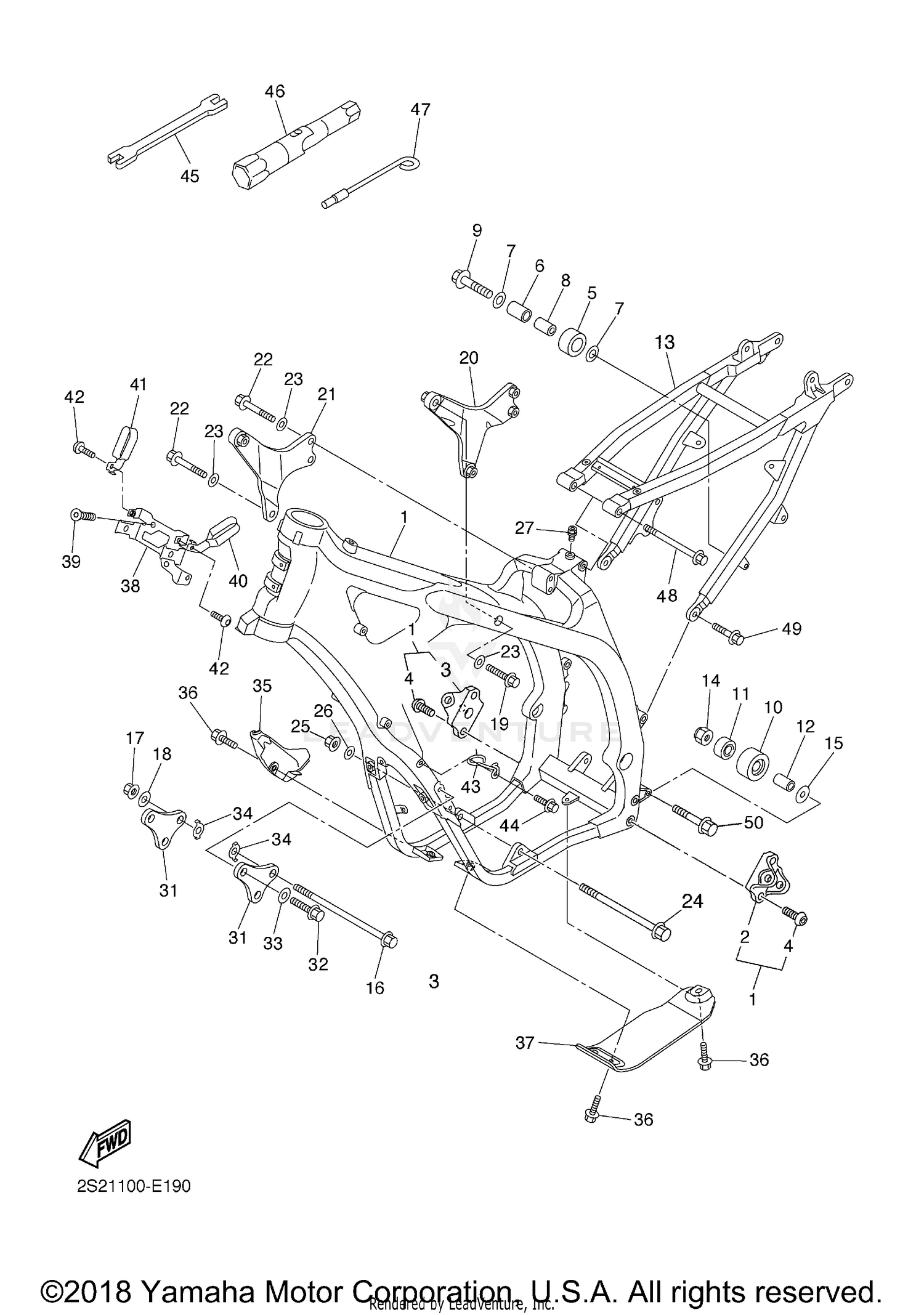

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
2S2-21101-00-00
|
$2,030.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FOOTREST
1C3-21447-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FOOTREST
1C3-21448-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-10031-00
Superseded by 90149-10033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#5
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-08041-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
TENSIONER
3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93300-60839-00
Superseded by 93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
REAR FRAME COMP.
5XC-21190-90-00
Superseded by 5XC-21190-L0-00
|
$739.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U
90185-08009-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08043-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-10076-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-104R2-00
Superseded by 90201-08759-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95817-10030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, REAR UPPER 1
2S2-21425-00-00
Superseded by 2S2-21425-70-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, REAR UPPER 2
2S2-21426-00-00
Superseded by 2S2-21426-70-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95817-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-104R2-00
Superseded by 90201-08759-00
|
$3.05 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
90105-10072-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
90201-104R2-00
Superseded by 90201-08759-00
|
$3.05 | ||
|
Unavailable |
|||
|
#27
NUT
1C3-21244-10-00
Superseded by 1C3-21244-20-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET, FRONT LOWER 1
2S2-21417-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
90105-08130-00
|
$2.65 | ||
|
Unavailable |
|||
|
#33
WASHER, PLAIN
92903-08200-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE, PATCH
5XC-21456-90-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PROTECTOR, ENGINE
2S2-21471-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, WITH WASHER
90119-06217-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
GUARD, ENGINE 2
2S2-2147E-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BRACKET, C.D.I. UNIT
5XC-21274-90-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, COUNTERSUNK
90151-06032-00
Superseded by 90151-06034-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOLDER, CLUTCH CABLE
5XC-21163-90-00
Superseded by 2S2-21163-70-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOLDER, CABLE
5XC-21164-90-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, BUTTON HEAD
92012-05008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#43
GUIDE, CABLE
5XC-21288-90-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
90105-05014-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
WRENCH, HEXAGON
5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOX, SPARK PLUG
5TA-2814F-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
TOOL, SPECIAL
5XC-28116-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE
90105-08115-00
Superseded by 90105-08132-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE
90105-08085-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, FLANGE
95024-08045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
