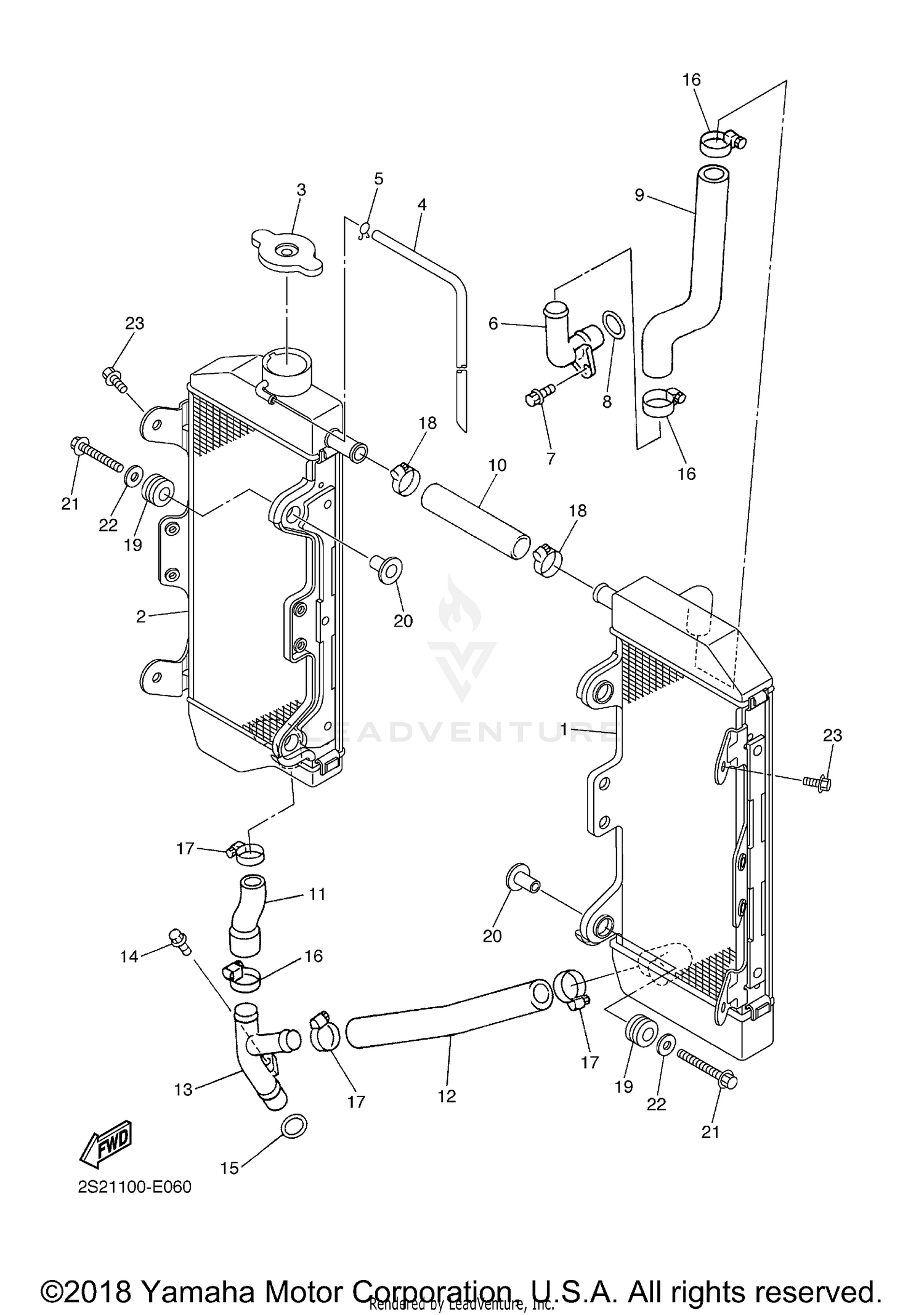

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
2S2-1240A-00-00
|
$326.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR ASSY
2S2-12461-00-00
|
$317.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FLEXIBLE VINYL
91A20-05065-00
Superseded by 91A20-05080-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE 1
2S2-12481-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91312-06012-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-16500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE 1
2S2-12576-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE 2
1C3-12482-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE 3
2S2-12578-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE 4
2S2-12579-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE 2
2S2-12482-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-16500-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
HOSE CLAMP ASSY
90450-28001-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CLAMP ASSY
90450-25001-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-22001-00
Superseded by 90450-18M09-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-15528-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-06065-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
