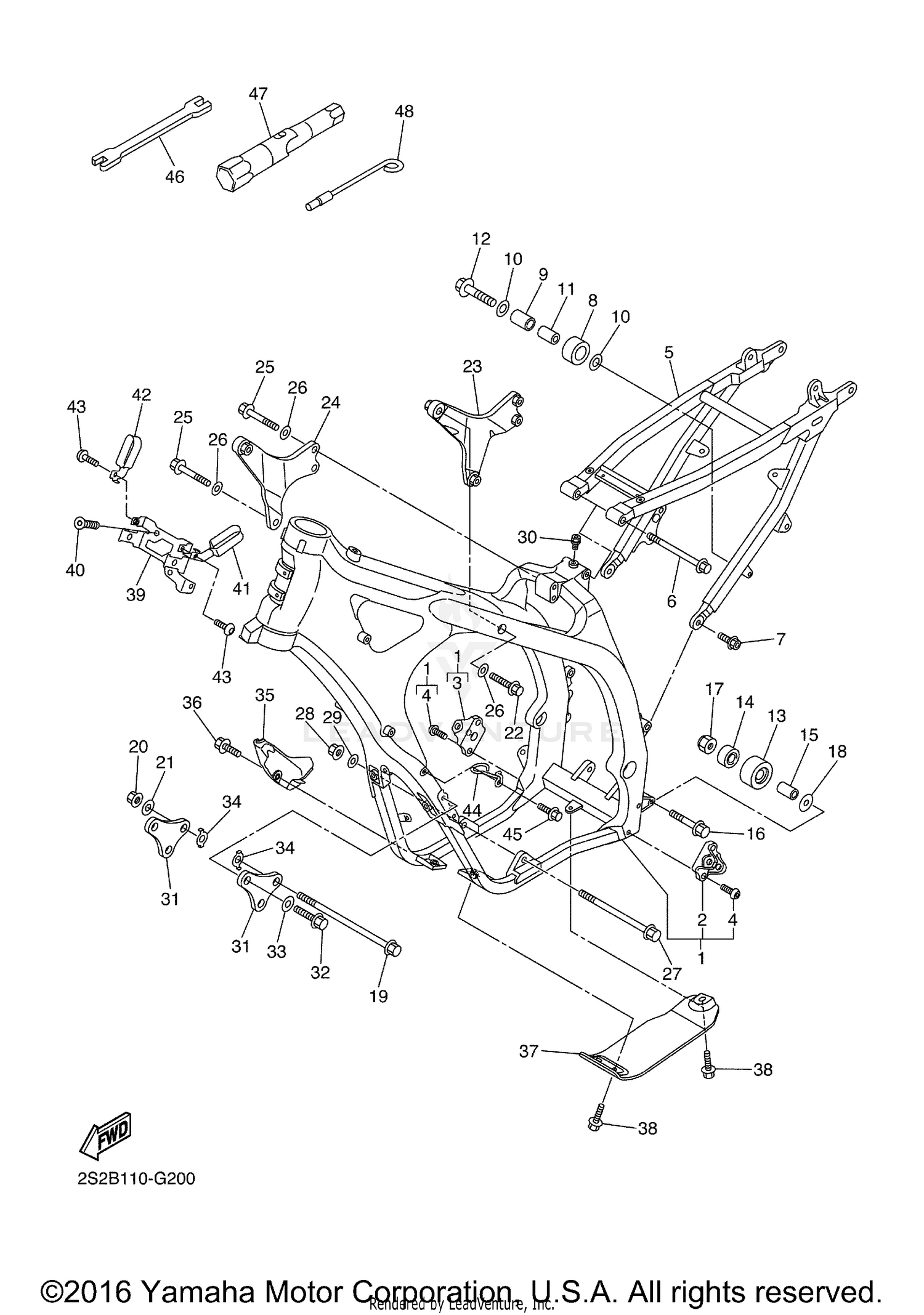

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FRAME COMP.
2S2-21101-B0-00
|
$2,981.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FOOTREST
1C3-21447-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FOOTREST
1C3-21448-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-10031-00
Superseded by 90149-10033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#5
REAR FRAME COMP.
5XC-21190-L0-00
|
$739.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-08156-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-08307-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-08041-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95022-08040-00
Superseded by 95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
TENSIONER
3JD-22178-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93300-60839-00
Superseded by 93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-08146-00
Superseded by 90105-08112-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
90185-08009-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08043-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-10193-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-10658-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-10045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-10189-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, REAR UPPER 1
2S2-21425-70-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, REAR UPPER 2
2S2-21426-70-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-10191-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-10045-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE
90105-10176-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-10658-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-10045-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
NUT
1C3-21244-10-00
Superseded by 1C3-21244-20-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET, FRONT LOWER 1
2S2-21417-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
90105-08143-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER
92902-08200-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE, PATCH
5XC-21456-90-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PROTECTOR, ENGINE
2S2-21471-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, WITH WASHER
90119-06146-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
GUARD, ENGINE 2
2S2-2147E-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, WITH WASHER
90119-06146-00
|
$4.10 | ||
|
Unavailable |
|||
|
#39
BRACKET, C.D.I. UNIT
5XC-21274-90-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, COUNTERSUNK
90151-06032-00
Superseded by 90151-06034-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOLDER, CLUTCH CABLE
2S2-21163-70-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOLDER, CABLE
5XC-21164-90-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, BUTTON HEAD
92012-05008-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#44
GUIDE, CABLE
5XC-21288-90-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE
90105-05014-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#46
WRENCH, HEXAGON
5ET-28166-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOX, SPARK PLUG
5TA-2814F-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
TOOL, SPECIAL
5XC-28116-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
