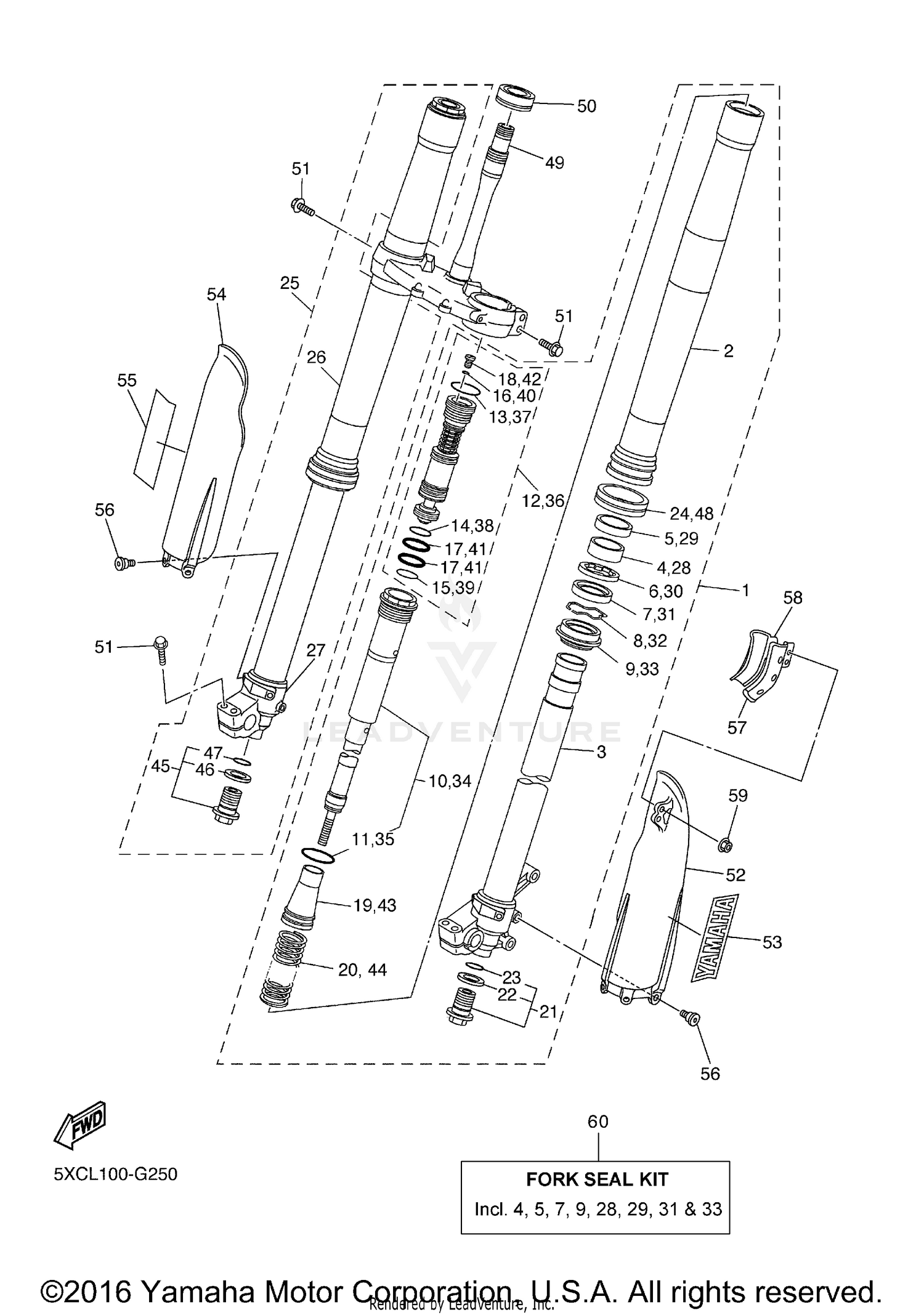

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
2S2-23102-A0-00
|
$1,250.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (RIGHT)
2S2-23136-00-00
|
$470.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP. 2
2S2-23120-00-00
|
$359.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON, FRONT FORK
5XE-23171-L0-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
5XE-23125-L0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
5XC-23146-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
1C3-23145-M0-00
Superseded by 1C3-23145-L0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
5XE-23153-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5XE-23144-L0-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
2S2-23170-20-00
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.35 | ||
|
Unavailable |
|||
|
#12
VALVE COMP.
2S2-2316A-20-00
|
$406.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$2.40 | ||
|
Unavailable |
|||
|
#14
O-RING
1C3-23188-N0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
1C3-23188-P0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
1C3-23188-R0-00
Superseded by 1C3-23188-R1-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
GASKET
1AE-23147-00-00
Superseded by 1W4-23114-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
AIR VALVE COMP.
1C3-23190-L0-00
Superseded by 1C3-23190-L1-00
|
$22.99 | ||
|
Unavailable |
|||
|
#19
SEAT, SPRING UPPER
1C3-23142-L0-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, FRONT FORK (K=4.6N/MM)
2S2-23141-L1-00
Superseded by 1C3-23141-H1-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, CAP
5XC-23111-00-00
Superseded by 5XC-23111-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#22
GASKET
2HH-23158-L0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
PROTECTER GUIDE COMP., 1
5XC-2314F-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
FRONT FORK ASSY (R.H)
2S2-23103-A0-00
|
$1,250.99 | ||
|
Unavailable |
|||
|
#26
TUBE, OUTER (RIGHT)
2S2-23136-00-00
|
$470.99 | ||
|
Unavailable |
|||
|
#27
INNER TUBE COMP. 1
2S2-23110-00-00
|
$356.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PISTON, FRONT FORK
5XE-23171-L0-00
|
$25.99 | ||
|
Unavailable |
|||
|
#29
METAL, SLIDE 1
5XE-23125-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#30
WASHER, OIL SEAL
5XC-23146-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#31
OIL SEAL
1C3-23145-M0-00
Superseded by 1C3-23145-L0-00
|
$30.99 | ||
|
Unavailable |
|||
|
#32
RING, SNAP
5XE-23153-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
SEAL, DUST
5XE-23144-L0-00
|
$21.99 | ||
|
Unavailable |
|||
|
#34
CYLINDER COMP., FRONT FORK
2S2-23170-20-00
|
$504.99 | ||
|
Unavailable |
|||
|
#35
O-RING
1C3-23147-L0-00
Superseded by 1C3-23147-L1-00
|
$3.35 | ||
|
Unavailable |
|||
|
#36
VALVE COMP.
2S2-2316A-20-00
|
$406.99 | ||
|
Unavailable |
|||
|
#37
O-RING
1C3-23188-L0-00
Superseded by 1C3-23188-L1-00
|
$2.40 | ||
|
Unavailable |
|||
|
#38
O-RING
1C3-23188-N0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
O-RING
1C3-23188-P0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#40
O-RING
1C3-23188-R0-00
Superseded by 1C3-23188-R1-00
|
$3.20 | ||
|
Unavailable |
|||
|
#41
GASKET
1AE-23147-00-00
Superseded by 1W4-23114-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#42
AIR VALVE COMP.
1C3-23190-L0-00
Superseded by 1C3-23190-L1-00
|
$22.99 | ||
|
Unavailable |
|||
|
#43
SEAT, SPRING UPPER
1C3-23142-L0-00
|
$75.99 | ||
|
Unavailable |
|||
|
#44
SPRING, FRONT FORK (K=4.6N/MM)
2S2-23141-L1-00
Superseded by 1C3-23141-H1-00
|
$158.99 | ||
|
Unavailable |
|||
|
#45
BOLT, CAP
5XC-23111-00-00
Superseded by 5XC-23111-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#46
GASKET
2HH-23158-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#47
GASKET
276-23114-00-00
Superseded by 276-23114-01-00
|
$4.10 | ||
|
Unavailable |
|||
|
#48
PROTECTER GUIDE COMP., 1
5XC-2314F-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#49
UNDER BRACKET COMP.
2S2-23340-10-00
|
$451.99 | ||
|
Unavailable |
|||
|
#50
BEARING
93332-00081-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE
90105-08154-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
PROTECTOR 1
5XC-2315H-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
PROTECTOR 2
5XC-2315J-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.49 | ||
|
Unavailable |
|||
|
#56
BOLT
90109-06232-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLAMP
5XC-23466-L0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
CLAMP
5XC-23467-L0-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
