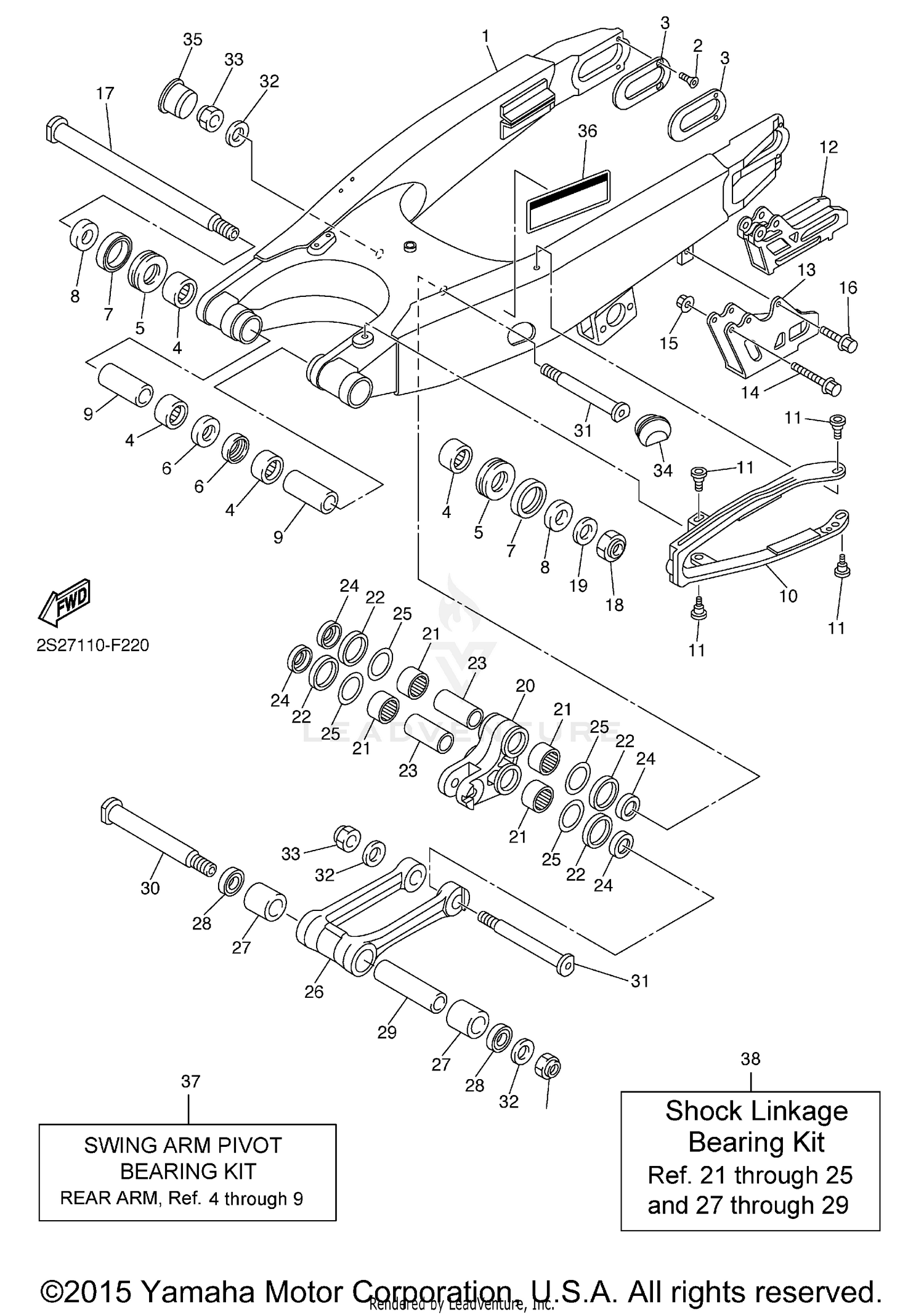

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
2S2-22110-70-00
|
$701.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, COUNTERSUNK
90151-04003-00
Superseded by 90151-04004-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
PATCH
1P8-22355-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93317-22262-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93342-22217-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-22002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93109-28043-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-18012-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-18004-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, GUARD
2S2-22151-70-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, 1
1C3-22969-90-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SUPPORT, CHAIN
2S2-22199-70-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, THRUST 1
2S2-22128-70-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-06104-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-06028-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06105-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT, PIVOT
1C3-22141-10-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
90185-16002-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-16018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
ARM, RELAY
5XC-2217A-90-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING
93315-32166-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93109-25001-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-16025-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR
90387-16010-00
Superseded by 90387-16025-00
|
$32.99 | ||
|
Unavailable |
|||
|
#24
WASHER
90209-16011-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-21014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROD, CONNECTING 1
5XC-2217F-90-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93315-32269-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93109-22019-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-14009-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHAFT 1
5XC-22121-91-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHAFT 2
1C3-22122-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-14020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, SELF-LOCKING
90185-14010-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER
1C3-2135F-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER 2
1C3-2139R-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
LABEL, TIRE
3RV-21668-A0-00
Superseded by 3RV-21668-A1-00
|
$4.30 | ||
|
Unavailable |
|||
|
#37
SWING ARM PIVOT BEARING KIT
1HC-W002C-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SHOCK LINKAGE BEARING KIT
1HC-W002E-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
