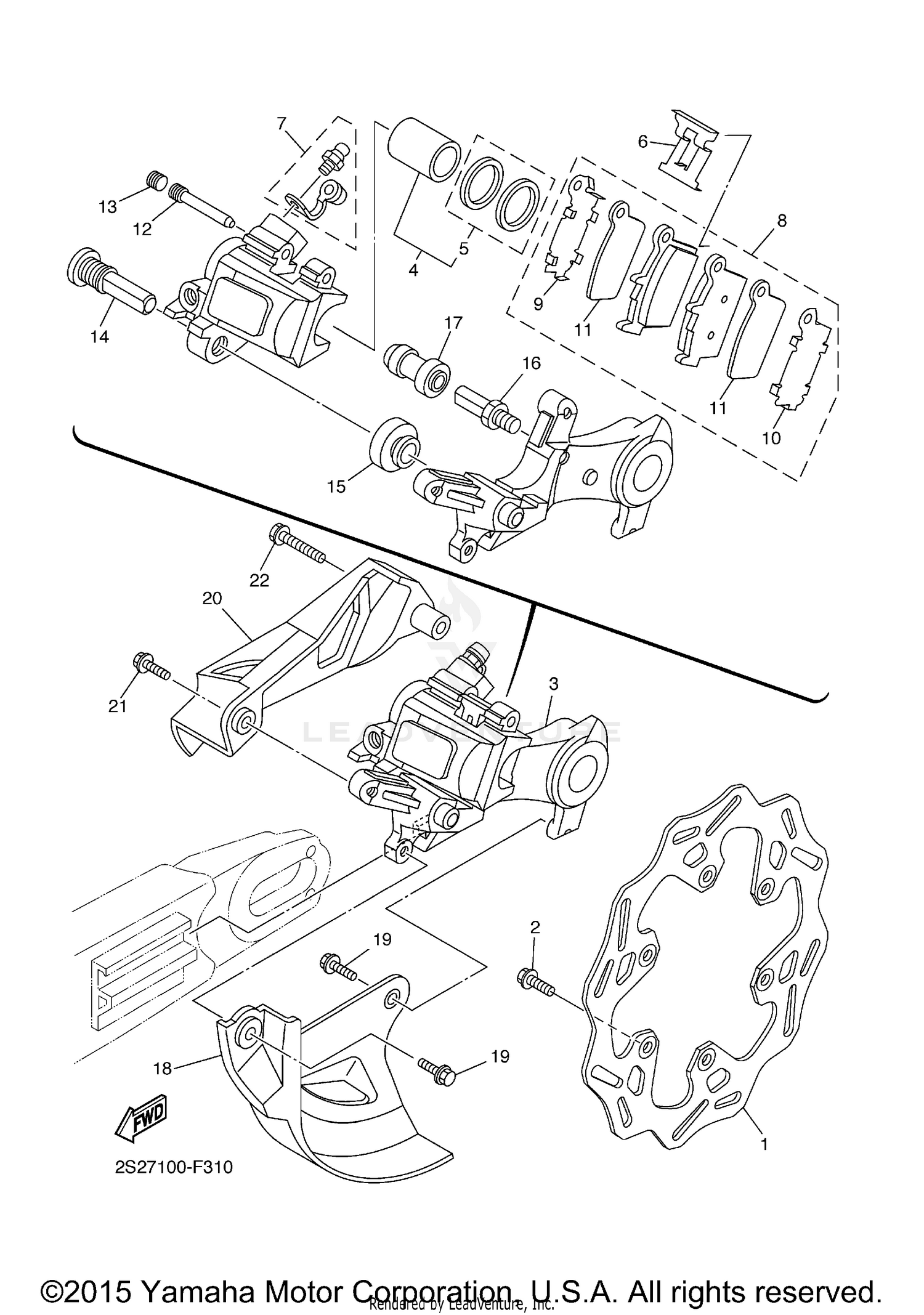

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 2
2S2-2582W-70-00
Superseded by B11-2582W-00-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90105-06108-00
Superseded by 90105-06109-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY, REAR 2
1C3-2580W-50-00
Superseded by 1C3-2580W-52-00
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
5UN-W0057-50-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
5UN-W0047-50-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
5DH-25919-50-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT 2
1C3-W0046-50-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM, CALIPER
5UN-25828-60-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, CALIPER
5UN-25827-60-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
INSULATOR, HEAT
5UN-22898-60-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, PAD
8CR-25924-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG
5DH-25916-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SLIDE
5DH-25914-50-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT, CALIPER
3JD-25917-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, SLIDE
5UN-25914-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT 2
1UY-25937-51-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR, DISC BRAKE
1C3-25718-50-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-06110-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PROTECTOR
1C3-27491-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-06107-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-06111-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
