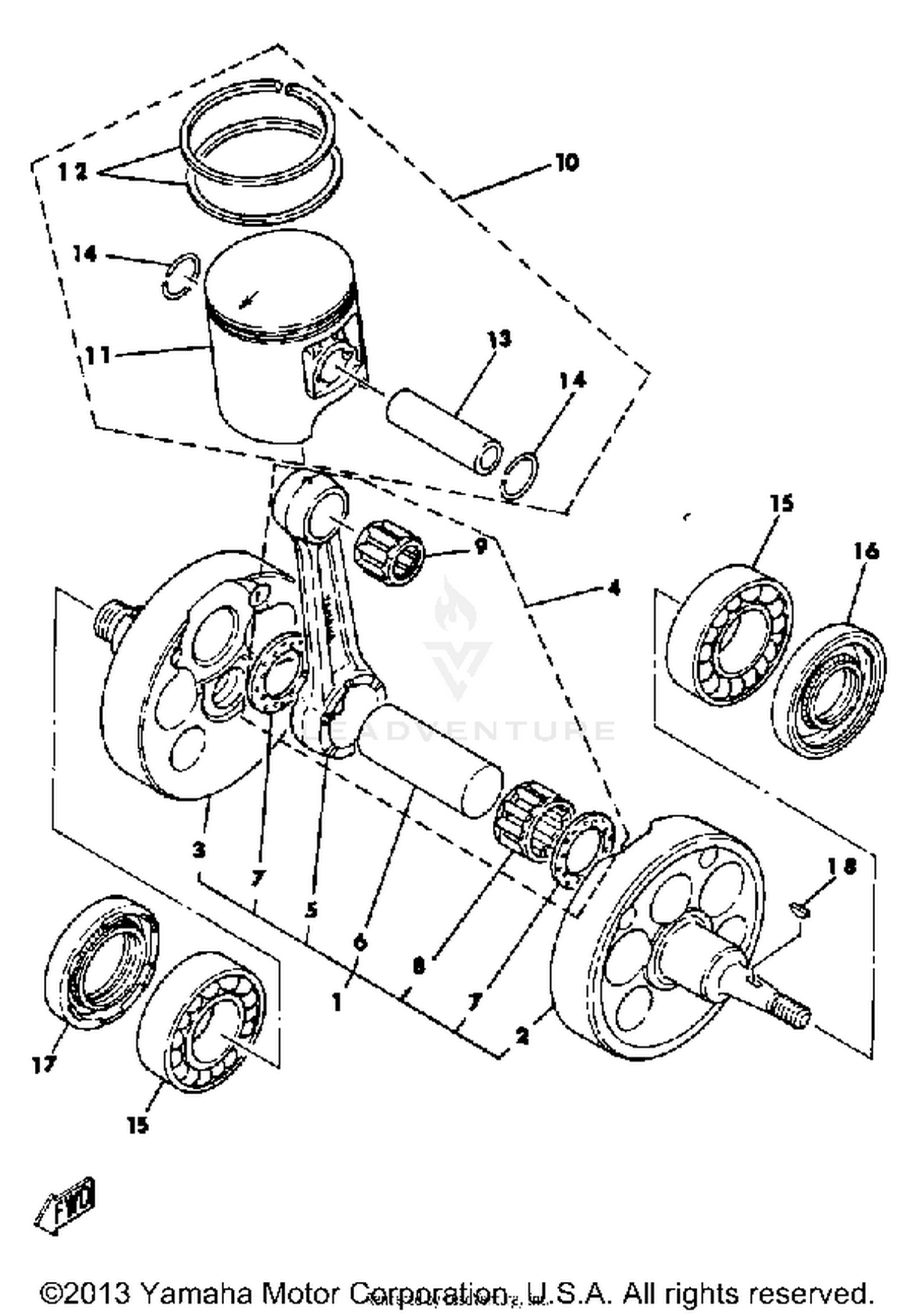

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY (3R5-11400-
40T-11400-00-00
|
$592.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
3R5-11412-00-00
|
$317.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
3R5-11422-00-00
|
$470.99 | ||
|
Unavailable |
|||
|
#4
CONNECTING ROD ASSEMBLY
3R5-11650-00-00
|
$297.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
3R5-11651-00-00
|
$197.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CRANK 1
3R8-11681-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, (90209-25220)
90209-25085-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CYLINDRICAL
93310-425N4-00
Superseded by 93310-425P2-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CYLINDRICAL
93310-418E9-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON KIT STD
4V4-11630-00-00
|
$122.99 | ||
|
Unavailable |
|||
|
#11
PISTON STD
4V4-11631-00-93
|
$80.99 | ||
|
Unavailable |
|||
|
#12
PISTON RINGSET STD
3R5-11601-00-00
|
$50.80 | ||
|
Unavailable |
|||
|
#13
PIN, PISTON
275-11633-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93450-19052-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-30615-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (38W)
93103-30150-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93103-40091-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
KEY, WOODRUFF
90280-03017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON 1 O/S 0.25
4V4-11635-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
4V4-11636-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75
4V4-11637-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT 4TH
4V4-11630-40-00
|
$94.60 | ||
|
Unavailable |
|||
|
#
PISTON 4 O/S 1.00
4V4-11638-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST
3R5-11601-10-00
|
$96.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND
3R5-11601-20-00
|
$63.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD
3R5-11601-30-00
|
$42.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH
3R5-11601-40-00
|
$45.99 | ||
|
Unavailable |
|||
