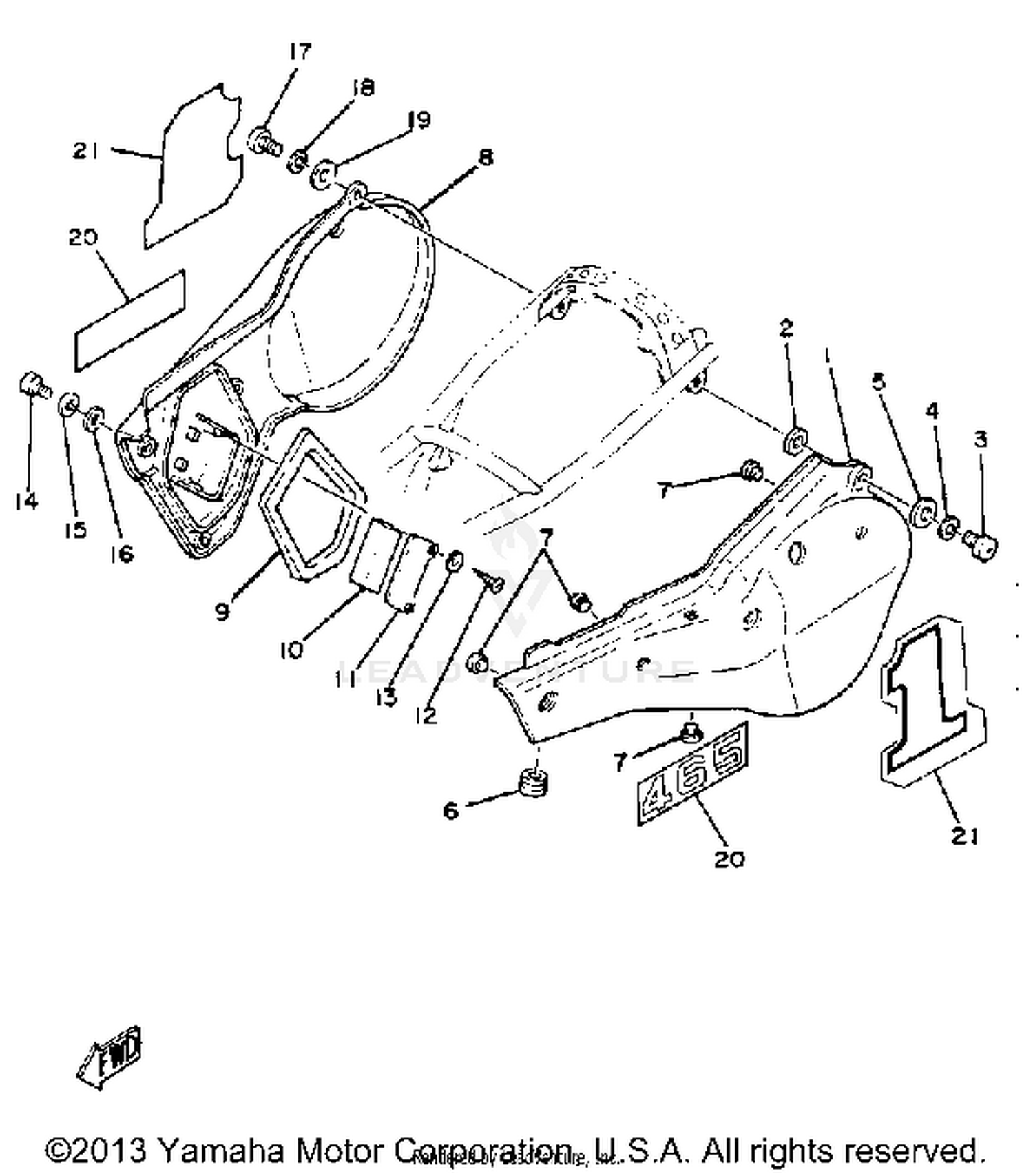

1981 Yamaha YZ 465H SIDE COVER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1 (L.H.)
3R4-21711-00-98
|
$60.99 | ||
|
Unavailable |
|||
|
#2
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06571-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-12053-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LOCATING 1
22W-24181-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, SIDE 2
3R4-21721-01-98
|
$43.99 | ||
|
Unavailable |
|||
|
#9
DAMPER (250H)
4V4-21746-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#10
SEAL 1
3R4-21732-00-00
|
$6.26 | ||
|
Unavailable |
|||
|
#11
PANEL 1
3R4-2172A-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#12
SCREW, TAPPING
97780-40112-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-04200-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#16
WASHER, PLAIN
92990-06200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
90201-06571-00
|
$7.99 | ||
|
Unavailable |
|||
|
#20
EMBLEM
3R5-21737-10-00
|
$3.96 | ||
|
Unavailable |
|||
|
#21
EMBLEM 2
3R2-21782-00-00
|
$9.49 | ||
|
Unavailable |
|||
