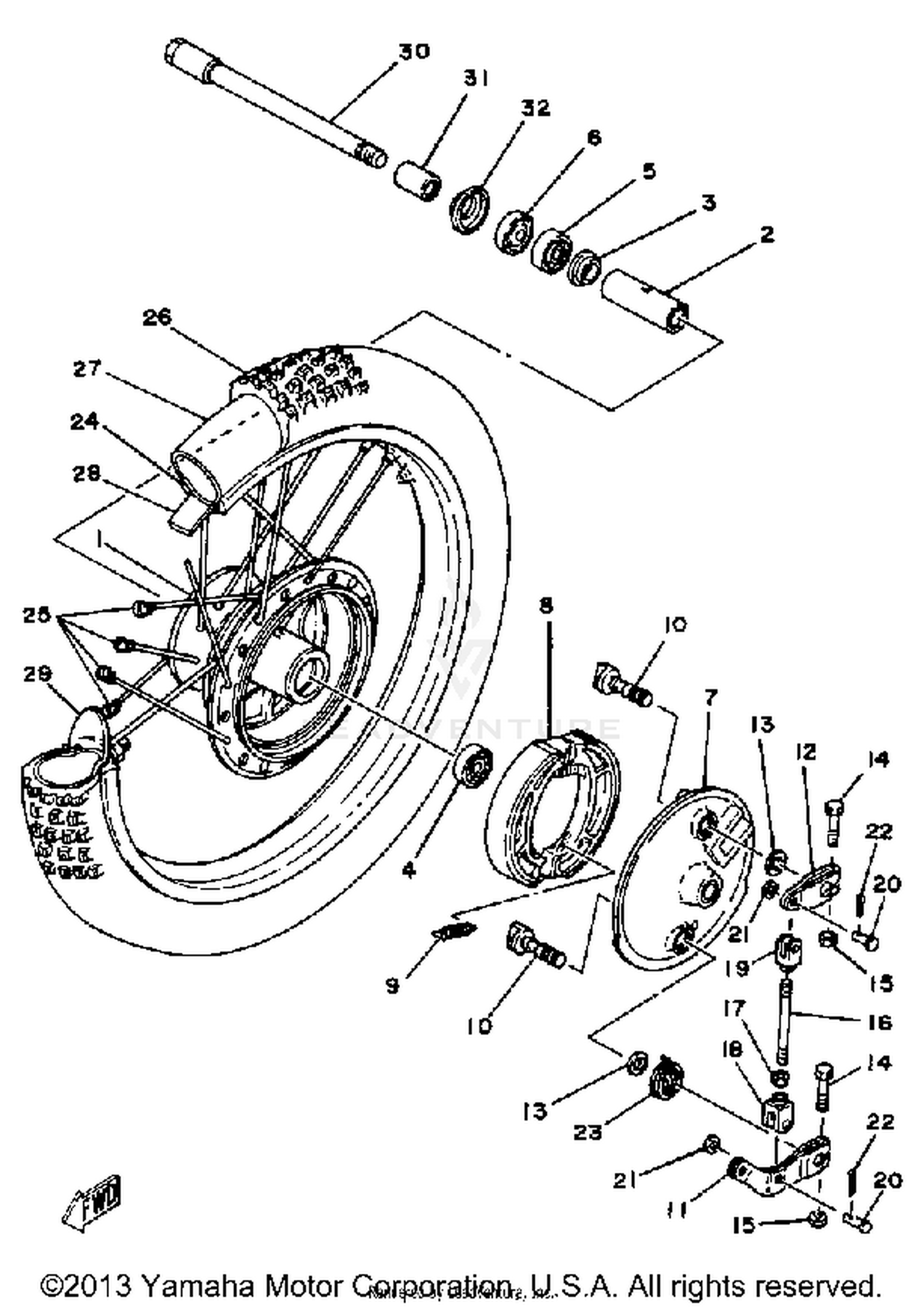

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
1K7-25111-10-98
|
$132.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-15116-00
|
$13.99 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER 2
146-25116-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20226-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93102-20009-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, BRAKE SHOE
3R5-25121-01-98
|
$91.99 | ||
|
Unavailable |
|||
|
#8
BRAKE SHOE KIT
3R5-W2535-00-00
Superseded by 4V4-W253A-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-17328-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT
23X-25151-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#11
LEVER, CAMSHAFT 1
3R5-25155-00-00
|
$17.16 | ||
|
Unavailable |
|||
|
#12
LEVER, CAMSHAFT 2
3R5-25156-00-00
|
$13.14 | ||
|
Unavailable |
|||
|
#13
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#14
BOLT
90101-06278-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROD, CONNECTING
3R5-25161-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
NUT
95380-06700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
END, ROD 1
3R5-25163-00-00
Superseded by 152-25163-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#19
END, ROD 2
3R5-25164-00-00
Superseded by 152-25164-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#20
PIN, CLEVIS
90240-06006-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, TORSION
90508-20425-00
|
$3.10 | ||
|
Unavailable |
|||
|
#24
RIM 1.60X21
94416-21320-00
|
$298.99 | ||
|
Unavailable |
|||
|
#25
SPOKE SET, FRONT
2W6-25104-02-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
300-21 MARK 2 (TT)
94130-21654-00
|
$62.78 | ||
|
Unavailable |
|||
|
#27
TUBE
94230-21126-00
|
$6.99 | ||
|
Unavailable |
|||
|
#28
BAND, RIM
94330-21088-00
|
$3.16 | ||
|
Unavailable |
|||
|
#29
SPACER, BEAD
5X2-25394-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
AXLE, WHEEL
3R4-25181-01-00
|
$61.99 | ||
|
Unavailable |
|||
|
#31
COLLAR
90387-152J3-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER, HUB DUST
322-25118-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
