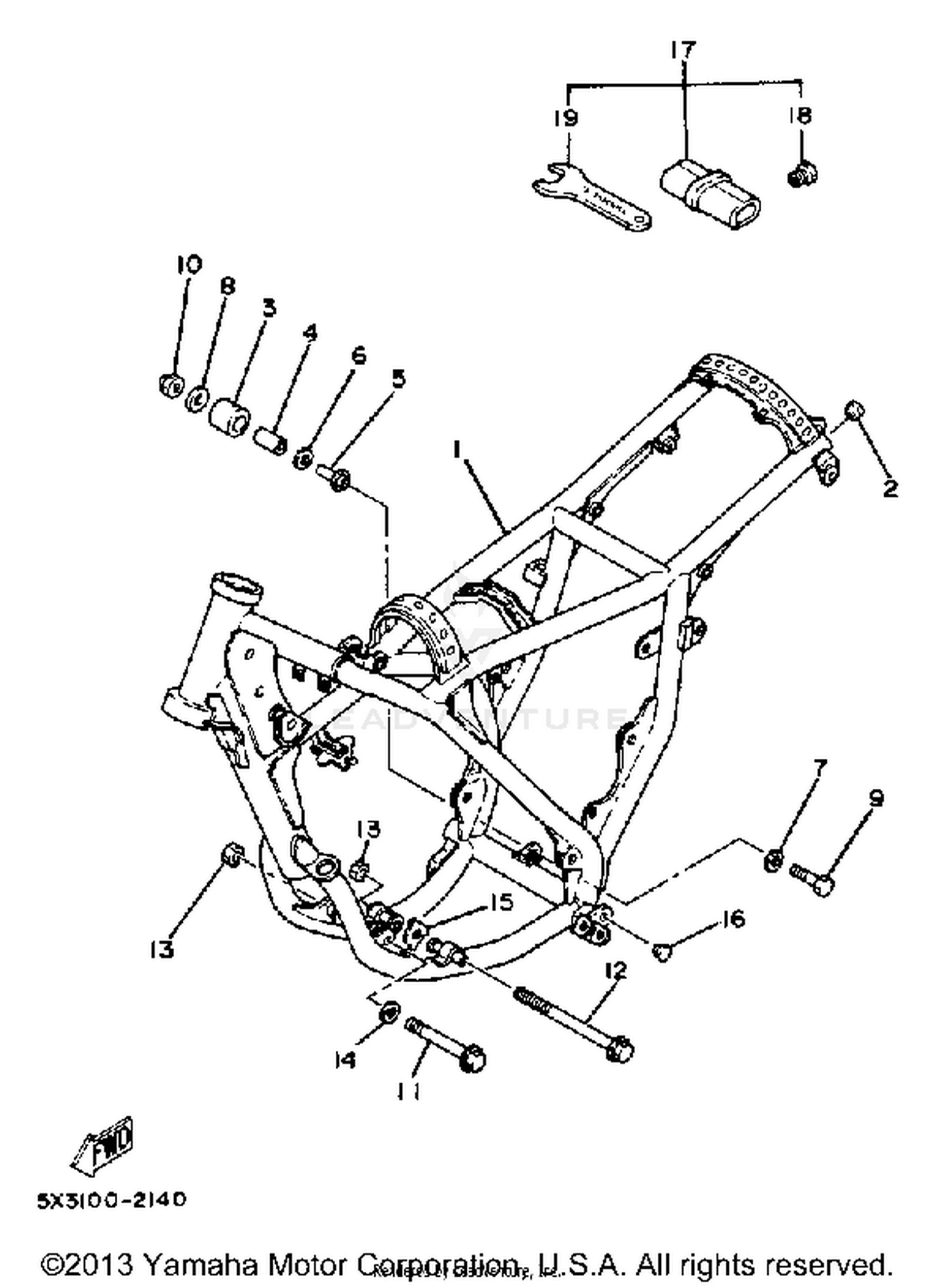

Frame - Tool Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
5X3-21110-01-33
|
$345.99 | ||
|
Unavailable |
|||
|
#2
PLUG
90339-13005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER
30X-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT
3R3-2148A-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
90201-13202-00
Superseded by 90201-13013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-08638-00
|
$2.80 | ||
|
Unavailable |
|||
|
#9
BOLT,HEX
97313-08050-00
Superseded by 97013-08050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95811-08100-00
Superseded by 95817-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WASHER BASED
95811-08165-00
Superseded by 90105-08473-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CLAW
90214-09019-00
|
$9.99 | ||
|
Unavailable |
|||
|
#16
PLUG
90338-12131-00
|
$1.50 | ||
|
Unavailable |
|||
|
#17
TOOL KIT
5X3-28100-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#18
TOOL KIT
5X3-28100-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#19
SPANNER, SPECIAL
10V-28135-00-00
|
$41.99 | ||
|
Unavailable |
|||
