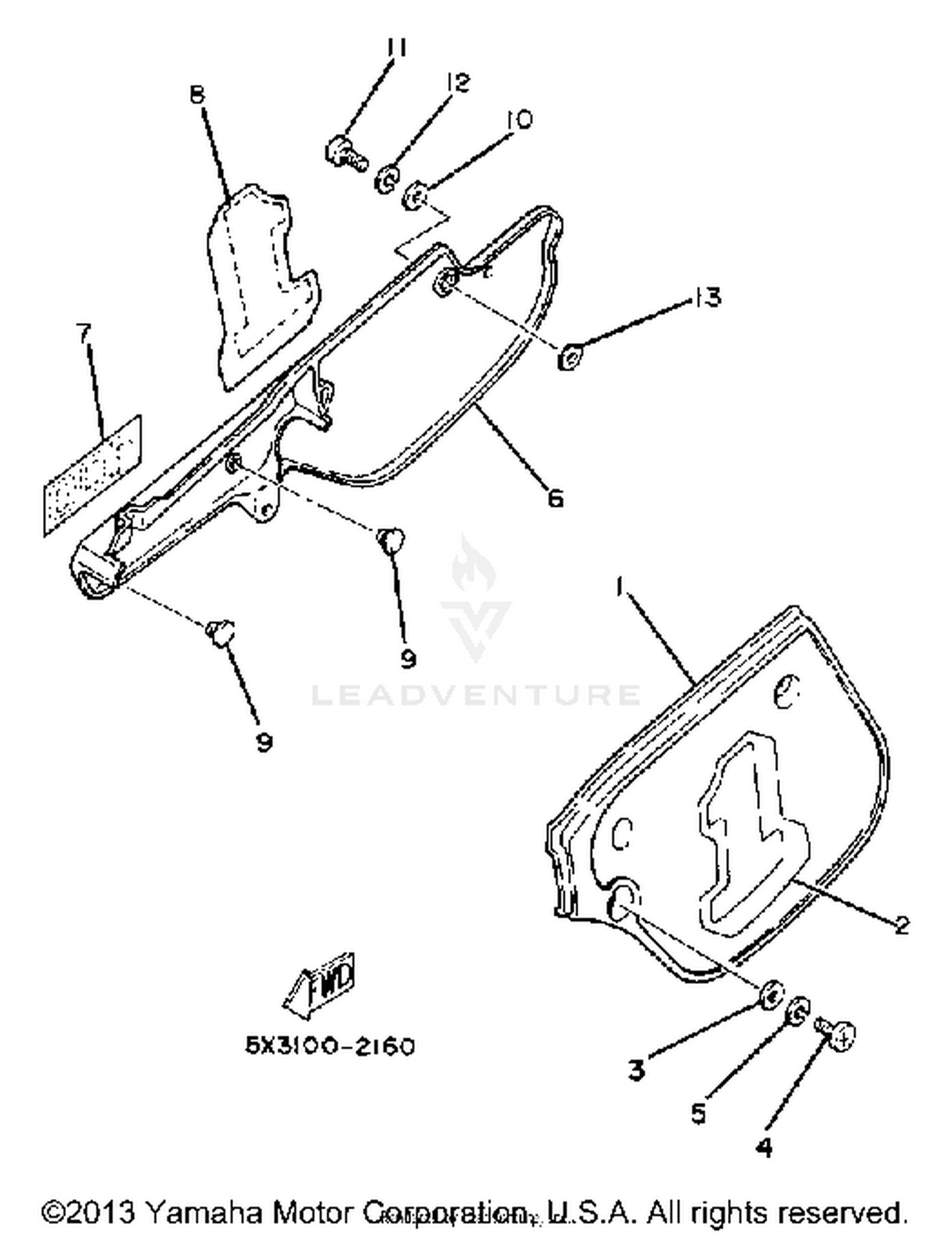

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
5X4-21711-00-98
|
$76.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM 2
3R2-21782-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#3
WASHER, PLATE
90201-06571-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SIDE 2
5X4-21721-00-98
|
$76.99 | ||
|
Unavailable |
|||
|
#7
EMBLEM
5X3-21737-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#8
EMBLEM 2
3R2-21782-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06571-00
|
$8.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
