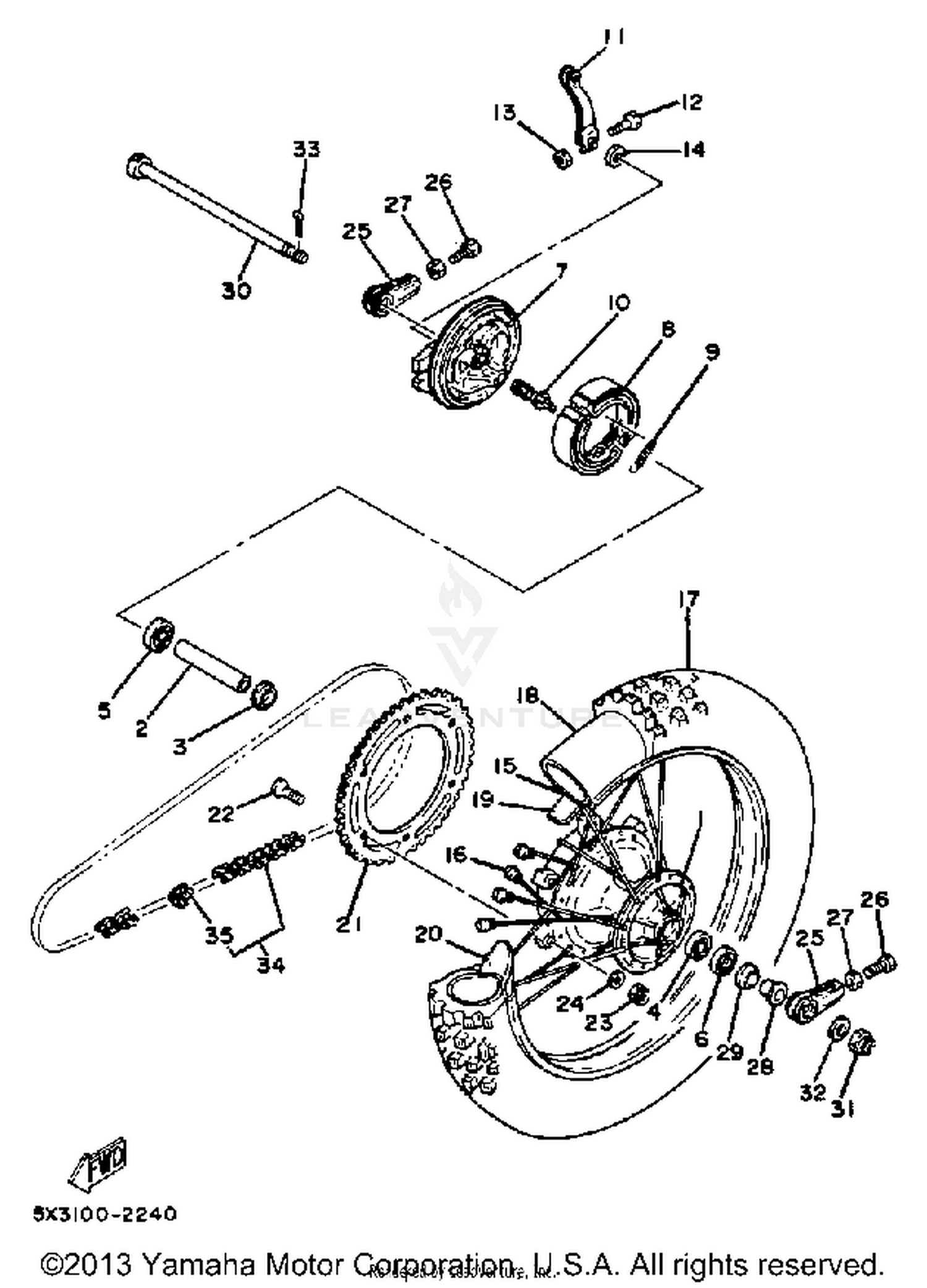

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
3R3-25311-02-98
|
$228.99 | ||
|
Unavailable |
|||
|
#2
SPACER, BEARING
3R3-25317-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL, DD-TYPE
93106-22017-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
PLATE BRAKE SHOE
99999-02025-00
Superseded by 99999-02405-00
|
$141.99 | ||
|
Unavailable |
|||
|
#8
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#9
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT
401-25351-00-00
Superseded by 26A-25351-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#11
LEVER, CAMSHAFT
3R6-25355-01-00
|
$32.99 | ||
|
Unavailable |
|||
|
#12
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM 1.85X18
94418-18245-00
|
$274.99 | ||
|
Unavailable |
|||
|
#16
SPOKE SET, REAR
4V2-25304-00-00
|
$157.99 | ||
|
Unavailable |
|||
|
#17
120/90-18 MK2-TT (110/90-18 61M
94112-182F7-00
|
$145.99 | ||
|
Unavailable |
|||
|
#18
TUBE (2.75-18)
94235-18085-00
Superseded by 94232-18113-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, BEAD
2X3-25394-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#21
SPROCKET, DRIVEN 46T
3R4-25446-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 48T
3R4-25448-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 50T
3R4-25450-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 52T
3R4-25452-01-XX
|
$51.99 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX SKT HEAD
90110-08038-00
|
$4.05 | ||
|
Unavailable |
|||
|
#23
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
PULLER, CHAIN 1
537-25388-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#26
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-15791-00
|
$7.99 | ||
|
Unavailable |
|||
|
#29
COVER, HUB DUST
3R3-25367-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#30
AXLE, WHEEL (2A6-25381-00-00)
5X3-25381-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-15238-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
520 DS 106L
94585-20106-00
|
$47.04 | ||
|
Unavailable |
|||
|
#35
JOINT,CHAIN (DID 520DM-RJ)
94685-20001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
