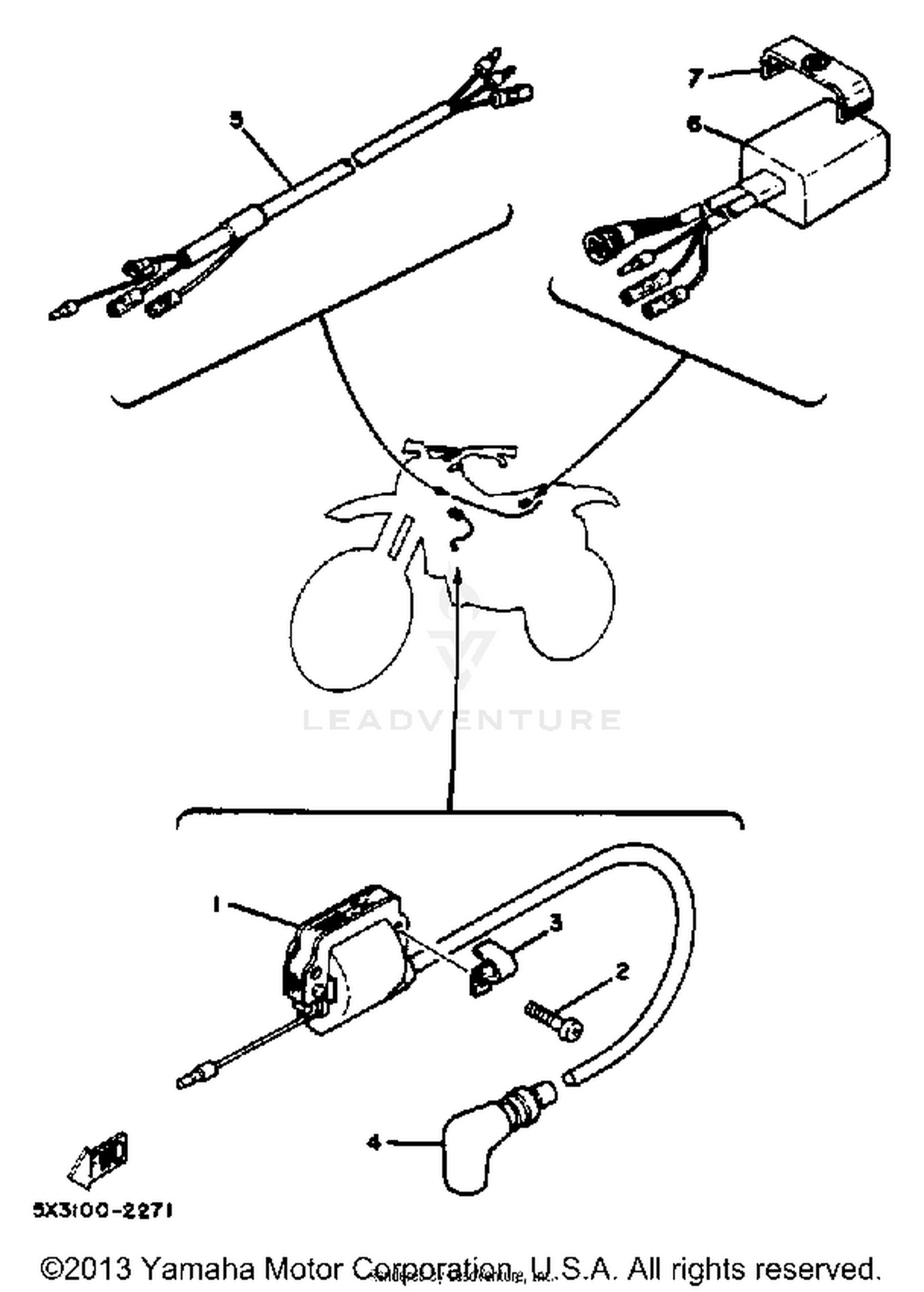

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSEMBLY
2X6-82310-10-00
|
$121.99 | ||
|
Unavailable |
|||
|
#2
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
90462-05005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG CAP ASSY
81E-82370-20-00
Superseded by 8DG-82370-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE HARNESS ASSEMBLY
5X3-82590-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#6
CDI UNIT ASSEMBLY
5X2-85540-10-00
|
$168.99 | ||
|
Unavailable |
|||
|
#7
BAND, TOOL
21V-21376-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
