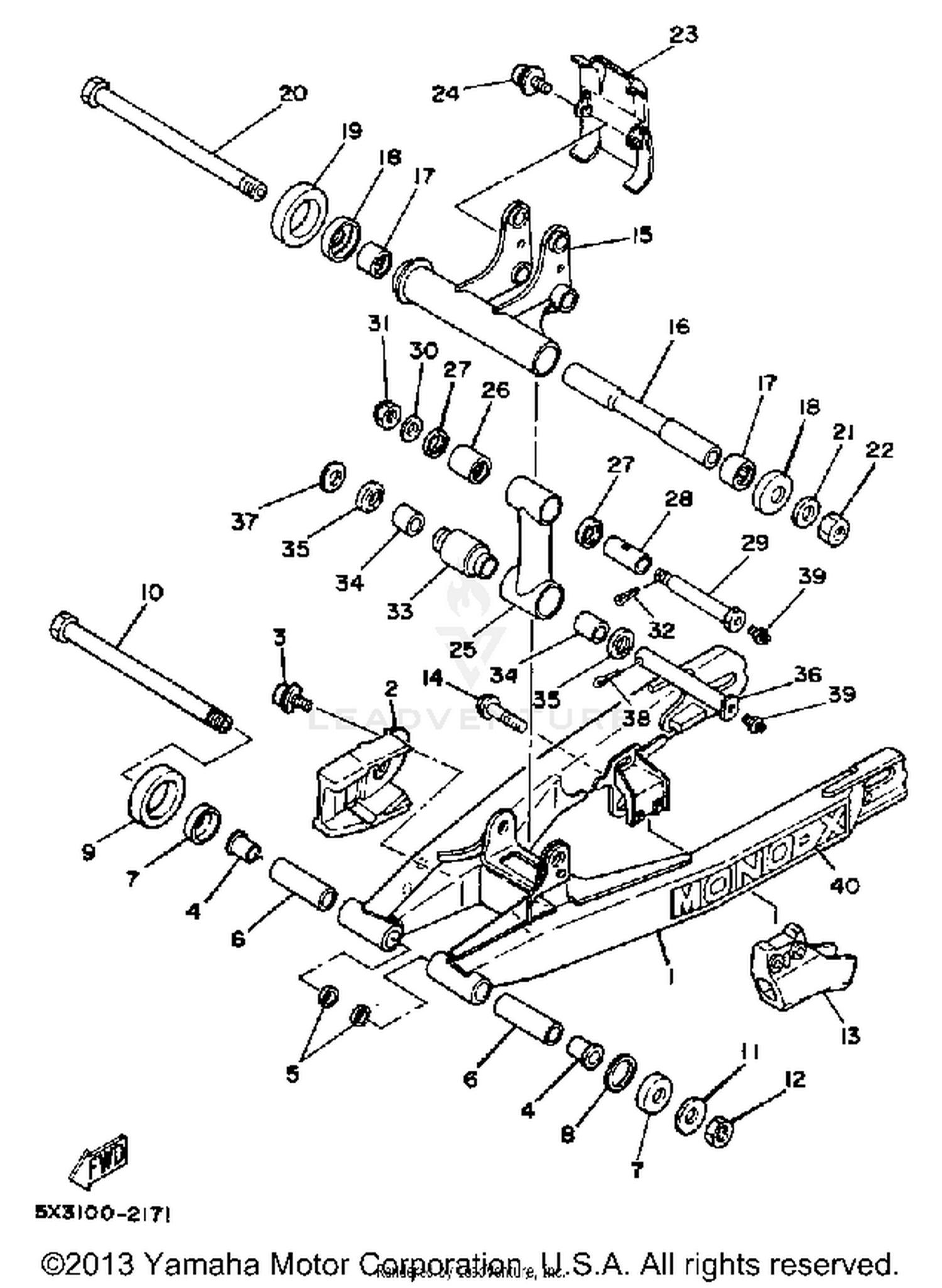

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
5X3-22110-00-35
|
$273.99 | ||
|
Unavailable |
|||
|
#2
PORTECTOR, CHAIN
5X3-22147-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#3
SCREW, WITH WASHER
90159-05026-00
Superseded by 90159-05121-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH
3Y1-22184-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93109-22019-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, SOLID
90380-16098-00
|
$8.86 | ||
|
Unavailable |
|||
|
#7
COVER, THRUST 1
322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, GUARD
1W1-22151-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#10
SHAFT, PIVOT
5X4-22141-01-00
|
$116.99 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-160F6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#13
SUPPORT, CHAIN
5X4-22199-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95811-08040-00
Superseded by 95817-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
ARM, RELAY
5X3-2217A-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-163F6-00
|
$24.99 | ||
|
Unavailable |
|||
|
#17
BEARING, CYLINDER.#17
93317-22208-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, THRUST 1
322-22128-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#19
SEAL, GUARD
1W1-22151-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#20
SHAFT, PIVOT
5X4-22141-01-00
|
$116.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-160F6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#23
PROTECTOR
5X3-21652-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#24
SCREW, WITH WASHER
90159-05026-00
Superseded by 90159-05121-00
|
$3.90 | ||
|
Unavailable |
|||
|
#25
ROD, CONNECTING 1
5X3-2217F-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#26
BEARING, CYLINDER #15
93315-22046-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93109-20029-00
Superseded by 93109-20076-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BUSH, SOLID
90380-14095-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90109-12646-00
|
$21.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, SELF-LOCKING
90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#33
BUSH 1
5X6-22123-00-00
|
$19.14 | ||
|
Unavailable |
|||
|
#34
BUSH, BIMETAL FORM
90384-16156-00
|
$5.99 | ||
|
Unavailable |
|||
|
#35
COVER, DUST
5X6-2217H-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#36
PIN, SPEC''L SHAPE
90249-16154-00
|
$11.17 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
90201-16243-00
Superseded by 90201-17682-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN. COTTER
91490-40030-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#40
EMBLEM, REAR ARM
5X6-2218A-00-00
|
$7.49 | ||
|
Unavailable |
|||
