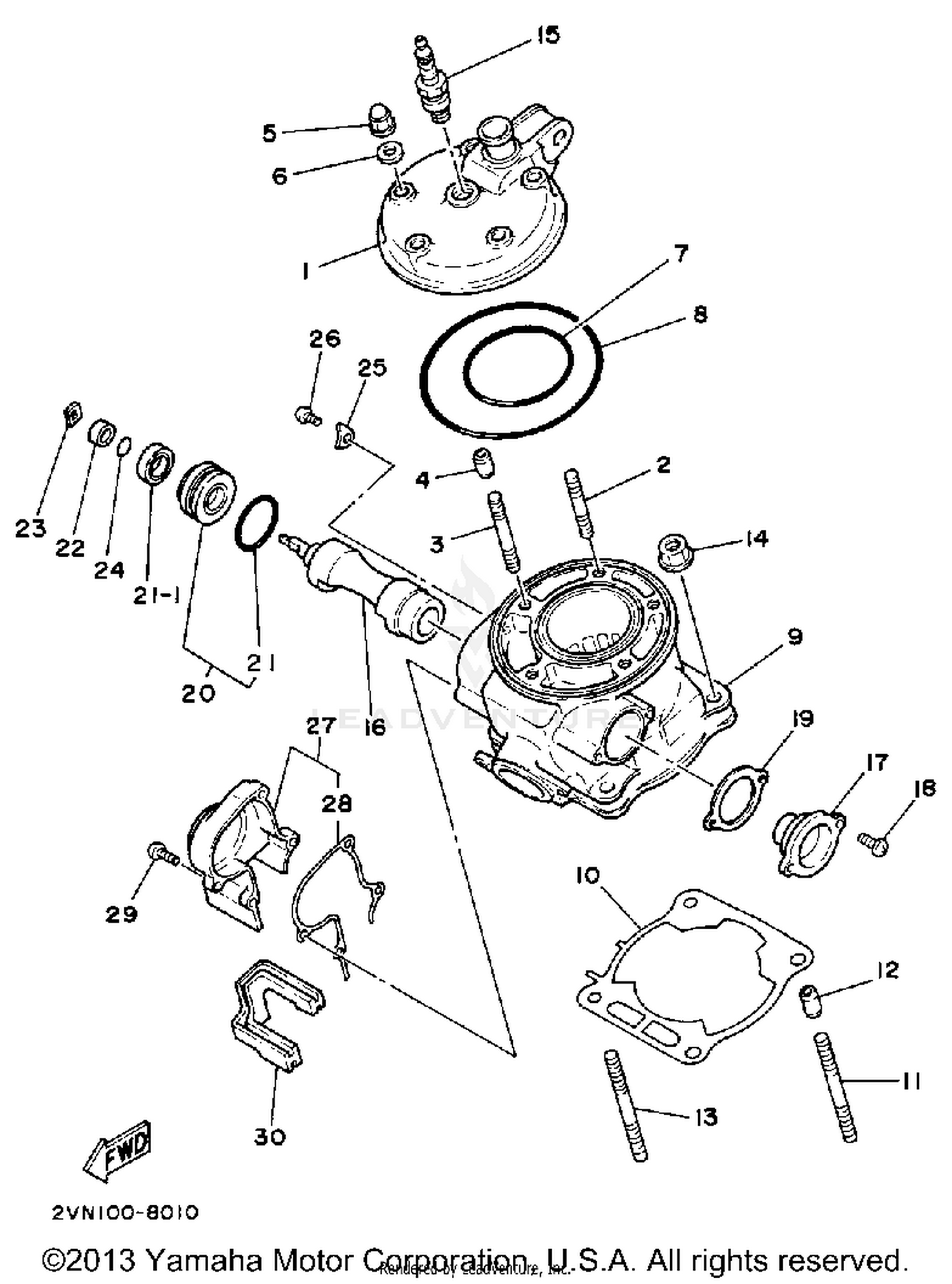

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER 1
2VN-11111-00-00
|
$350.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08394-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
90116-08392-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
90176-08026-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-65721-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93211-07720-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYLINDER 1
2VN-11311-00-00
|
$599.99 | ||
|
Unavailable |
|||
|
#10
GASKET, CYLINDER
1LX-11351-00-00
Superseded by 1LX-11351-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, STUD
90116-08388-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#13
BOLT, STUD
90116-08318-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-08491-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
B9EG NGK SPLUG 4P
NGK-B9EG0-00-00
Superseded by B9E-G0000-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
VALVE 1
2VN-1131A-01-00
|
$258.99 | ||
|
Unavailable |
|||
|
#17
HOLDER 1
39W-W1132-00-00
|
$123.99 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET HOLDER
5X4-1131N-00-00
Superseded by 5X4-1131N-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER 2 ASSEMBLY
2VN-Y113F-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#21
O-RING
93210-270A8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-102F3-00
Superseded by 90387-102W0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOSS, COLLAR
5X5-11937-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#24
O-RING
93210-09192-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, THRUST 1
47X-11915-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98506-05008-00
Superseded by 98507-05008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOUSING 2
3JD-11992-00-00
Superseded by 3JD-11992-10-00
|
$126.99 | ||
|
Unavailable |
|||
|
#28
GASKET
2VN-11993-00-00
Superseded by 2VN-11993-01-00
|
$4.55 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
98586-05016-00
Superseded by 90157-05M19-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL, HOUSING
1LX-11995-01-00
|
$44.99 | ||
|
Unavailable |
|||
