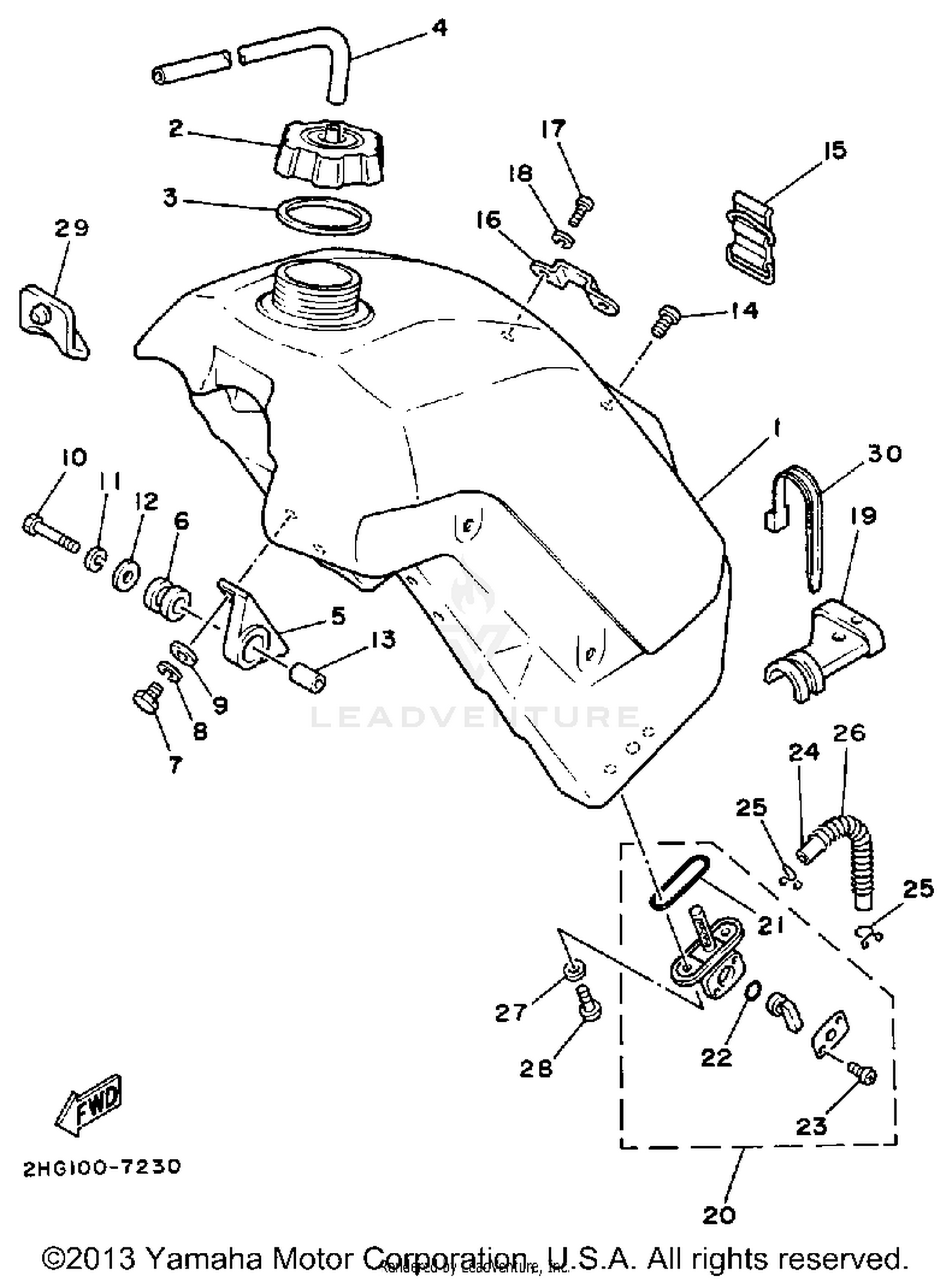

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
1LX-24110-00-00
Superseded by 1LX-24110-01-00
|
$481.99 | ||
|
Unavailable |
|||
|
#2
BODY, CAP
5X7-24611-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CAP
5X7-24612-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE 5
90445-09100-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, DAMPER
24X-24144-00-00
Superseded by 5XE-24144-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-18354-00
Superseded by 90480-18549-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON
97013-06035-00
Superseded by 97014-06035-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-06697-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-06387-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BIND
98980-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND, TNK FITTING 1
23X-24173-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#16
BRACKET, SEAT
5X6-2412F-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#19
DAMPER, LOCATING 1
1LX-24181-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#20
FUEL COCK ASSY 1
2VN-24500-00-00
Superseded by 2VN-24500-02-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL, COCK
4X8-24534-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (L210)
90445-110F5-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, COMPRESSION
90501-062E7-00
|
$2.58 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER, LOCATING 4
23X-24184-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#30
CLAMP
90464-14117-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
