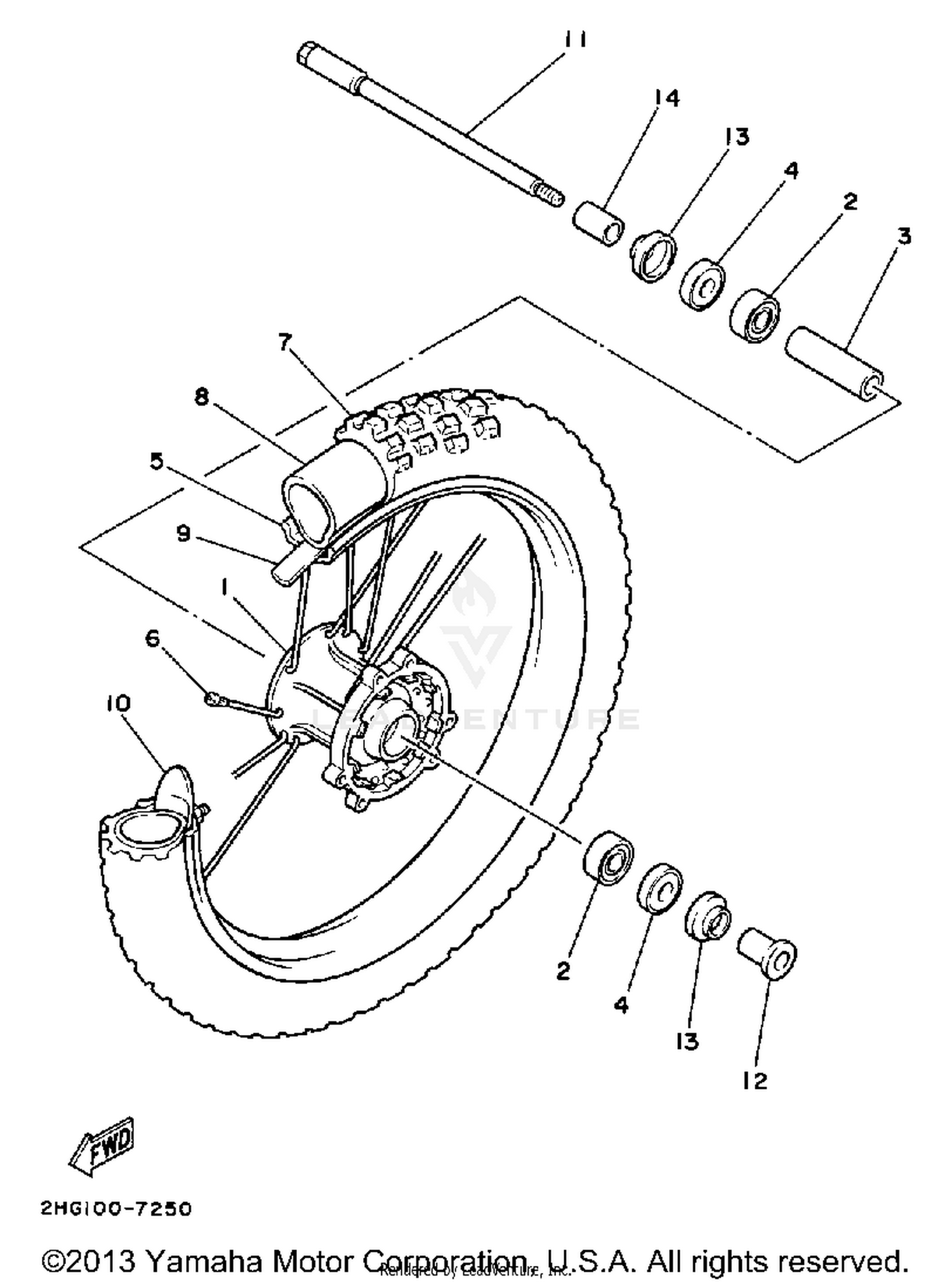

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
2HH-25111-00-98
|
$208.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
90560-15240-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL (SD 20-35-5)
93102-20281-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM 1.60
94416-21455-00
|
$406.99 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, FRONT
1LX-25104-00-00
|
$143.99 | ||
|
Unavailable |
|||
|
#7
80/100-21 - 51M - M6
94108-217X2-00
Superseded by 94108-21012-00
|
$181.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE (MCS 2.75/3.00-21 TR6)
94227-21123-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, RIM (1.60-21)
94307-21145-00
Superseded by 94330-21084-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, BEAD
5X2-25394-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE, WHEEL
55U-25181-01-00
Superseded by 4GY-25181-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-157L9-00
|
$7.99 | ||
|
Unavailable |
|||
|
#13
COVER, HUB DUST
322-25118-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-156R7-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
