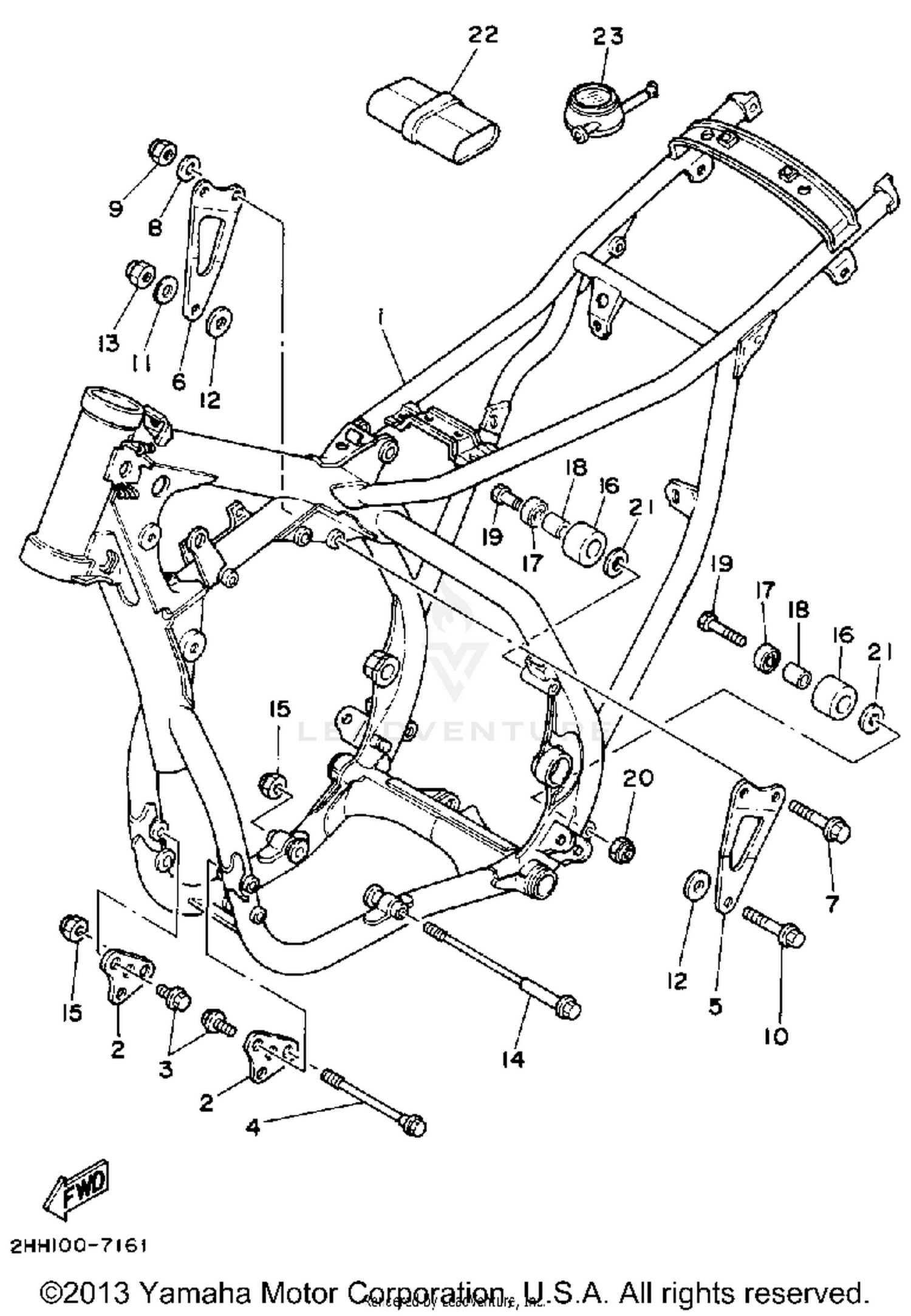

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
2HH-21110-00-UJ
|
$938.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FRONT UPPER 1
24Y-21415-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95821-08020-00
Superseded by 95817-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WASHER BASED
90105-08214-00
Superseded by 90105-08465-00
|
$2.40 | ||
|
Unavailable |
|||
|
#5
BRACKET, REAR UPPER 1
1LU-21425-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#6
BRACKET, REAR UPPER 2
1LU-21426-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95811-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90202-08022-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95811-10055-00
Superseded by 95817-10055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WASHER BASED
90105-08449-00
|
$13.99 | ||
|
Unavailable |
|||
|
#15
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
TENSIONER
2HH-22178-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93300-60804-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-086N4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95023-08045-00
Superseded by 95024-08045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-081A6-00
Superseded by 90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
TOOL KIT (1LU-28100-00)
1LX-28100-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#23
GAUGE, AIR
2X4-2811A-01-00
|
$83.99 | ||
|
Unavailable |
|||
