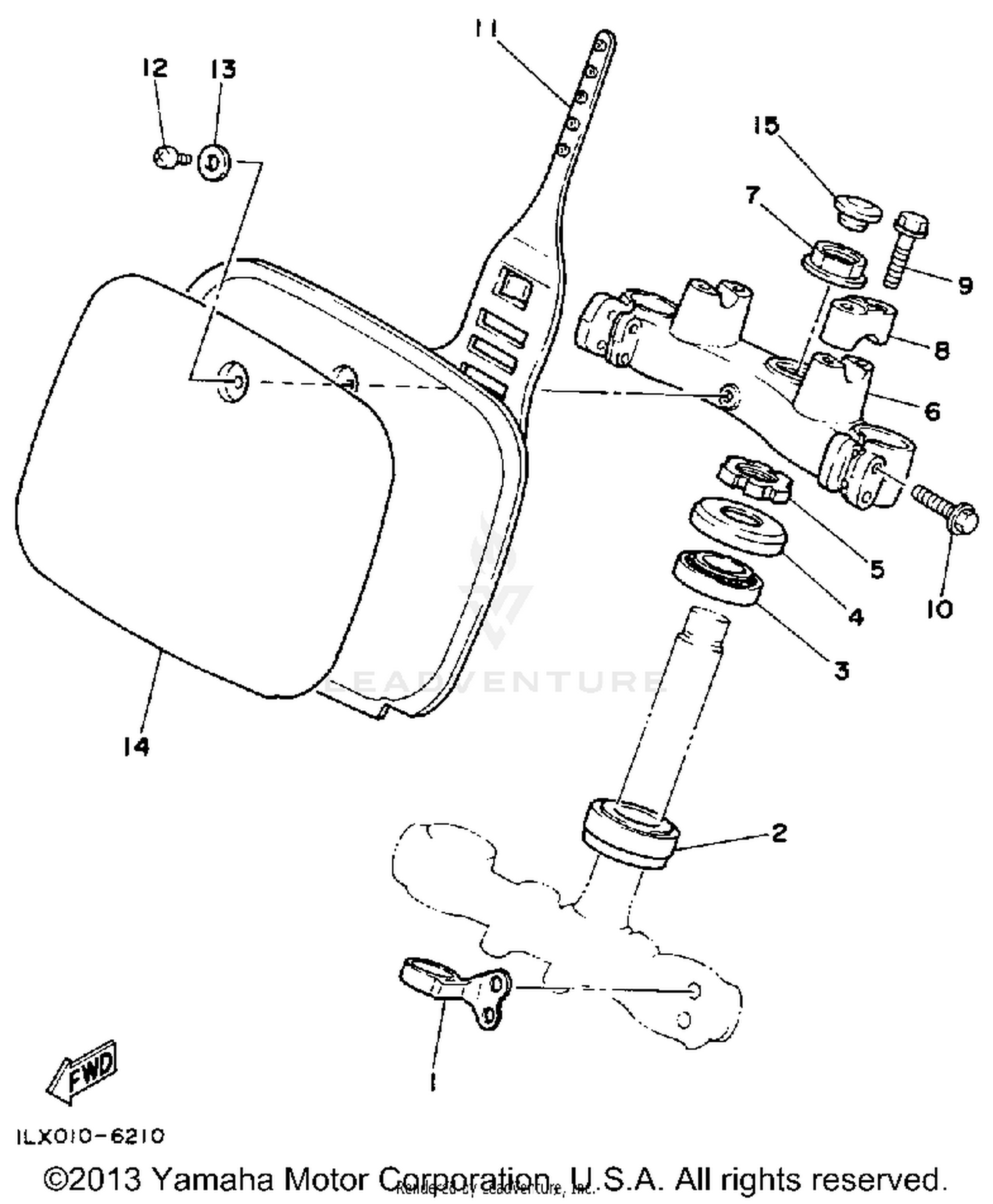

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, CABLE
3R4-23389-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93332-00008-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93332-00001-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, BALL RACE 2
3HE-23416-00-00
Superseded by 1W1-23416-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90179-25033-00
Superseded by 90179-25004-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CROWN, HANDLE
39W-23435-01-98
|
$143.99 | ||
|
Unavailable |
|||
|
#7
NUT
90179-22330-00
|
$12.49 | ||
|
Unavailable |
|||
|
#8
HOLDER, HANDLE UPPER
1E6-23441-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95811-08035-00
Superseded by 95817-08035-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08091-00
Superseded by 95814-08040-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, NUMBER
3XJ-23485-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-06571-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
EMBLEM
1LX-23395-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#15
CAP
34K-2319U-00-00
|
$19.99 | ||
|
Unavailable |
|||
