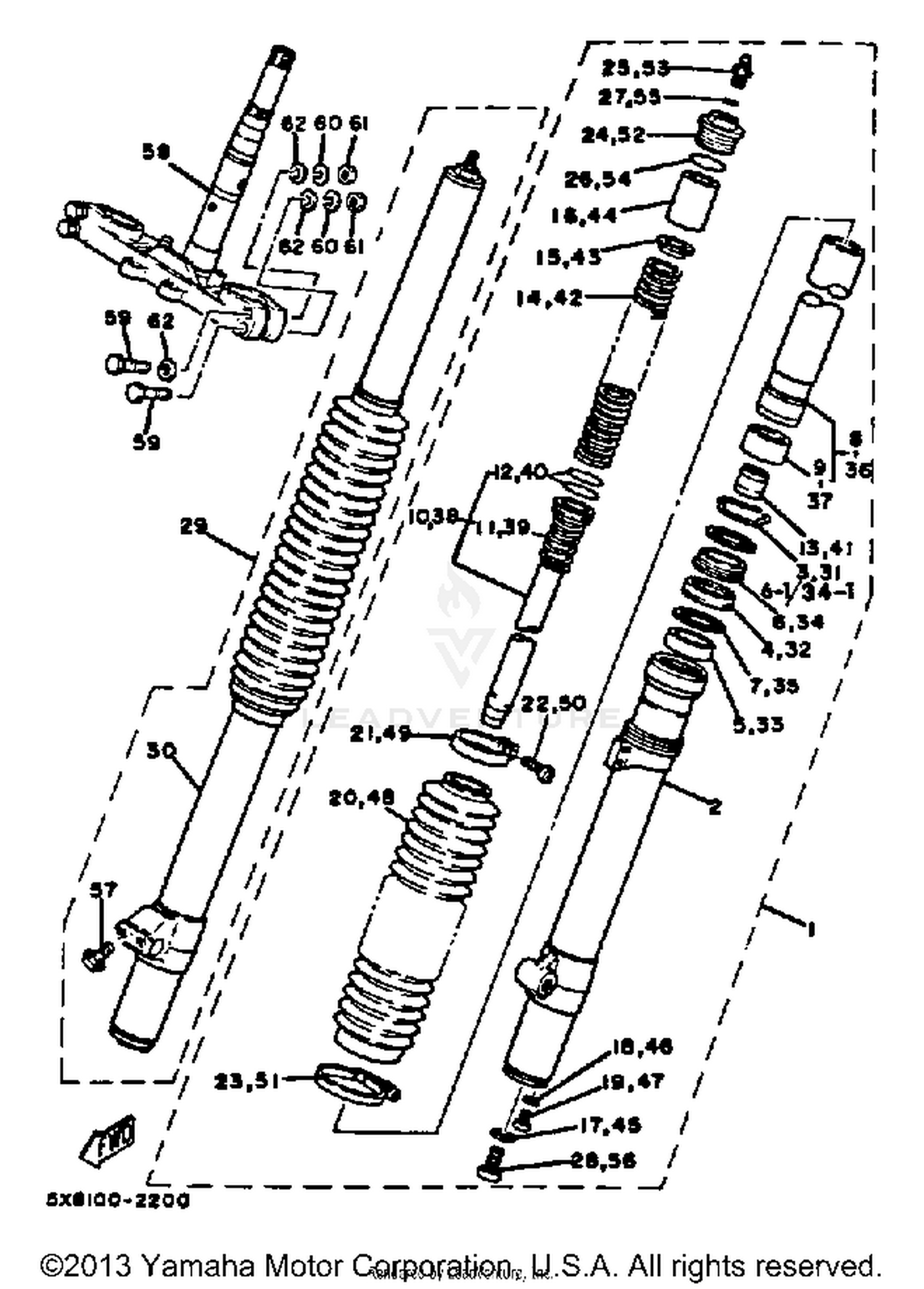

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
5X6-23102-L0-00
|
$574.99 | ||
|
Unavailable |
|||
|
#
COVER, DUST SEAL
4V4-23148-L0-00
|
$12.16 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
5X6-23126-L0-00
|
$359.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
23X-23145-L0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
4V4-23144-L0-00
|
$21.99 | ||
|
Unavailable |
|||
|
#7
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE 1
4V4-23110-L0-00
|
$328.99 | ||
|
Unavailable |
|||
|
#9
PISTON, FRONT FORK
4V4-23171-L0-00
|
$63.99 | ||
|
Unavailable |
|||
|
#10
CYLINDER, FRTFRK
5X6-23170-L0-00
|
$53.10 | ||
|
Unavailable |
|||
|
#11
SPRING, SUB
5X6-23152-L0-00
|
$12.49 | ||
|
Unavailable |
|||
|
#12
RING, PISTON FRONT FORK
4V4-23157-L0-00
|
$19.99 | ||
|
Unavailable |
|||
|
#13
SPINDLE, TAPER
4V4-23173-L0-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FRONT FORK
5X6-23141-L0-00
|
$45.40 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK SOFT
5X6-23141-10-00
|
$50.80 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK HARD
5X6-23141-20-00
|
$71.32 | ||
|
Unavailable |
|||
|
#15
SEAT, SPRING UPPER
4V4-23142-L0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER (L=80)
5X6-23118-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#
SPACER
5X6-23118-L0-00
|
$8.99 | ||
|
Unavailable |
|||
|
#17
GASKET
4V4-23158-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT, FRONT FORK
5X6-23191-L0-00
|
$62.99 | ||
|
Unavailable |
|||
|
#21
BAND
4V4-23192-L0-00
|
$9.40 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
4V4-23194-L0-00
Superseded by 98517-04025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND
23X-23489-L0-00
|
$12.49 | ||
|
Unavailable |
|||
|
#24
BOLT, CAP
5X6-23111-L0-00
|
$46.99 | ||
|
Unavailable |
|||
|
#25
AIR VALVE
4V4-23190-L0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
4V4-23188-L0-00
Superseded by 4V4-23188-L1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#27
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
4V4-23181-L0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
FRONT FORK ASSEMBLY R
5X6-23103-L0-00
|
$574.99 | ||
|
Unavailable |
|||
|
#30
TUBE, OUTER 2
5X6-23136-L0-00
|
$446.99 | ||
|
Unavailable |
|||
|
#31
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#32
UNAVAILABLE IN PRICE BOOK
4VA-23145-L0-00
|
|||
|
Unavailable |
|||
|
#33
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#34
SEAL, DUST
4V4-23144-L0-00
|
$21.99 | ||
|
Unavailable |
|||
|
#35
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#36
INNER TUBE 1
4V4-23110-L0-00
|
$328.99 | ||
|
Unavailable |
|||
|
#37
PISTON, FRONT FORK
4V4-23171-L0-00
|
$63.99 | ||
|
Unavailable |
|||
|
#38
CYLINDER, FRTFRK
5X6-23170-L0-00
|
$53.10 | ||
|
Unavailable |
|||
|
#39
SPRING, SUB
5X6-23152-L0-00
|
$12.49 | ||
|
Unavailable |
|||
|
#40
RING, PISTON FRONT FORK
4V4-23157-L0-00
|
$19.99 | ||
|
Unavailable |
|||
|
#41
SPINDLE, TAPER
4V4-23173-L0-00
|
$31.99 | ||
|
Unavailable |
|||
|
#42
SPRING, FRONT FORK
5X6-23141-L0-00
|
$45.40 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK SOFT
5X6-23141-10-00
|
$50.80 | ||
|
Unavailable |
|||
|
#
SPRING, FRTFRK HARD
5X6-23141-20-00
|
$71.32 | ||
|
Unavailable |
|||
|
#43
SEAT, SPRING UPPER
4V4-23142-L0-00
|
$10.49 | ||
|
Unavailable |
|||
|
#44
SPACER (L=80)
5X6-23118-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#
SPACER
5X6-23118-L0-00
|
$8.99 | ||
|
Unavailable |
|||
|
#45
GASKET
4V4-23158-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#46
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#47
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#48
BOOT, FRONT FORK
5X6-23191-L0-00
|
$62.99 | ||
|
Unavailable |
|||
|
#49
BAND
4V4-23192-L0-00
|
$9.40 | ||
|
Unavailable |
|||
|
#50
SCREW, PAN HEAD
4V4-23194-L0-00
Superseded by 98517-04025-00
|
$2.95 | ||
|
Unavailable |
|||
|
#51
BAND
23X-23489-L0-00
|
$12.49 | ||
|
Unavailable |
|||
|
#52
BOLT, CAP
5X6-23111-L0-00
|
$46.99 | ||
|
Unavailable |
|||
|
#53
AIR VALVE
4V4-23190-L0-00
|
$56.99 | ||
|
Unavailable |
|||
|
#54
O-RING
4V4-23188-L0-00
Superseded by 4V4-23188-L1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#55
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#56
BOLT, HEXAGON SOCKET HEAD
4V4-23181-L0-00
|
$13.99 | ||
|
Unavailable |
|||
|
#57
BOLT, HEXAGON SOCKET HEAD
5X6-23181-L0-00
|
$5.99 | ||
|
Unavailable |
|||
|
#58
UNDER BRACKET
4V4-23340-L0-33
|
$202.99 | ||
|
Unavailable |
|||
|
#59
BOLT
90101-08340-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#60
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#62
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#63
GUIDE, CABLE
3R4-23389-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
