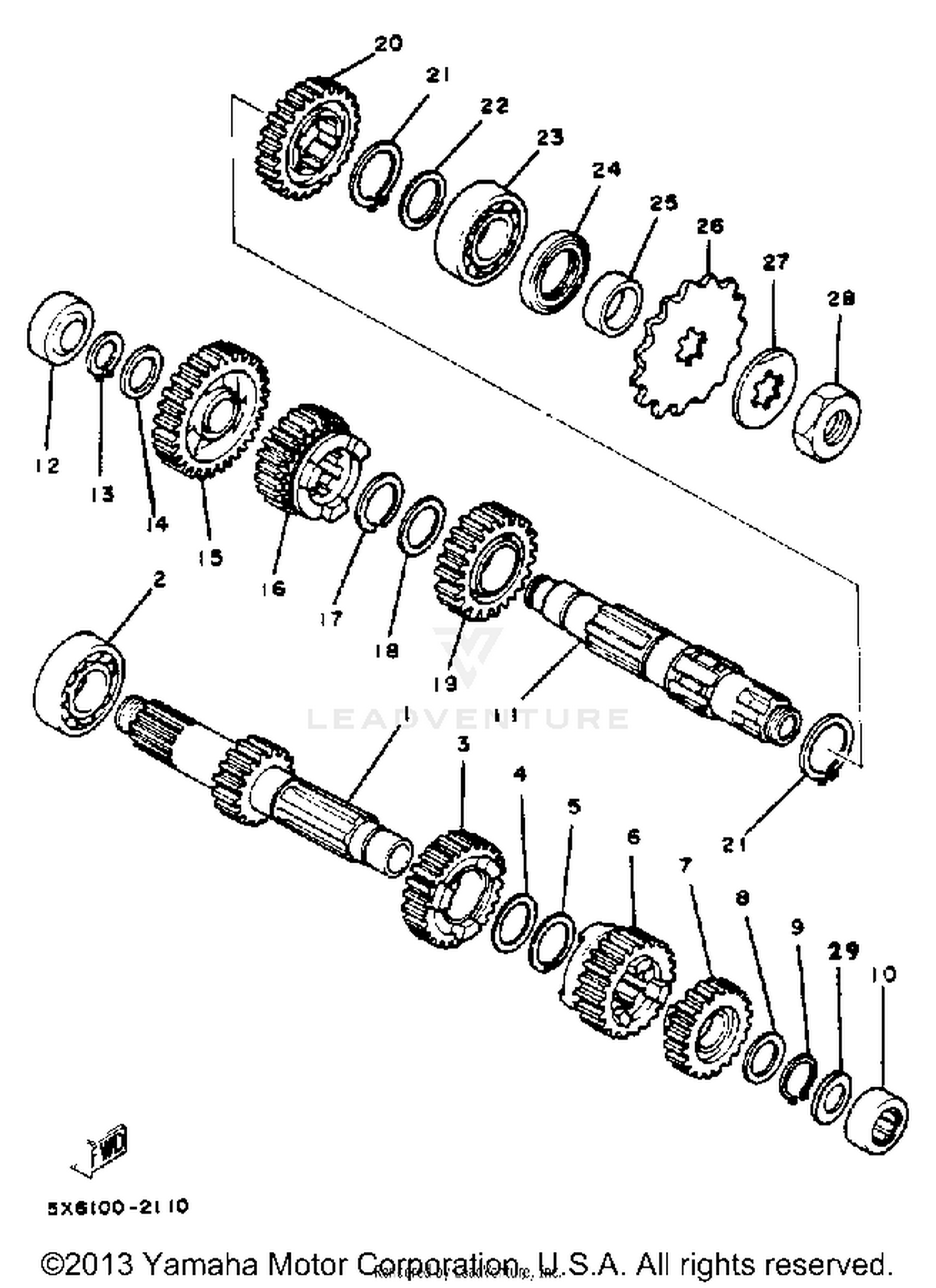

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
5X6-17411-00-00
|
$115.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-20540-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 4TH PINION (24T)
5X6-17141-00-00
|
$77.03 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION (22T)
5X6-17131-00-00
|
$138.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION
5X6-17121-00-00
|
$51.36 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90201-203E7-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, CYLINDRICAL
93311-62035-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE, DRIVE
5X6-17421-00-00
|
$91.91 | ||
|
Unavailable |
|||
|
#12
BEARING, CYLINDRICAL
93311-62035-00
|
$52.99 | ||
|
Unavailable |
|||
|
#13
CIRCLIP
93410-20038-00
|
$3.55 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 1ST WHEEL (28T)
5X6-17211-00-00
|
$161.99 | ||
|
Unavailable |
|||
|
#16
GEAR, 4TH WHEEL (20T)
5X6-17241-00-00
|
$152.99 | ||
|
Unavailable |
|||
|
#17
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
GEAR, 3RD WHEEL (23T)
5X6-17231-00-00
|
$84.34 | ||
|
Unavailable |
|||
|
#20
GEAR, 2ND WHEEL (25T)
5X6-17221-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#21
CIRCLIP
99009-30400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE (0.9T)
90201-256K6-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING (B6205C4)
93306-20552-00
Superseded by 93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL
93102-32M07-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-25663-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPROCKET, DRIVE
93834-15078-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SPROCKET, DRIVE
93834-14051-00
|
$15.65 | ||
|
Unavailable |
|||
|
#
SPROCKET,DRIVE 13T
93834-13030-00
Superseded by 93834-13206-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, LOCK
90215-21239-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-20255-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE (T=1.0)
90201-20276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
