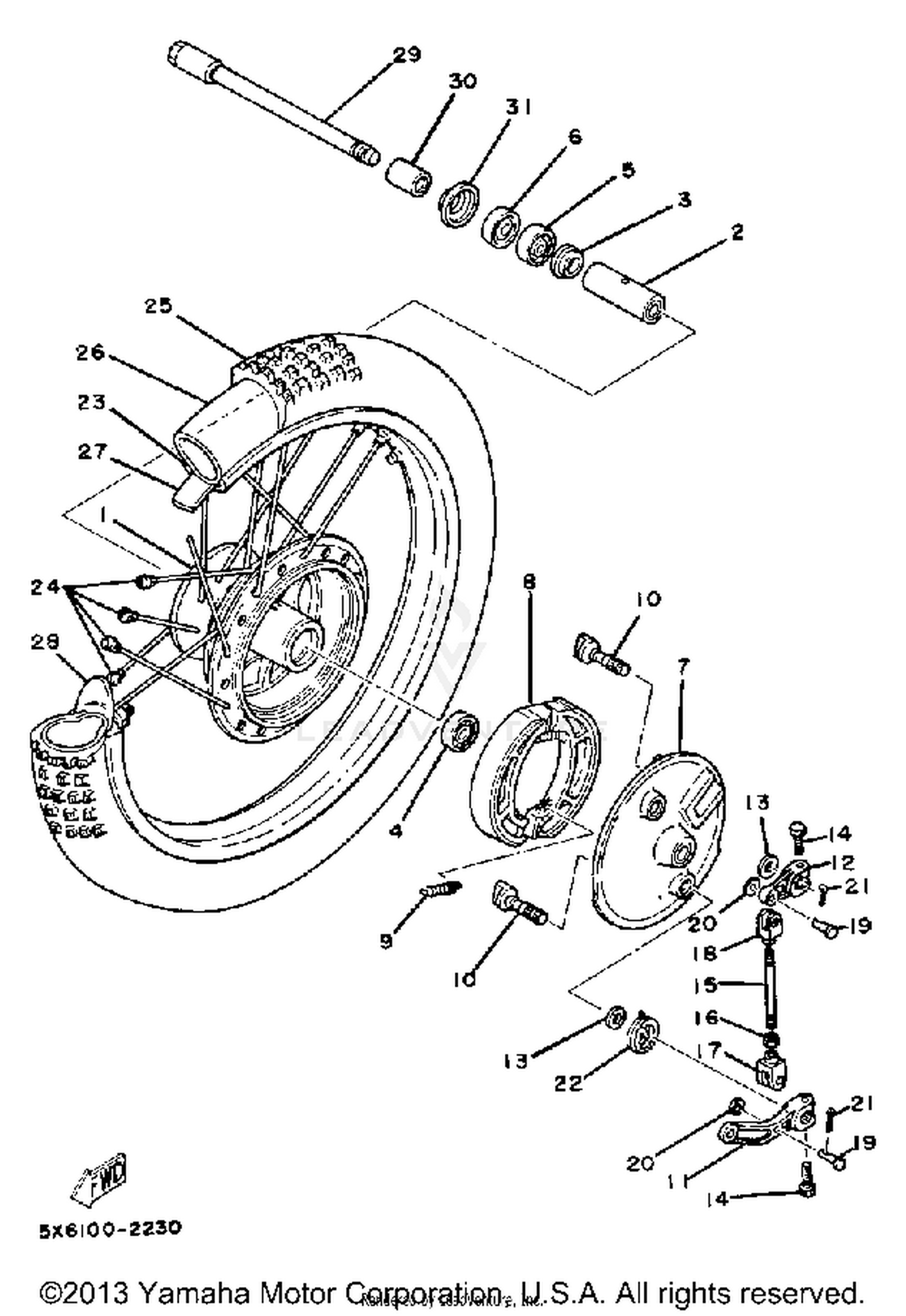

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
23X-25111-00-98
|
$187.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-15116-00
|
$13.99 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93102-20009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, BRAKE SHOE
5X6-25121-00-98
|
$120.99 | ||
|
Unavailable |
|||
|
#8
BRAKE SHOE KIT
3R5-W2535-00-00
Superseded by 4V4-W253A-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT
23X-25151-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#11
LEVER, CAMSHAFT
99999-02061-00
|
$30.99 | ||
|
Unavailable |
|||
|
#12
LEVER, CAMSHAFT 2
99999-02067-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
SEAL, CAMSHAFT
137-25159-00-00
|
$3.75 | ||
|
Unavailable |
|||
|
#14
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD, CONNECTING
3R5-25161-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
END, ROD 1
3R5-25163-00-00
Superseded by 152-25163-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#18
END, ROD 2
3R5-25164-00-00
Superseded by 152-25164-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#19
PIN, CLEVIS
90240-06006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TORSION
90508-20425-00
|
$3.10 | ||
|
Unavailable |
|||
|
#23
RIM 1.60X21
94416-21320-00
|
$298.99 | ||
|
Unavailable |
|||
|
#24
SPOKE SET, FRONT
2W6-25104-02-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
90/90-21 M2E 1RC
94109-210G1-00
|
$57.99 | ||
|
Unavailable |
|||
|
#26
TUBE
94230-21126-00
|
$6.99 | ||
|
Unavailable |
|||
|
#27
BAND, RIM
94330-21088-00
|
$3.16 | ||
|
Unavailable |
|||
|
#28
SPACER, BEAD
4V5-25194-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#29
AXLE, WHEEL
3R4-25181-01-00
|
$61.99 | ||
|
Unavailable |
|||
|
#30
COLLAR
90387-152J3-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, HUB DUST
322-25118-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
